流量型蠕動泵BT300K/泵頭YX1515x：流量與電機轉速同屏顯示，原裝蠕動泵

驅動器

適用泵頭

適用軟管

參考流量范圍（m1/min)









BT300K

MC-N(6滾輪）

0.5*0.8, 1*1, 2*1

2.4*0.8, 2.79*0.9

每通道0.002∽37

MC-N(10滾輪）

每通道0.001∽22.6

N*YZ1515x

13#,14#,16#,19#,25#,17#,18#,

每通道0.035∽1140

N*YZ1525x

15#,24#

每通道0.085∽870

YZ1515x

13#,14#,16#,19#,25#,17#,18#

0.035∽1140

YZ2515x

15#,24#

0.085∽870

DG-N(6滾輪）

0.5*0.8，1*1

2*1， 2.4*0.8

每通道0.002∽30

DG-N(10滾輪）

每通道0.001∽20

SN25

24#

0.17∽750

產品組成



主要功能和特點

● 大屏幕液晶，同屏顯示液體流量與電機轉速，試驗數據一目了然

● 具有流量校準功能，使得流量控制更加精確，適合高精度傳輸液體

● 中文操作系統，界面友好，您只需要輕按幾次“確認鍵”，其他的事情由系統自動完成，使用方便快捷

● 具有掉電記憶功能，及時存儲數據，安全可靠

● 可安裝多種泵頭： MC系列、YZ1515x、YZ2515x、DG系列

● 脈沖數碼旋鈕調速，操作方便，控制精度高，使用壽命長，確保高精度傳輸液體

● 設有全速按鍵，實現填充、排空功能

● 大扭矩，低功耗，可以串聯多個泵頭，或安裝多通道泵頭，滿足不同的應用場合

● 可以免費選配外控模塊，0-5V、0-10V、4-20 mA ，三種信號均可遠程控制泵的轉速，亦可通過開關信號控制泵的啟停

● 高性價比

● 不適于戶外應用

技術指標

轉速范圍

1～300rpm 正反轉可逆

速度分辨率

0.1rpm

調速方式

脈沖數碼旋鈕調速或全速

顯示方式

128*64型圖形點陣液晶顯示

外控接口

啟？刂啤⒎较蚩刂、速度控制（0～5V、0～10V、4～20mA可選）

適用電源

AC 220V±10%,50Hz/60Hz（標配） AC 110V±10%,50Hz/60Hz（選配）

消耗功率

＜50W

工作環境

溫度0～40℃, 相對濕度 < 80%

驅動器尺寸(L×W×H)

210×150×235 (mm)

驅動器重量

4.7Kg

防護等級

IP31



注釋：

    MC系列多通道泵頭，有1、2、3、4、5、6、8、10、12個通道可供選擇，N代表通道數，YZ系列泵頭有1、

    2、3、4個通道可供選擇，DG系列多通道泵頭，有1、2、4、6、8、12個通道可供選擇，在DG系列型號中，

    括號內的數值表示滾輪數。BT300K型驅動器凈重4.7kg

    例如：DG-2(10)表示 2通道，10滾輪。每增加一個通道,自重增加0.05kg

            2*YZ1515x 表示2個YZ1515x型泵頭串聯，形成兩個通道，每增加一個通道，自重增加0.4kg



該公司產品分類： 儀器耗材 行業專用儀器 潔凈室專用檢測儀器 薄層色譜 制備液相 離子色譜 液相色譜 氣相色譜 紫外|可見分光光度計 紅外光譜 原子熒光光譜 原子吸收光譜 光譜類儀器 色譜類儀器 環保監測 潔凈廠房工程 實驗室氣路|通風工程 實驗室家具工程 實驗室系統工程 色度|濁度|阿貝折射儀

75KW－－2500KW鎮江發電機出租鎮江出租柴油發電機組

專業從事發電機出租、出售業務，有大、中、小型充足的發電機資源，功率范圍：30KW-2500KW能隨時為廣大客戶提供國產及進口（大宇、康明斯、沃爾沃）品牌柴油發電機組，配備專業操作人員配合機組的發電，提供完善專業的發電機出租服務，的設備，的技術，可滿足用戶長短期用電；面向建筑工地，公路建設，地鐵施工，海上吹沙，單位供暖，商場備用，醫院應急......是多家企事業單位臨時供電的伙伴。

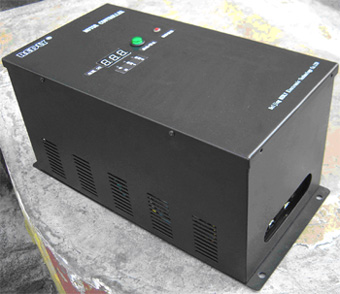

RED系列電機軟啟動器

RED系列電機軟啟動器：
一.軟啟動器知識點滴

　　軟起動器是一種集電機軟起動、軟停車、輕載節能和多種保護功能于一體的新穎電機控制裝置，國外稱為Soft Starter。它的主

要構成是串接于電源與被控電機之間的三相反并聯晶閘管及其電子控制電路。運用不同的方法，控制三相反并聯晶閘管的導通角，使
被控電機的輸入電壓按不同的要求而變化，就可實現不同的功能。
　　軟啟動器用于需降壓啟動和停止的場合。
二.RED系列電機軟啟動器產品簡介
　　我公司生產的RED系列電動機軟起動器采用現代進的數字集成技術，大大提高了各項技術性能指標，增強了性及穩定性，
極大地減小外形體積，使軟起動器象其它低壓電器一樣，安裝便利，使用方便。由于技術革命帶來的本產品成本的降低，使用戶能夠

以較低的產品價格獲得進的產品性能。

　　RED系列電動機軟起動器替代傳統的Y-△起動器、自耦降壓起動器、頻敏起動器，具有起動性能好、無觸點、節能和各

種完善的保護功能。
　　該產品用于三相異步電動機的軟起動、軟停止、實時監測和保護，也適用于輕負荷或動態負荷設備的節能。本產品廣泛應用于機
電、能源、交通、冶金、建筑、礦山、環保、消防、石油、化工等領域的電機拖動設備和泵類、風機、壓縮機、制冷設備、紡織機、

攪拌機、傳送帶等機電裝置配套使用，是傳統電機起動裝置理想的替代品。具有以下優良特性：

    ●　限制起動期間的電壓降，并降低電流峰值；
    ●　限制起動轉距以保護傳動機械；
    ●　平穩加速、減速或制動，保護設備和人員；
    ●　大慣性機械平穩起動、停車，適用于特殊機械負載、精密電機的保護；
    ●　應用于水泵類，可避免產生“水錘效應”。
三.RED系列電機軟啟動器主要性能及特點

　。1）電壓斜坡+限流起動工作方式。

　　（2）起動時間軟停時間由用戶自由設置。

　。3）短路保護、過流限流保護、缺相保護、相序故障保護，可使電機安全。

　。4）電機啟動電流和工作電流實時顯示。?

　。5）內附旁路接觸器，使得啟動器能耗降低，工作更加。

　。6）功率范圍：11-220KW。

（操作、顯示部分 放大圖）

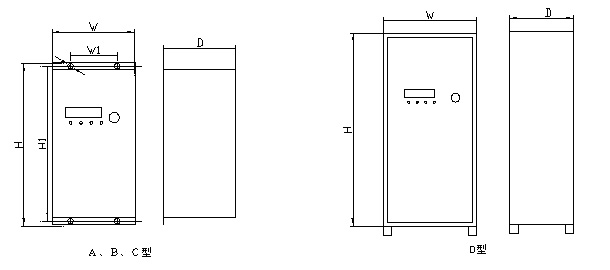

四.外形及安裝尺寸

型 號

電機功率(KW)

外形代碼

寬Wmm

高Hmm

厚Dmm

安裝寬度W1mm

安裝高度H1mm

安裝孔尺寸Фmm

RED-011A

11

A

185

382

175

100

366

8

RED-015A

15

RED-019A

18.5

RED-022A

22

RED-030A

30

RED-037B

37

B

225

452

210

120

436

8

RED-045B

45

RED-055B

55

RED-075B

75

RED-090C

90

C

285

552

265

160

526

10

RED-110C

110

RED-132C

132

RED-160D

160

D

500

1000

300

/

/

柜式

RED-185D

185

RED-200D

200

RED-220D

220



SGMGH-09ACA61安川伺服電機SGMGH-09ACA61

SGMGH-09ACA61    需 要 了 解 產 品 價 格 及 其 它 信 息；衷少平   13918313404.聊.Q-Q－－775426157  －－－－－－－－－-靈活運用爆發力,充分發揮機械性能迅速準確的傳遞,在準確性、速度等方面，擁有更高的技術水平對于機械性能，在高速相應性，高精度控制方面，具有更高的水準

   固－－話：

安川電機（YASKAWA ELECTRIC）是目前工業變頻器，交流伺服全球連續5年銷量第一，工業機器人連續三年全球第一的專業控制驅動產品生產商，安川電機的運動控制器，在日本占有率達60%以上.安川Σ-V系列在這樣的期待下應運而生。“伺服不經過調整就不能順利運行······”Σ-V系列配備的新型免調整功能，打破了這一常識，使伺服接通即可運行。“相要進一步發揮機械性能······”運用Σ-V的新型高級自動調諧功能，短時間內即可實現。而且，Σ-V系列采用了先進的技術，可以滿足各種需求，包括符合日本業內首創的安全標準、符合海外標準、擁有豐富的電機產品系列、實現小型化、高速化、簡單維護等。 SGMGH-05ACA61 + SGDM-05ADA   SGMGH-09ACA61 + SGDM-10ADA SGMGH-13ACA61  +  SGDM-15ADA

SGMGH-20ACA61  +  SGDM-20ADA    SGMGH-30ACA61  +  SGDM-30ADA   SGMGH-44ACA61  +  SGDM-50ADA

SGMGH-55ACA61  +  SGDM-60ADA   SGMGH-75ACA61  +  SGDM-75ADA  SGMGH-1AACA61  +  SGDM-1AADA   SGMGH-1EACA61  +  SGDM-1EADA     SGMAH-04AAA41  +  SGDM-04ADA         高速高響應特點：　1. 速度響應頻率最高達1KHz。同時具有高性能的機械適應性　2. 內置有瞬時速度觀測器，可以高速、高分辯率地檢測出電機的轉速！4. 無論是易產生共振的傳送帶驅動機械，還是高剛性的絲桿傳動機械，都可以高性能的自動調整功能來實現高速定位。  （三）低振動特點：　1. 不僅自適應濾波器。而且即使設置的振動頻率和濾波器的數值不確切，也不會導致不穩定狀況。　2. 內置自適應濾波器，可以根據機械共振頻率不同而自動地調整陷波濾波器的頻率。　3. 可以控制由于機械不穩定以及共振頻率變化而發生的噪音。同時還具有兩個陷波濾波器　4. 內置了不同于自適應濾波器的兩個獨立通道的濾波器。　5. 兩個陷波濾波器可以以1Hz為單位、分別設置陷波的頻率和幅度。　6. 內置了兩個通道的振動抑制濾波器，可以抑制剛性較低的機械在啟動和停止時生產的振動！7. 兩個通道的振動頻率，可以根據旋轉方向的不同而自動地切換；或者也可以分別對應于由于外部輸入信號切換而產生的機械位置變化而導致的振動頻率。松下A系列伺服電機一級代理，全新原裝，特價現貨，當天發貨，常用型號：

SGMGV-30ADA61 + SGDV-200A01A     SGMJV-04AAA6C + SGDV-2R8A01ASGMJV-08AAA61 + SGDV-5R5A01A     SGMJV-08AAA6C + SGDV-5R5A01A SGMGV-09ADA61 + SGDV-7R6A01A     SGMGV-09ADA6C + SGDV-7R6A01A

SGMGV-13ADA61 + SGDV-120A01A     SGMGV-13ADA6C + SGDV-120A01ASGMGV-20ADA61 + SGDV-180A01A     SGMGV-20ADA6C + SGDV-180A01A SGMGV-30ADA61 + SGDV-200A01A     SGMGV-30ADA6C + SGDV-200A01A

SGMGV-44ADA61 + SGDV-330A01A     SGMGV-44ADA6C + SGDV-330A01ASGMGV-55ADA61 + SGDV-470A01A     SGMGV-55ADA6C + SGDV-470A01ASGMGV-75ADA61 + SGDV-550A01A     SGMGV-75ADA6C + SGDV-550A01A

SGMGV-1AADA61 + SGDV-590A01A     SGMGV-1AADA6C + SGDV-590A01ASGMGV-1EADA61 + SGDV-780A01A     SGMGV-1EADA6C + SGDV-780A01A

安川Σ-V系列在這樣的期待下應運而生。“伺服不經過調整就不能順利運行······”Σ-V系列配備的新型免調整功能，打破了這一常識，使伺服接通即可運行。“相要進一步發揮機械性能······”運用Σ-V的新型高級自動調諧功能，短時間內即可實現。而且，Σ-V系列采用了先進的技術，可以滿足各種需求，包括符合日本業內首創的安全標準、符合海外標準、擁有豐富的電機產品系列、實現小型化、高速化、簡單維護等。

AC伺服電機HIWIN，AC伺服電機

                                產品名稱：AC伺服馬達產品介紹:AC伺服馬達特性說明:1 輸出功率[w]:馬達在額定扭矩、額定轉速下輸出之功率。2額定扭矩[Tc]:馬達在額定電流下產生之扭矩。3 額定轉速[ωc]:馬達在額定輸出功率下運轉之轉速。4 瞬時最大扭矩[Tp]:瞬間可輸出之最大扭矩，通常定為額定值的2~3倍。5 空載最大轉速[ωp]:馬達于空載情形下可運轉之最大轉速。6 瞬時最大電流[Ip]:產生瞬時最大扭矩之電流，通常定為額定值的2~3倍.

                              產品名稱：交流伺服馬達特色;1、高速、高轉矩2、低噪音與低振動3、高精度、高剛性4、配備齊全、最適化設計5、高信賴性（閉回路系統）6、效率高、馬達發熱程度 7、設計及安裝容易、體積小重量輕8、在額定轉速內、扭矩皆為額定扭矩應用領域1、工具機 2、FPD設備3、PCB設備4、EDM設備5、半導體設備6、自動化搬送7、食品機構設備8、醫療自動化產業9、檢測或試驗環境

                                 產品名稱：驅動器D2功能特性1、體積精巧2、15KHz全數位SVPWM控制3、支援串列，類比，PWM，Pulse/Direction，CW/CCW命令格式4、自動調整速度及位置回路參數5、獨特的背隙補償功能應用于螺桿及相關機構6、內建抑制震動功能7、具有誤差補償功能8、人性化圖控介面適用馬達.AC伺服馬達應用范圍1、FPD面板產業2、半導體產業3、自動化產業4、太陽能面板產業5、醫療產業6、雷射切割應用7、PCB產業8、AOI設備

                        產品名稱：伺服馬達與驅動器接線

記號               名稱                                                描述   1           交流電源輸入接頭                                  連接單、三相交流電源   2          馬達動力線接頭                                   連接至馬達、馬達三相動力電源   3           回生電阻接頭                                    連接至馬達回生電阻   4             邏輯電源/剎車接頭                                邏輯電源24V輸入與剎車輸出   5               RS232通訊接頭(CN1)                                連接至電腦   6                控制信號接頭(CN2)                                連接至上位控制器   7                回授信號接頭(CN3)                                連接至馬達之編碼器

                           產品名稱：驅動器D1產品介紹:功能特性:1、 全數位化空間向量電流控制2、 支援脈波命令PULSE / DIRECTION，CW / CCW，AB相3、 差動信號輸入，輸入解決雜訊問題4、 接收串列輸入、類比、脈寬調變5、 人性化圖控介面6、 自動調整馬達參數7、 內含路徑規劃，可獨立運作及透過主電腦架構控制8、 內建誤差補償器適用馬達:1、 直流無刷馬達、AC伺服馬達2、 線性馬達及DD馬達可連接回饋編碼器:1、 數位式編碼器2、 類比式編碼器3、 Resolver / Dual Resolver4、 SSI，EnDat，BiSS應用范圍:1、 FPD面板產業2、 半導體產業3、 自動化產業4、 太陽能面板產業5、 醫療產業6、 雷射切割應用7、 電路板產業8、 AOI設備                               產品名稱：電梯馬達

產品介紹:無機房式電梯馬達.HIWIN無齒輪式.同步馬達設計非常簡潔、重量輕，同時具有運轉安靜、可控制性佳之特色，為電梯馬達選用之最佳方案。特點;無齒輪式同步馬達.簡潔設計.運轉安靜.適用於所有通用控制器.運行平穩效益;安裝成本效益.節省空間設計.能源成本較低.應用范圍.家庭式電梯.現代化電梯.載貨用電梯

該公司產品分類： 中國上海杰牌 德國快速夾具 傳動控制與系統科技

三相步進電機和功率電子

三相步進電機和功率電子都適用于我公司的電腦數控控制器。電機扭矩為2～15Nm，速為：1000U/MIN。我們所提供的功率電子器件，安裝方式可以是以在墻上單軸或雙軸安裝，或者作為插件安插在19寸支柱上。我們還為多軸系統生產了19寸插座，我們根據客戶各自的要求，為其量身定做。

美孚寶力達EM電機馬達軸承調配的潤滑脂，美孚寶力達EM潤滑脂

 特性

·擁有優異的潤滑脂使用壽命。

·擁有先進的聚脲增稠劑配方。

·具有出色的防腐蝕性。

·具有非常安靜的低噪聲特性。

折疊編輯本段應用

應用于電機馬達的軸承、風機軸承、高溫泵的軸承、工廠填充的、永久密封的滾珠軸承等等。

·在高溫運行條件下，要求低分油特性的滾珠或滾柱軸承。

·要求在低噪音環境中運行的滾珠或滾柱軸承。

折疊編輯本段典型數據

產品名稱

增稠劑類型

顏色 目視

穿透率

粘度cSt

NLGI等級

40℃

Mobil Polyrex EM

－－

藍色

285

115

2



深圳市大昌行科技潤滑油有限公司是從事專業銷售和批發司是以“薄利多銷求生存，優質服務求信益”為經營理念。“質量第一，顧客至上，送貨快捷”為宗旨。以最低的價格，最優的服務贏得您的信賴;長期供應機械設備油、金屬加工油、特種潤滑脂等：福斯潤滑油、美孚潤滑油、殼牌潤滑油、加德士潤滑油，嘉實多潤滑油，BP潤滑油。如：抗磨液壓油，發電機油，導軌油，切削油，傳熱油，齒輪油，防銹油，白礦油，火花機油，空壓機油，紡織機油,淬火油,渦輪機油,真空泵油，乳化油，柴油機油系列。業務范圍涵蓋電力、冶煉、造船、汽車、家電、航運、造紙、物流運輸等。產品品種齊全、備貨充足，可以隨時滿足市場需求。聯系方式      QQ；聯系方式：       聯系方式T譚先生客戶服務1.服務承諾:銷售人員的任務是為用戶提供質量可靠的潤滑油及相關產品的優質服務。2.我們致力于維護工作現場的安全和環境保護，并遵守最高道德標準。3.我們努力地提供獨特的產品和高水平的服務。4.無棄權方針（意即：我們不會有意地為客戶提供任何未達到產品規格及客戶要求的產品）在相互信任的基礎上，我們尋求與客戶及供應商建立長期、穩定的關系。5.質量承諾：隨時為客戶提供產品和雙方約定的服務。6.充分領會工作要求、盡職盡責、永無例外。竭盡全力，持續發展7.新客戶可以先與我們的業務員了解產品的情況，洽談好后可以讓我們的業務員做份合同傳真給客戶，待客戶蓋章回傳之后，把款打入我司相關銀行賬號，匯款之后及時通知相關業務員，以免耽誤發貨時間
該公司產品分類： 沃爾沃 殼牌 昆侖 克魯勃 美孚超級黑霸王柴機油 美孚潤滑油

EMERSON 電機

聯系電話: 15821119701

聯系人:魏生       電子郵箱:weiyangtao@shhuihanauto.com    工作QQ:672652703

 SE11200025  Commander SE （Size 1）, 0.33hp, 230Vac, 1? Input - 3? Output, 1.5A Cont. Output Current, Nema 1

SE11200037 Commander SE （Size 1）, 0.50hp, 230Vac, 1? Input - 3? Output, 2.3A Cont. Output Current, Nema 1
SE11200055  Commander SE （Size 1）, 0.75hp, 230Vac, 1? Input - 3? Output, 3.1A Cont. Output Current, Nema 1
SE11200075 Commander SE （Size 1）, 1hp, 230Vac, 1? Input - 3? Output, 4.3A Cont. Output Current, Nema 1
SE232001-N1  Commander SE ExpressPak, 1hp, 230V - 3?, 3.8 Amps, Nema 1
SE232001-N12  Commander SE ExpressPak, 1hp, 230V - 3?, 3.8 Amps, Nema 12
SE232002-N1  Commander SE ExpressPak, 2hp, 230V - 3?, 5.6 Amps, Nema 1
SE232002-N12 Commander SE ExpressPak, 2hp, 230V - 3?, 5.6 Amps, Nema 12
SE232003-N1 Commander SE ExpressPak, 3hp, 230V - 3?, 9.5 Amps, Nema 1
SE232003-N12  Commander SE ExpressPak, 3hp, 230V - 3?, 9.5 Amps, Nema 12
SE23200400  Commander SE （Size 2）, 5hp, 230V - 3?, 17A Cont. Output Current, Nema 1
SE232005-N1  Commander SE ExpressPak, 5hp, 230V - 3?, 12.0 Amps, Nema 1
SE232005-N12 Commander SE ExpressPak, 5hp, 230V - 3?, 12.0 Amps, Nema 12
SE23400075  Commander SE （Size 2）, 1hp, 460V - 3?, 2.1A Cont. Output Current, Nema 1
SE23400150 Commander SE （Size 2）, 2hp, 460V - 3?, 4.2A Cont. Output Current, Nema 1
SE234001-N1 Commander SE ExpressPak, 1hp, 480V - 3?, 2.1 Amps, Nema 1
SE234001-N12 Commander SE ExpressPak, 1hp, 480V - 3?, 2.1 Amps, Nema 12
SE23400220  Commander SE （Size 2）, 3hp, 460V - 3?, 5.8A Cont. Output Current, Nema 1
SE234002-N1 Commander SE ExpressPak, 2hp, 480V - 3?, 2.8 Amps, Nema 1
SE234002-N12  Commander SE ExpressPak, 2hp, 480V - 3?, 2.8 Amps, Nema 12
SE234003-N1 Commander SE ExpressPak, 3hp, 480V - 3?, 3.8 Amps, Nema 1
SE234003-N12 Commander SE ExpressPak, 3hp, 480V - 3?, 3.8 Amps, Nema 12
SE23400400  Commander SE （Size 2）, 5hp, 460V - 3?, 9.5A Cont. Output Current, Nema 1
SE234005-N1  Commander SE ExpressPak, 5hp, 480V - 3?, 5.6 Amps, Nema 1
SE234005-N12  Commander SE ExpressPak, 5hp, 480V - 3?, 5.6 Amps, Nema 12
SE2D200075 Commander SE （Size 2）, 1hp, 230Vac, 1? or 3? Input - 3? Output, 4.3A Cont. Output Current, Nema 1
SE2D200150 Commander SE （Size 2）, 2hp, 230Vac, 1? or 3? Input - 3? Output, 7.5A Cont. Output Current, Nema 1
SE2D200220 Commander SE （Size 2）, 3hp, 230Vac, 1? or 3? Input - 3? Output, 10.6A Cont. Output Current, Nema 1
SE2WE Extends standard warranty to 5 Years on Commander SE - Size 2
SE33200550 Commander SE （Size 3）, 7.5hp, 230V - 3?, 25A Cont. Output Current, Nema 1
SE33200750  Commander SE （Size 3）, 10hp, 230V - 3?, 28.5A Cont. Output Current, Nema 1
SE332007-N1 Commander SE ExpressPak, 7.5hp, 230V - 3?, 16.0 Amps, Nema 1
SE332007-N12 Commander SE ExpressPak, 7.5hp, 230V - 3?, 16.0 Amps, Nema 12
SE332010-N1  Commander SE ExpressPak, 10hp, 230V - 3?, 25 Amps, Nema 1
SE332010-N12 Commander SE ExpressPak, 10hp, 230V - 3?, 25 Amps, Nema 12
SE33400550 Commander SE （Size 3）, 7.5hp, 460V - 3?, 13A Cont. Output Current, Nema 1
SE33400750  Commander SE （Size 3）, 10hp, 460V - 3?, 16.5A Cont. Output Current, Nema 1
SE334007-N1 Commander SE ExpressPak, 7.5hp, 480V - 3?, 9.5 Amps, Nema 1
SE334007-N12  Commander SE ExpressPak, 7.5hp, 480V - 3?, 9.5 Amps, Nema 12
SE334010-N1  Commander SE ExpressPak, 10hp, 480V - 3?, 12 Amps, Nema 1
SE334010-N12  Commander SE ExpressPak, 10hp, 480V - 3?, 12 Amps, Nema 12
SE3WE Extends standard warranty to 5 Years on Commander SE - Size 3
SE43401100 Commander SE （Size 4）, 15hp, 460V - 3?, 24.5A Cont. Output Current, Nema 1
SE43401500 Commander SE （Size 4）, 20hp, 460V - 3?, 30.5A Cont. Output Current, Nema 1
SE434015-N1  Commander SE ExpressPak, 15hp, 480V - 3?, 16 Amps, Nema 1
SE434015-N12 Commander SE ExpressPak, 15hp, 480V - 3?, 16 Amps, Nema 12
SE43401850 Commander SE （Size 4）, 25hp, 460V - 3?, 37A Cont. Output Current, Nema 1
SE434020-N1 Commander SE ExpressPak, 20hp, 480V - 3?, 25 Amps, Nema 1
SE434020-N12 Commander SE ExpressPak, 20hp, 480V - 3?, 25 Amps, Nema 12
SE4WE  Extends standard warranty to 5 Years on Commander SE - Size 4
SE51 Bi-polar speed reference input card （Commander SE）
SE51-UG  SE51 Card User Guide
SE53402200  Commander SE （Size 5）, 30hp, 460V - 3?, 46A Cont. Output Current, Nema 1
SE534025-N1 Commander SE ExpressPak, 25hp, 480V - 3?, 37 Amps, Nema 1
SE534025-N12 Commander SE ExpressPak, 25hp, 480V - 3?, 37 Amps, Nema 12
SE53403000  Commander SE （Size 5）, 40hp, 460V - 3?, 60A Cont. Output Current, Nema 1
SE534030-N1 Commander SE ExpressPak, 30hp, 480V - 3?, 46 Amps, Nema 1
SE534030-N12  Commander SE ExpressPak, 30hp, 480V - 3?, 46 Amps, Nema 12
SE53403700 Commander SE （Size 5）, 50hp, 460V - 3?, 70A Cont. Output Current, Nema 1
SE534040-N1 Commander SE ExpressPak, 40hp, 480V - 3?, 60 Amps, Nema 1
SE534040-N12 Commander SE ExpressPak, 40hp, 480V - 3?, 60 Amps, Nema 12
SE534050-N1  Commander SE ExpressPak, 50hp, 480V - 3?, 70 Amps, Nema 1
SE534050-N12  Commander SE ExpressPak, 50hp, 480V - 3?, 70 Amps, Nema 12
SE55 Quickey / Cloning Module （Commander SE）
SE73 Profibus-DP interface card （Commander SE）
SE73-UG SE73 （Profibus-DP） User Guide
SE74 Interbus-S interface card （Commander SE）
SE77CO  CANOpen interface card （Commander SE）
SE77CO-UG SE77CO （CANOpen） User Guide
SE77DN DeviceNet interface card （Commander SE）
SE77DN-UG SE77DN （DeviceNet） User Guide
SE-UG  Commander SE Users Guide
SM-CANOPEN  CANOpen Solutions Module
SM-CANOPEN  CANOpen Solutions Module
SM-CANOPEN CANOpen Solutions Module
SMCO-UG SM-CANOpen User Guide
SM-DAC SM Fan ａnd Pump Duty-Assist Preprogrammed Option Module
SM-DEVICENET  DeviceNet Solutions Module
SM-DEVICENET DeviceNet Solutions Module
SM-DEVICENET DeviceNet Solutions Module
SMDN-UG SM-DeviceNet User Guide
SM-ENCODER PLUS Encoder Plus Solutions Module, provides an additional incremental encoder feedback port.
SMEP-UG SM-Encoder Plus User Guide
SM-ETC 15 Pin D Shell to 15 pin screw terminal break out board for servo ａnd vector motor encoder feedback cable
SM-ETHERNET Ethernet TCP/IP Solutions Module
SM-ETHERNET Ethernet TCP/IP Solutions Module
SM-ETHERNET Ethernet TCP/IP Solutions Module
SM-EZMOTION  Motion Made Easy Solutions Module, Utilizing PowerTools programming software
SMEZ-UG  SM-EZMotion User Guide
SM-FSC SM Flying Shear Control Preprogrammed Option Module
SM-HEATSINK DBR1 Braking Resistor, 75 Ohm, 50 Watt, Heatsink mount for Unidrive SP size 1
SM-HEATSINK DBR2  Braking Resistor, 37.5 Ohm, 100 Watt, Heatsink mount for Unidrive SP size 2
SM-I/O LITE I/O Lite Solutions Module - （1） +/- 10V Bi-polar or 4-20mA input, （3） digital inputs, （1） 0-10V or 4-20mA output, （1） relay output, （1） Incremental Encoder Speed Reference input
SM-I/O LITE  I/O Lite Solutions Module - （1） +/- 10V Bi-polar or 4-20mA input, （3） digital inputs, （1） 0-10V or 4-20mA output, （1） relay output, （1） Incremental Encoder Speed Reference input
SM-I/O LITE I/O Lite Solutions Module - （1） +/- 10V Bi-polar or 4-20mA input, （3） digital inputs, （1） 0-10V or 4-20mA output, （1） relay output, （1） Incremental Encoder Speed Reference input
SM-I/O PLUS I/O Solutions Module, High Performance, （2） +/- 10V analog input, （1） +/- 10V output, （3） digital inputs, （3） programmable digital I/O, （2） relay output,
SM-I/O TIMER I/O Lite Solutions Module w/real time clock for scheduling events, （1） +/- 10V Bi-polar or 4-20mA input, （3） digital inputs, （1） 0-10V or 4-20mA output, （1） relay output, （1） Incl Enc Spd Ref input
SM-I/O TIMER I/O Lite Solutions Module w/real time clock for scheduling events, （1） +/- 10V Bi-polar or 4-20mA input, （3） digital inputs, （1） 0-10V or 4-20mA output, （1） relay output, （1） Incl Enc Spd Ref input
SM-I/O TIMER  I/O Lite Solutions Module w/real time clock for scheduling events, （1） +/- 10V Bi-polar or 4-20mA input, （3） digital inputs, （1） 0-10V or 4-20mA output, （1） relay output, （1） Incl Enc Spd Ref input
SMIB-UG SM-Interbus-S User Guide
SM-INTERBUS Interbus-S Solutions Module
SM-INTERBUS Interbus-S Solutions Module
SM-INTERBUS Interbus-S Solutions Module
SM-KEYPAD LED Keypad, 7 digit LED data display, Configured for Unidrive SP
SM-KEYPAD PLUS  LCD Keypad, back-lit, dual language, on-screen help, remote mountable
SMPB-UG  SM-Profibus User Guide
SM-PELV PELV Solutions Module - Isolated I/O to NAMUR NE37 specification for chemical industry applications
SM-PELV  PELV Solutions Module - Isolated I/O to NAMUR NE37 specification for chemical industry applications
SM-PELV  PELV Solutions Module - Isolated I/O to NAMUR NE37 specification for chemical industry applications
SM-PROFIBUS  Profibus-DP Solutions Module - Fieldbus Option Only
SM-PROFIBUS Profibus-DP Solutions Module - Fieldbus Option Only
SM-PROFIBUS Profibus-DP Solutions Module - Fieldbus Option Only
SM-RESOLVER Resolver Solutions Module, providing a resolver feedback port, w/simulated encoder output
SM-SERCOS SERCOS Solutions Module
SM-SLM SLM Solutions Module
SMUE-UG SM-Uni Encoder User Guide
SM-UNI ENCODER Universal Encoder Plus Solutions Module, provides an additional increamental or Absolute encoder feedback port ａnd simulated encoder output.
SM-Winder SM Speed ａnd Torque Based Centerwind Preprogrammed Option Module
SNCDD-001.5 Sync in/out cable, 7 Pin Mini-DIN connector on one end ａnd an 8 Pin Mini -DIN connector on the other, 1.5 ft Length （FM3/4 to FM3/4）
SP1201-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 5.2A （1.5hp）, Heavy Duty - 4.3A （1hp）
SP1201-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 5.2A （1.5hp）, Heavy Duty - 4.3A （1hp）
SP1201-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 5.2A （1.5hp）, Heavy Duty - 4.3A （1hp）
SP1202-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 6.8A （2hp）, Heavy Duty - 5.8A （1.5hp）
SP1202-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 6.8A （2hp）, Heavy Duty - 5.8A （1.5hp）
SP1202-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 6.8A （2hp）, Heavy Duty - 5.8A （1.5hp）
SP1203-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 9.6A （3hp）, Heavy Duty - 7.5A （2hp）
SP1203-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 9.6A （3hp）, Heavy Duty - 7.5A （2hp）
SP1203-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 9.6A （3hp）, Heavy Duty - 7.5A （2hp）
SP1204-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 11A （3hp）, Heavy Duty - 10.6A （3hp）
SP1204-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 11A （3hp）, Heavy Duty - 10.6A （3hp）
SP1204-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 11A （3hp）, Heavy Duty - 10.6A （3hp）
SP1401-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 2.8A （1.5hp）, Heavy Duty - 2.1A （1hp）
SP1401-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 2.8A （1.5hp）, Heavy Duty - 2.1A （1hp）
SP1401-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 2.8A （1.5hp）, Heavy Duty - 2.1A （1hp）
SP1402-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 3.8A （2hp）, Heavy Duty - 3.0A （2hp）
SP1402-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 3.8A （2hp）, Heavy Duty - 3.0A （2hp）
SP1402-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 3.8A （2hp）, Heavy Duty - 3.0A （2hp）
SP1403-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 5.0A （3hp）, Heavy Duty - 4.2A （3hp）
SP1403-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 5.0A （3hp）, Heavy Duty - 4.2A （3hp）
SP1403-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 5.0A （3hp）, Heavy Duty - 4.2A （3hp）
SP1404-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 6.9A （5hp）, Heavy Duty - 5.8A （3hp）
SP1404-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 6.9A （5hp）, Heavy Duty - 5.8A （3hp）
SP1404-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 6.9A （5hp）, Heavy Duty - 5.8A （3hp）
SP1405-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 8.8A （5hp）, Heavy Duty - 7.6A （5hp）
SP1405-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 8.8A （5hp）, Heavy Duty - 7.6A （5hp）
SP1405-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 8.8A （5hp）, Heavy Duty - 7.6A （5hp）
SP1406-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 11A （7.5hp）, Heavy Duty - 9.5A （5hp）
SP1406-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 11A （7.5hp）, Heavy Duty - 9.5A （5hp）
SP1406-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 11A （7.5hp）, Heavy Duty - 9.5A （5hp）
SP1WE Extends standard warranty to 5 Years on Unidrive SP - Size 1
SP2201-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 15.5A （5hp）, Heavy Duty - 12.6A （3hp）
SP2201-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 15.5A （5hp）, Heavy Duty - 12.6A （3hp）
SP2201-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 15.5A （5hp）, Heavy Duty - 12.6A （3hp）
SP2202-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 22A （7.5hp）, Heavy Duty - 17A （5hp）
SP2202-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 22A （7.5hp）, Heavy Duty - 17A （5hp）
SP2202-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 22A （7.5hp）, Heavy Duty - 17A （5hp）
SP2203-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 28A （10hp）, Heavy Duty - 25A （7.5hp）
SP2203-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 28A （10hp）, Heavy Duty - 25A （7.5hp）
SP2203-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 28A （10hp）, Heavy Duty - 25A （7.5hp）
SP2401-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 15.3A （10hp）, Heavy Duty - 13A （10hp）
SP2401-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 15.3A （10hp）, Heavy Duty - 13A （10hp）
SP2401-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 15.3A （10hp）, Heavy Duty - 13A （10hp）
SP2402-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 21A （15hp）, Heavy Duty - 16.5A （10hp）
SP2402-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 21A （15hp）, Heavy Duty - 16.5A （10hp）
SP2402-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 21A （15hp）, Heavy Duty - 16.5A （10hp）
SP2403-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 29A （20hp）, Heavy Duty - 25A （20hp）
SP2403-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 29A （20hp）, Heavy Duty - 25A （20hp）
SP2403-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 29A （20hp）, Heavy Duty - 25A （20hp）
SP2WE Extends standard warranty to 5 Years on Unidrive SP - Size 2
SP3201-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 42A （15hp）, Heavy Duty - 31A （10hp）
SP3201-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 42A （15hp）, Heavy Duty - 31A （10hp）
SP3201-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 42A （15hp）, Heavy Duty - 31A （10hp）
SP3202-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 54A （20hp）, Heavy Duty - 42A （15hp）
SP3202-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 54A （20hp）, Heavy Duty - 42A （15hp）
SP3202-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 54A （20hp）, Heavy Duty - 42A （15hp）
SP3401-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 35A （25hp）, Heavy Duty - 32A （25hp）
SP3401-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 35A （25hp）, Heavy Duty - 32A （25hp）
SP3401-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 35A （25hp）, Heavy Duty - 32A （25hp）
SP3402-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 43A （30hp）, Heavy Duty - 40A （30hp）
SP3402-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 43A （30hp）, Heavy Duty - 40A （30hp）
SP3402-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 43A （30hp）, Heavy Duty - 40A （30hp）
SP3403-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 56A （40hp）, Heavy Duty - 46A （30hp）
SP3403-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 56A （40hp）, Heavy Duty - 46A （30hp）
SP3403-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 56A （40hp）, Heavy Duty - 46A （30hp）
SP3501-LCD Unidrive SP with LCD Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 5.4A （3hp）, Heavy Duty - 4.1A （2hp）
SP3501-LED Unidrive SP with LED Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 5.4A （3hp）, Heavy Duty - 4.1A （2hp）
SP3501-NKP Unidrive SP without Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 5.4A （3hp）, Heavy Duty - 4.1A （2hp）
SP3502-LCD Unidrive SP with LCD Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 6.1A （5hp）, Heavy Duty - 5.4A （3hp）
SP3502-LED Unidrive SP with LED Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 6.1A （5hp）, Heavy Duty - 5.4A （3hp）
SP3502-NKP Unidrive SP without Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 6.1A （5hp）, Heavy Duty - 5.4A （3hp）
SP3503-LCD Unidrive SP with LCD Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 8.4A （7.5hp）, Heavy Duty - 6.1A （5hp）
SP3503-LED Unidrive SP with LED Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 8.4A （7.5hp）, Heavy Duty - 6.1A （5hp）
SP3503-NKP Unidrive SP without Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 8.4A （7.5hp）, Heavy Duty - 6.1A （5hp）
SP3504-LCD Unidrive SP with LCD Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 11A （10hp）, Heavy Duty - 9.5A （7.5hp）
SP3504-LED Unidrive SP with LED Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 11A （10hp）, Heavy Duty - 9.5A （7.5hp）
SP3504-NKP Unidrive SP without Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 11A （10hp）, Heavy Duty - 9.5A （7.5hp）
SP3505-LCD Unidrive SP with LCD Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 16A （15hp）, Heavy Duty - 12A （10hp）
SP3505-LED Unidrive SP with LED Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 16A （15hp）, Heavy Duty - 12A （10hp）
SP3505-NKP Unidrive SP without Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 16A （15hp）, Heavy Duty - 12A （10hp）
SP3506-LCD Unidrive SP with LCD Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 22A （20hp）, Heavy Duty - 18A （15hp）
SP3506-LED Unidrive SP with LED Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 22A （20hp）, Heavy Duty - 18A （15hp）
SP3506-NKP Unidrive SP without Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 22A （20hp）, Heavy Duty - 18A （15hp）
SP3507-LCD Unidrive SP with LCD Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 27A （25hp）, Heavy Duty - 22A （20hp）
SP3507-LED Unidrive SP with LED Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 27A （25hp）, Heavy Duty - 22A （20hp）
SP3507-NKP Unidrive SP without Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 27A （25hp）, Heavy Duty - 22A （20hp）
SP3WE Extends standard warranty to 5 Years on Unidrive SP - Size 3
SP4201-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 68A （25hp）, Heavy Duty - 56A （20hp）
SP4201-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 68A （25hp）, Heavy Duty - 56A （20hp）
SP4201-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 68A （25hp）, Heavy Duty - 56A （20hp）
SP4202-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 80A （30hp）, Heavy Duty - 68A （25hp）
SP4202-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 80A （30hp）, Heavy Duty - 68A （25hp）
SP4202-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 80A （30hp）, Heavy Duty - 68A （25hp）
SP4203-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 104A （40hp）, Heavy Duty - 80A （30hp）
SP4203-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 104A （40hp）, Heavy Duty - 80A （30hp）
SP4203-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 104A （40hp）, Heavy Duty - 80A （30hp）
SP4401-LCD Unidrive SP with LCD Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty - 68A （50hp）, Heavy Duty - 60A （50hp）
SP4401-LED Unidrive SP with LED Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty - 68A （50hp）, Heavy Duty - 60A （50hp）
SP4401-NKP Unidrive SP without Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty - 68A （50hp）, Heavy Duty - 60A （50hp）
SP4402-LCD Unidrive SP with LCD Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty - 83A （60hp）, Heavy Duty - 74A （60hp）
SP4402-LED Unidrive SP with LED Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty - 83A （60hp）, Heavy Duty - 74A （60hp）
SP4402-NKP Unidrive SP without Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty - 83A （60hp）, Heavy Duty - 74A （60hp）
SP4403-LCD Unidrive SP with LCD Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty -104A （75hp）, Heavy Duty -96A （75hp）
SP4403-LED Unidrive SP with LED Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty -104A （75hp）, Heavy Duty -96A （75hp）
SP4403-NKP Unidrive SP without Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty -104A （75hp）, Heavy Duty -96A （75hp）
SP4601-LCD Unidrive SP with LCD Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 22A （20/25hp）, Heavy Duty - 18A （15/20hp）
SP4601-LED Unidrive SP with LED Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 22A （20/25hp）, Heavy Duty - 18A （15/20hp）
SP4601-NKP Unidrive SP without Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 22A （20/25hp）, Heavy Duty - 18A 15/20hp）
SP4602-LCD Unidrive SP with LCD Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 27A （25/30hp）, Heavy Duty - 22A （20/25hp）
SP4602-LED Unidrive SP with LED Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 27A （25/30hp）, Heavy Duty - 22A （20/25hp）
SP4602-NKP Unidrive SP without Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 27A （25/30hp）, Heavy Duty - 22A （20/25hp）
SP4603-LCD Unidrive SP with LCD Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 36A （30/40hp）, Heavy Duty - 27A （25/30hp）
SP4603-LED Unidrive SP with LED Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 36A （30/40hp）, Heavy Duty - 27A （25/30hp）
SP4603-NKP Unidrive SP without Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 36A （30/40hp）, Heavy Duty - 27A （25/30hp）
SP4604-LCD Unidrive SP with LCD Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 43A （40/50hp）, Heavy Duty - 36A （40hp）
SP4604-LED Unidrive SP with LED Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 43A （40/50hp）, Heavy Duty - 36A （30/40hp）
SP4604-NKP Unidrive SP without Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 43A （40/50hp）, Heavy Duty - 36A （30/40hp）
SP4605-LCD Unidrive SP with LCD Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 52A （50/60hp）, Heavy Duty - 43A （40/50hp）
SP4605-LED Unidrive SP with LED Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 52A （50/60hp）, Heavy Duty - 43A （40/50hp）
SP4605-NKP Unidrive SP without Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 52A （50/60hp）, Heavy Duty - 43A （40/50hp）
SP4606-LCD Unidrive SP with LCD Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 62A （60/74hp）, Heavy Duty - 52A （50/60hp）
SP4606-LED Unidrive SP with LED Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 62A （60/74hp）, Heavy Duty - 52A （50/60hp）
SP4606-NKP Unidrive SP without Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 62A （60/75hp）, Heavy Duty - 52A （50/60hp）
SP4WE Extends standard warranty to 5 Years on Unidrive SP - Size 4
SP5401-LCD Unidrive SP with LCD Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty -138A （100P）, Heavy Duty -124A （100hp）
SP5401-LED Unidrive SP with LED Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty -138A （100P）, Heavy Duty -124A （100hp）
SP5401-NKP Unidrive SP without Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty -138A （100P）, Heavy Duty -124A （100hp）
SP5402-LCD Unidrive SP with LCD Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty -168A （125P）, Heavy Duty -156A （125hp）
SP5402-LED Unidrive SP with LED Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty -168A （125P）, Heavy Duty -156A （125hp）
SP5402-NKP Unidrive SP without Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty -168A （125P）, Heavy Duty -156A （125hp）
SP5601-LCD Unidrive SP with LCD Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 84A （75/100hp）, Heavy Duty - 62A （75hp）
SP5601-LED Unidrive SP with LED Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 84A （75/100hp）, Heavy Duty - 62A （60/75hp）
SP5601-NKP Unidrive SP without Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 84A （75/100hp）, Heavy Duty - 62A （60/75hp）
SP5602-LCD Unidrive SP with LCD Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 99A （100/125hp）, Heavy Duty - 84A （100hp）
SP5602-LED Unidrive SP with LED Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 99A （100/125hp）, Heavy Duty - 84A （100hp）
SP5602-NKP Unidrive SP without Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 99A （100/125hp）, Heavy Duty - 84A （75/100hp）
SX13200075PB Commander SX, 1.0hp, 230Vac, 3 Input - 3 Output, 4.4A Cont. Output Current, Nema 4X
SX13400075PB Commander SX, 1.0hp, 460Vac, 3 Input - 3 Output, 2.2A Cont. Output Current, Nema 4X
SX13400150PB Commander SX, 2.0hp, 460Vac, 3 Input - 3 Output, 4.4A Cont. Output Current, Nema 4X
SX1WE Extends standard warranty to 5 Years on Commander SX - Size 1
SX23200150PB Commander SX, 2.0hp, 230Vac, 3 Input - 3 Output, 8.0A Cont. Output Current, Nema 4X
SX23200220PB Commander SX, 3.0hp, 230Vac, 3 Input - 3 Output, 10.0A Cont. Output Current, Nema 4X
SX23400220PB Commander SX, 3.0hp, 460Vac, 3 Input - 3 Output, 6.1A Cont. Output Current, Nema 4X
SX23400400PB Commander SX, 5.0hp, 460Vac, 3 Input - 3 Output, 10.0A Cont. Output Current, Nema 4X
SX2WE Extends standard warranty to 5 Years on Commander SX - Size 2
SX33200400PB Commander SX, 5.0hp, 230Vac, 3 Input - 3 Output, 16.9A Cont. Output Current, Nema 4X
SX33400550PB Commander SX, 7.5hp, 460Vac, 3 Input - 3 Output, 13.6A Cont. Output Current, Nema 4X
SX33400750PB Commander SX, 10.0hp, 460Vac, 3 Input - 3 Output, 16.9A Cont. Output Current, Nema 4X
SX3WE Extends standard warranty to 5 Years on Commander SX - Size 3
SXSOFT Windows based configuration tool for the Commander SX
SYPT-LITE Programming tool for drive＇s with built in PLC capability ａnd SM-Apps Lite Module
SYPT-LITE Programming tool for drive＇s with built in PLC capability ａnd SM-Apps Lite Module
SYPTPRO Coprocessor module programming ａnd CTNet system configuration tool, Software registration required
SYPTPRO Coprocessor module programming ａnd CTNet system configuration tool, Software registration required
T-21 Data Entry Terminal - used w/ either FX or PCM 535 for editing ａnd displaying simple motion parameters
T-60 PC based operator interface keyboard ａnd display terminal, 8 I/O,  9-32 VDC, 9 pin comm. conn. 64k Std
T-61 Enhanced PC based operator interface keyboard ａnd display terminal, 24 I/O,  95-145 Vac, 25 pin communication connector 32k Standard
TD-10 RS-232, DB-9 male to DB-9 male, 10 ft Length
TD-25 RS-232, DB-9 male to DB-9 male, 25 ft Length
TD-50 RS-232, DB-9 male to DB-9 male, 50 ft Length
TD-xxx RS-232, DB-9 male to DB-9 male, Custom Length - 1 ft increments
TERM-H Terminator Block for head of serial string （EN,Epsilon, MDS）
TERM-T Terminator Block for tail of serial string （EN, Epsilon, MDS）
TIA-10 RS232 Serial Interface Molded Cable, DB9-S on computer end, DB9-P on drive end, 10 ft Length （EN, Epsilon, MDS to PC, HMI, PLC {Modbus Master}）
TIA-25 RS232 Serial Interface Molded Cable, DB9-S on computer end, DB9-P on drive end, 25 ft Length （EN, Epsilon, MDS to PC, HMI, PLC {Modbus Master}）
TIA-50 RS232 Serial Interface Molded Cable, DB9-S on computer end, DB9-P on drive end, 50 ft Length （EN, Epsilon, MDS to PC, HMI, PLC {Modbus Master}）
TIA-ECE-xxx External FX to PC
TIA-ICE-xxx Internal FX to PC
TIA-xxx RS232 Serial Interface Molded Cable, DB9-S on computer end, DB9-P on drive end, Custom Length - 1 ft increments （EN, Epsilon, MDS to PC, HMI, PLC {Modbus Master}）
UD50 Extended I/O, Small Option Module （Unidrive）
UD50-UG UD50 Module User Guide
UD51 Second Encoder Feedback, Small Option Module （Unidrive）
UD51-UG UD51 Module User Guide
UD52 SIN/COS （Absolute - Hiperface Protocol） Encoder Feedback, Small Option Module （Unidrive）
UD52-UG UD52 Module User Guide
UD53 Resolver Feedback, Small Option Module （Undrive）
UD53-UG UD53 Module User Guide
UD55 Memory Cloning, Small Option Module （Unidrive）
UD55-UG UD55 Module User Guide
UD70 Application Coprocessor with Modbus RTU, Large Option module （Unidrive）
UD70/MD29-UG UD70 ａnd MD29 User Guide
UD70-DAC Duty-Assist, Preprogrammed Large Option Module with Modbus RTU （Unidrive）
UD70-DMW Dual Mode Winder, Preprogrammed Large Option Module with Modbus RTU （Unidrive）
UD70-FSC Flying Shear Control, Preprogrammed Large Option Module with Modbus RTU （Unidrive）
UD71 RS-232/485, Large Option Module （Unidrive）
UD71-UG UD71 Module User Guide
UD73 Application Coprocessor with Profibus-DP, Large Option module （Unidrive）
UD73-COM Profibus-DP, Large Option Module - Communications Only （Unidrive）
UD73-DAC Duty-Assist, Preprogrammed Large Option Module with Profibus-DP （Unidrive）
UD73-DMW Dual Mode Winder, Preprogrammed Large Option Module with Profibus-DP （Unidrive）
UD73-FSC Flying Shear Control, Preprogrammed Large Option Module with Profibus-DP （Unidrive）
UD73-UG UD73 Module （Profibus-DP） User Guide
UD74 Application Coprocessor with InterBus-S, Large Option module （Unidrive）
UD74-COM InterBus-S, Large Option Module - Communications Only （Unidrive）
UD74-DAC Duty-Assist, Preprogrammed Large Option Module with Interbus-S （Unidrive）
UD74-DMW Dual Mode Winder, Preprogrammed Large Option Module with Interbus-S （Unidrive）
UD74-FSC Flying Shear Control, Preprogrammed Large Option Module with Interbus-S （Unidrive）
UD74-UG UD74 Module （Interbus-S） User Guide
UD75 Application Coprocessor with CTNet （Not compatible with UD75-RevD Module）, Large Option module （Unidrive）
UD75-DAC Duty-Assist, Preprogrammed Large Option Module with CTNet （Unidrive）
UD75-DMW Dual Mode Winder, Preprogrammed Large Option Module with CTNet （Unidrive）
UD75-FSC Flying Shear Control, Preprogrammed Large Option Module with CTNet （Unidrive）
UD75-REVD Application Coprocessor with CTNet Rev D （Current Version of CTNet）, Large Option module （Unidrive）
UD76 Application Coprocessor with Modbus Plus, Large Option module （Unidrive）
UD76-COM Modbus Plus, Large Option Module - Communications Only （Unidrive）
UD76-UG UD76 Module （Modbus Plus） User Guide
UD77CO Application Coprocessor with CANopen, Large Option module （Unidrive）
UD77CO-COM CANOpen, Large Option Module - Communications Only （Unidrive）
UD77-DAC Duty-Assist, Preprogrammed Large Option Module with DeviceNet （Unidrive）
UD77-DMW Dual Mode Winder, Preprogrammed Large Option Module with DeviceNet （Unidrive）
UD77DN Application Coprocessor with DeviceNet, Large Option module （Unidrive）
UD77DN-COM DeviceNet, Large Option Module - Communications Only （Unidrive）
UD77-FSC Flying Shear Control, Preprogrammed Large Option Module with DeviceNet （Unidrive）
UD77-UG UD77 Module （DeviceNet） User Guide
UD78 Precision Analog Input, 24VDC Back-up Supply Connection, Large Option Module （Unidrive）
UD78-UG UD78 Module User Guide
UDBV1 Screw terminal to 15 pin break out board for servo motor encoder feedback cable （Unidrive）
UDBV3 Screw terminal to 8 pin break out board for vector motor encoder feedback cable （Unidrive）
UFCS-005 Motor Feedback Cable, Connectors on both ends, 5 ft Length （Unidrive, Unidrive SP to NT, MG, MH）
UFCS-015 Motor Feedback Cable, Connectors on both ends, 15 ft Length （Unidrive, Unidrive SP to NT, MG, MH）
UFCS-025 Motor Feedback Cable, Connectors on both ends, 25 ft Length （Unidrive, Unidrive SP to NT, MG, MH）
UFCS-050 Motor Feedback Cable, Connectors on both ends, 50 ft Length （Unidrive, Unidrive SP to NT, MG, MH）
UFCS-100 Motor Feedback Cable, Connectors on both ends, 100 ft Length （Unidrive, Unidrive SP to NT, MG, MH）
UFCS-xxx Motor Feedback Cable, Connectors at both ends, Custom Length - 1 ft increments （Unidrive, Unidrive SP to NT, MG, MH）
UNI1203LV Unidrive （Size 1）, 1hp, 230V - 3, 3.8A Cont. Output Current, Nema 1
UNI1203VTCLV Unidrive VTC （Size 1）, 1hp, 230V - 3, 3.8 A Cont. Output Current, Nema 1
UNI1204LV Unidrive （Size 1）, 1.5hp, 230V - 3, 5.6A Cont. Output Current, Nema 1
UNI1204VTCLV Unidrive VTC （Size 1）, 1.5hp, 230V - 3, 5.6 A Cont. Output Current, Nema 1
UNI1205LV Unidrive （Size 1）, 3hp, 230V - 3, 9.5A Cont. Output Current, Nema 1
UNI1205VTCLV Unidrive VTC （Size 1）, 3hp, 230V - 3, 9.5 A Cont. Output Current, Nema 1
UNI1401 Unidrive （Size 1）, 1hp, 460V - 3, 2.1A Cont. Output Current, Nema 1
UNI1401LFT Unidrive LFT, 1hp, 460V - 3, 2.1 Amps, Nema 1
UNI1401-N1 Unidrive ExpressPak, 1hp, 460V - 3, 2.1 Amps, Nema 1
UNI1401-N12 Unidrive ExpressPak, 1hp, 460V - 3, 2.1 Amps, Nema 12
UNI1401VTC Unidrive VTC （Size 1）, 1hp, 460V - 3, 2.1 A Cont. Output Current, Nema 1
UNI1402 Unidrive （Size 1）, 1.5hp, 460V - 3, 2.8A Cont. Output Current, Nema 1
UNI1402LFT Unidrive LFT, 1.5hp, 460V - 3, 2.8 Amps, Nema 1
UNI1402-N1 Unidrive ExpressPak, 1.5hp, 460V - 3, 2.8 Amps, Nema 1
UNI1402-N12 Unidrive ExpressPak, 1.5hp, 460V - 3, 2.8 Amps, Nema 12
UNI1402VTC Unidrive VTC （Size 1）, 1.5hp, 460V - 3, 2.8 A Cont. Output Current, Nema 1
UNI1403 Unidrive （Size 1）, 2hp, 460V - 3, 3.8A Cont. Output Current, Nema 1
UNI1403LFT Unidrive LFT, 2hp, 460V - 3, 3.8 Amps, Nema 1
UNI1403-N1 Unidrive ExpressPak, 2hp, 460V - 3, 3.8 Amps, Nema 1
UNI1403-N12 Unidrive ExpressPak, 2hp, 460V - 3, 3.8 Amps, Nema 12
UNI1403VTC Unidrive VTC （Size 1）, 2hp, 460V - 3, 3.8 A Cont. Output Current, Nema 1
UNI1404 Unidrive （Size 1）, 3hp, 460V - 3, 5.6A Cont. Output Current, Nema 1
UNI1404LFT Unidrive LFT, 3hp, 460V - 3, 5.6 Amps, Nema 1
UNI1404-N1 Unidrive ExpressPak, 3hp, 460V - 3, 5.6 Amps, Nema 1
UNI1404-N12 Unidrive ExpressPak, 3hp, 460V - 3, 5.6 Amps, Nema 12
UNI1404VTC Unidrive VTC （Size 1）, 3hp, 460V - 3, 5.6 A Cont. Output Current, Nema 1
UNI1405 Unidrive （Size 1）, 5hp, 460V - 3, 9.5A Cont. Output Current, Nema 1
UNI1405LFT Unidrive LFT, 5hp, 460V - 3, 9.5 Amps, Nema 1
UNI1405-N1 Unidrive ExpressPak, 5hp, 460V - 3, 9.5 Amps, Nema 1
UNI1405-N12 Unidrive ExpressPak, 5hp, 460V - 3, 9.5 Amps, Nema 12
UNI1405VTC Unidrive VTC （Size 1）, 5hp, 460V - 3, 9.5 A Cont. Output Current, Nema 1
UNI1WE >Extends standard warranty to 5 Years on Unidrive - Size 1
UNI2201LV Unidrive （Size 2）, 3hp, 230V - 3, 12.0A Cont. Output Current, Nema 1
UNI2201VTCLV Unidrive VTC （Size 2）, 3hp, 230V - 3, 12 A Cont. Output Current, Nema 1
UNI2202LV Unidrive （Size 2）, 5hp, 230V - 3, 16.0A Cont. Output Current, Nema 1
UNI2202VTCLV Unidrive VTC （Size 2）, 5hp, 230V - 3, 16 A Cont. Output Current, Nema 1
UNI2203LV Unidrive （Size 2）, 7.5hp, 230V - 3, 25A Cont. Output Current, Nema 1
UNI2203VTCLV Unidrive VTC （Size 2）, 7.5hp, 230V - 3, 25 A Cont. Output Current, Nema 1
UNI2401 Unidrive （Size 2）, 7.5hp, 460V - 3, 12A Cont. Output Current, Nema 1
UNI2401LFT Unidrive LFT, 7.5hp, 460V - 3, 12 Amps, Nema 1
UNI2401-N1 Unidrive ExpressPak, 7.5hp, 460V - 3, 12 Amps, Nema 1
UNI2401-N12 Unidrive ExpressPak, 7.5hp, 460V - 3, 12 Amps, Nema 12
UNI2401VTC Unidrive VTC （Size 2）, 7.5hp, 460V - 3, 12 A Cont. Output Current, Nema 1
UNI2402 Unidrive （Size 2）, 10hp, 460V - 3, 16A Cont. Output Current, Nema 1
UNI2402LFT Unidrive LFT, 10hp, 460V - 3, 16 Amps, Nema 1
UNI2402-N1 Unidrive ExpressPak, 10hp, 460V - 3, 16 Amps, Nema 1
UNI2402-N12 Unidrive ExpressPak, 10hp, 460V - 3, 16 Amps, Nema 12
UNI2402VTC Unidrive VTC （Size 2）, 10hp, 460V - 3, 16 A Cont. Output Current, Nema 1
UNI2403 Unidrive （Size 2）, 15hp, 460V - 3, 25A Cont. Output Current, Nema 1
UNI2403LFT Unidrive LFT, 15hp, 460V - 3, 25 Amps, Nema 1
UNI2403-N1 Unidrive ExpressPak, 15hp, 460V - 3, 25 Amps, Nema 1
UNI2403-N12 Unidrive ExpressPak, 15hp, 460V - 3, 25 Amps, Nema 12
UNI2403VTC Unidrive VTC （Size 2）, 15hp, 460V - 3, 25 A Cont. Output Current, Nema 1
UNI2WE Extends standard warranty to 5 Years on Unidrive - Size 2
UNI3201LV Unidrive （Size 3）, 10hp, 230V - 3, 34A Cont. Output Current, Nema 1
UNI3201VTCLV Unidrive VTC （Size 3）, 10hp, 230V - 3, 34 A Cont. Output Current, Nema 1
UNI3202LV Unidrive （Size 3）, 15hp, 230V - 3, 46A Cont. Output Current, Nema 1
UNI3202VTCLV Unidrive VTC （Size 3）, 15hp, 230V - 3, 46A Cont. Output Current, Nema 1
UNI3203LV Unidrive （Size 3）, 20hp, 230V - 3, 60A Cont. Output Current, Nema 1
UNI3203VTCLV Unidrive VTC （Size 3）, 20hp, 230V - 3, 60A Cont. Output Current, Nema 1
UNI3204LV Unidrive （Size 3）, 25hp （30hp）, 230V - 3, 70A Cont. Output Current, Nema 1
UNI3204VTCLV Unidrive VTC （Size 3）, 25hp / 30hp, 230V - 3, 70A Cont. Output Current, Nema 1
UNI3401 Unidrive （Size 3）, 25hp, 460V - 3, 34A Cont. Output Current, Nema 1
UNI3401LFT Unidrive LFT, 20hp, 460V - 3, 34 Amps, Nema 1
UNI3401-N1 Unidrive ExpressPak, 25hp, 460V - 3, 34 Amps, Nema 1
UNI3401-N12 Unidrive ExpressPak, 25hp, 460V - 3, 34 Amps, Nema 12
UNI3401VTC Unidrive VTC （Size 3）, 25hp, 460V - 3, 34 A Cont. Output Current, Nema 1
UNI3402 Unidrive （Size 3）, 30hp, 460V - 3, 40A Cont. Output Current, Nema 1
UNI3402LFT Unidrive LFT, 25hp, 460V - 3, 40 Amps, Nema 1
UNI3402-N1 Unidrive ExpressPak, 30hp, 460V - 3, 40 Amps, Nema 1
UNI3402-N12 Unidrive ExpressPak, 30hp, 460V - 3, 40 Amps, Nema 12
UNI3402VTC Unidrive VTC （Size 3）, 30hp, 460V - 3, 40 A Cont. Output Current, Nema 1
UNI3403 Unidrive （Size 3）, 30hp, 460V - 3, 46A Cont. Output Current, Nema 1
UNI3403LFT Unidrive LFT, 30hp, 460V - 3, 46 Amps, Nema 1
UNI3403-N1 Unidrive ExpressPak, 30hp, 460V - 3, 46 Amps, Nema 1
UNI3403-N12 Unidrive ExpressPak, 30hp, 460V - 3, 46 Amps, Nema 12
UNI3403VTC Unidrive VTC （Size 3）, 30hp, 460V - 3, 46 A Cont. Output Current, Nema 1
UNI3404 Unidrive （Size 3）, 40hp, 460V - 3, 60A Cont. Output Current, Nema 1
UNI3404LFT Unidrive LFT, 40hp, 460V - 3, 60 Amps, Nema 1
UNI3404-N1 Unidrive ExpressPak, 40hp, 460V - 3, 60 Amps, Nema 1
UNI3404-N12 Unidrive ExpressPak, 40hp, 460V - 3, 60 Amps, Nema 12
UNI3404VTC Unidrive VTC （Size 3）, 40hp, 460V - 3, 60 A Cont. Output Current, Nema 1
UNI3405 Unidrive （Size 3）, 50hp, 460V - 3, 70A Cont. Output Current, Nema 1
UNI3405LFT Unidrive LFT, 50hp, 460V - 3, 70 Amps, Nema 1
UNI3405-N1 Unidrive ExpressPak, 50hp, 460V - 3, 70 Amps, Nema 1
UNI3405-N12 Unidrive ExpressPak, 50hp, 460V - 3, 70 Amps, Nema 12
UNI3405VTC Unidrive VTC （Size 3）, 50hp, 460V - 3, 70 A Cont. Output Current, Nema 1
UNI3WE Extends standard warranty to 5 Years on Unidrive - Size 3
UNI4401 Unidrive （Size 4）, 75hp, 460V - 3, 96A Cont. Output Current, Nema 1
UNI4401LFT Unidrive LFT, 60hp, 460V - 3, 96 Amps, Nema 1
UNI4401-N1 Unidrive ExpressPak, 75hp, 460V - 3, 96 Amps, Nema 1
UNI4401-N12 Unidrive ExpressPak, 75hp, 460V - 3, 96 Amps, Nema 12
UNI4401VTC Unidrive VTC （Size 4）, 75hp, 460V - 3, 96A Cont. Output Current, Nema 1
UNI4402 Unidrive （Size 4）, 100hp, 460V - 3, 124A Cont. Output Current, Nema 1
UNI4402LFT Unidrive LFT, 75hp, 460V - 3, 124 Amps, Nema 1
UNI4402-N1 Unidrive ExpressPak, 100hp, 460V - 3, 124 Amps, Nema 1
UNI4402-N12 Unidrive ExpressPak, 100hp, 460V - 3, 124 Amps, Nema 12
UNI4402VTC Unidrive VTC （Size 4）, 100hp, 460V - 3, 124A Cont. Output Current, Nema 1
UNI4403 Unidrive （Size 4）, 125hp, 460V - 3, 156A Cont. Output Current, Nema 1
UNI4403LFT Unidrive LFT, 100hp, 460V - 3, 156 Amps, Nema 1
UNI4403-N1 Unidrive ExpressPak, 125hp, 460V - 3, 156 Amps, Nema 1
UNI4403-N12 Unidrive ExpressPak, 125hp, 460V - 3, 156 Amps, Nema 12
UNI4403VTC  Unidrive VTC （Size 4）, 125hp, 460V - 3, 156A Output Current, Nema 1
UNI4404  Unidrive （Size 4）, 150hp, 460V - 3, 180A Cont. Output Current, Nema 1
UNI4404LFT Unidrive LFT, 125hp, 460V - 3, 180 Amps, Nema 1
UNI4404-N1 Unidrive ExpressPak, 150hp, 460V - 3, 180 Amps, Nema 1
UNI4404-N12 Unidrive ExpressPak, 150hp, 460V - 3, 180 Amps, Nema 12
UNI4404VTC Unidrive VTC （Size 4）, 150hp, 460V - 3, 180A Cont. Output Current, Nema 1
UNI4405  Unidrive （Size 4）, 150hp, 460V - 3, 202A Cont. Output Current, Nema 1
UNI4405LFT Unidrive LFT, 150hp, 460V - 3, 202 Amps, Nema 1
UNI4405VTC Unidrive VTC （Size 4）, 150hp, 460V - 3, 202A Cont. Output Current, Nema 1
UNI4WE Extends standard warranty to 5 Years on Unidrive - Size 4
UNI5401CT020 Unidrive, 200hp, 480Vac - 3, 240A Cont. Output Current, 6 Pulse, Nema 1
UNI5401CT025-12 Unidrive, 250hp, 480Vac - 3, 300A Cont. Output Current, 12 Pulse, Nema 1
UNI5401VT025 Unidrive, 250hp, 480Vac - 3, 300A Cont. Output Current, 6 Pulse, Nema 1
UNI5402CT025 Unidrive, 250hp, 480Vac - 3, 300A Cont. Output Current, 6 Pulse, Nema 1
UNI5402CT030 Unidrive, 300hp, 480Vac - 3, 360A Cont. Output Current, 6 Pulse, Nema 1
UNI5402CT030-12 Unidrive, 300hp, 480Vac - 3, 360A Cont. Output Current, 12 Pulse, Nema 1
UNI5402CT035 Unidrive, 350hp, 480Vac - 3, 420A Cont. Output Current, 6 Pulse, Nema 1
UNI5402CT035-12 Unidrive, 350hp, 480Vac - 3, 420A Cont. Output Current, 12 Pulse, Nema 1
UNI5402CT040 Unidrive, 400hp, 480Vac - 3, 480A Cont. Output Current, 6 Pulse, Nema 1
UNI5402CT040-12 Unidrive, 400hp, 480Vac - 3, 480A Cont. Output Current, 12 Pulse, Nema 1
UNI5402VT030 Unidrive, 300hp, 480Vac - 3, 360A Cont. Output Current, 6 Pulse, Nema 1
UNI5402VT030-12 Unidrive, 300hp, 480Vac - 3, 360A Cont. Output Current, 12 Pulse, Nema 1
UNI5402VT035 Unidrive, 350hp, 480Vac - 3, 420A Cont. Output Current, 6 Pulse, Nema 1
UNI5402VT035-12 Unidrive, 350hp, 480Vac - 3, 420A Cont. Output Current, 12 Pulse, Nema 1
UNI5402VT040 Unidrive, 400hp, 480Vac - 3, 480A Cont. Output Current, 6 Pulse, Nema 1
UNI5402VT040-12 Unidrive, 400hp, 480Vac - 3, 480A Cont. Output Current, 12 Pulse, Nema 1
UNI5402VT050 Unidrive, 500hp, 480Vac - 3, 600A Cont. Output Current, 6 Pulse, Nema 1
UNI5403CT050 Unidrive, 500hp, 480Vac - 3, 600A Cont. Output Current, 6 Pulse, Nema 1
UNI5403CT060 Unidrive, 600hp, 480Vac - 3, 720A Cont. Output Current, 6 Pulse, Nema 1
UNI5403VT060 Unidrive, 600hp, 480Vac - 3, 720A Cont. Output Current, 6 Pulse, Nema 1
UNI5403VT075 Unidrive, 750hp, 480Vac - 3, 900A Cont. Output Current, 6 Pulse, Nema 1
UNI5404CT050-12 Unidrive, 500hp, 480Vac - 3, 600A Cont. Output Current, 12 Pulse, Nema 1
UNI5404CT060-12 Unidrive, 600hp, 480Vac - 3, 720A Cont. Output Current, 12 Pulse, Nema 1
UNI5404CT080 Unidrive, 800hp, 480Vac - 3, 960A Cont. Output Current, 6 Pulse, Nema 1
UNI5404CT080-12 Unidrive, 800hp, 480Vac - 3, 960A Cont. Output Current, 12 Pulse, Nema 1
UNI5404VT050-12 Unidrive, 500hp, 480Vac - 3, 600A Cont. Output Current, 12 Pulse, Nema 1
UNI5404VT060-12 Unidrive, 600hp, 480Vac - 3, 720A Cont. Output Current, 12 Pulse, Nema 1
UNI5404VT075-12 Unidrive, 750hp, 480VAC - 3, 900A Cont. Output Current, 12 Pulse, Nema 1
UNI5404VT100 Unidrive, 1000hp, 480VAC - 3, 1200A Cont. Output Current, 6 Pulse, Nema 1
UNI5404VT100-12 Unidrive, 1000hp, 480VAC - 3, 1200A Cont. Output Current, 12 Pulse, Nema 1
UNI5404VT125-12 Unidrive, 1250hp, 480VAC - 3, 1500A Cont. Output Current, 12 Pulse, Nema 1
UNI5405CT100 Unidrive, 1000hp, 480VAC - 3, 1200A Cont. Output Current, 6 Pulse, Nema 1
UNI5405VT125 Unidrive, 1250hp, 480VAC - 3, 1500A Cont. Output Current, 6 Pulse, Nema 1
UNI5406CT100-12 Unidrive, 1000hp, 480VAC - 3, 1200A Cont. Output Current, 12 Pulse, Nema 1
UNI54CPOD Unidrive Size 5 Power Module Controller （Control Pod）, 1 required per drive assembly
UNI54PMF12 Unidrive Size 5 Power Module: 240 Amps Constant Torque - 300 Amps Variable Torque. Up to 8 units can be paralled.
UNI54PMF12-IF Unidrive Size 5 Power Module with Input Fuses: 240 Amps Constant Torque - 300 Amps Variable Torque.  Up to 8 units can be paralled.
UNI5DB Unidrive Size 5 Dynamic Braking Transistor Module （Braking resistor sold separately）
UNI5WE Extends standard warranty to 5 Years on Unidrive - Size 5
UNIBAF1 Required for through-panel mounting of size 1 Unidrive
UNIBAF2 Required for through-panel mounting of size 2 Unidrive
UNIBAF3 Required for through-panel mounting of size 3 Unidrive
UNIBAF4 Required for through-panel mounting of size 4 Unidrive
UNIDEMO Unidrive Demo includes: Unidrive with Control Panel in demo case, UniSoft ａnd motor
UNIDEMO SP  UNIDEMO SP includes: 460VAC Unidrive SP, SyPT, SM-Applications Processor Module, SM-Universal Encoder Plus Module, CTIU-110, Servo Motor, Vector Motor ａnd associated cables
UNIDEMO SP-LITE  UNIDEMO SP-Lite includes one each of the following: 460VAC Unidrive SP, Sm-Applications Processor Module, SM-Universal Encoder Plus Module, CTIU-110, SyPT ａnd programming cables
UNIDEMO SP-RETRO  UNIDEMO SP-Retro includes the following modifications to exisiting Unidemo: 460VAC Unidrive SP, SM-Applications Processor Module ａnd SM-Universal Encoder Plus Module
UNIREG1203-N1 Unidrive Regen, 1hp, 230V - 3, 3.8 Amps, Nema 1
UNIREG1203-P0 Unidrive Regen, 1hp, 230V - 3, 3.8 Amps, Panel Mount
UNIREG1204-N1 Unidrive Regen, 1.5hp, 230V - 3, 5.6 Amps, Nema 1
UNIREG1204-P0 Unidrive Regen, 1.5hp, 230V - 3, 5.6 Amps, Panel Mount
UNIREG1205-N1 Unidrive Regen, 2hp, 230V - 3, 12 Amps, Nema 1
UNIREG1205-P0 Unidrive Regen, 2hp, 230V - 3, 12 Amps, Panel Mount
UNIREG1401-N1 Unidrive Regen, 1hp, 480V - 3, 2.1 Amps, Nema 1
UNIREG1401-P0 Unidrive Regen, 1hp, 480V - 3, 2.1 Amps, Panel Mount
UNIREG1402-N1 Unidrive Regen, 1.5hp, 480V - 3, 2.8 Amps, Nema 1
UNIREG1402-P0 Unidrive Regen, 1.5hp, 480V - 3, 2.8 Amps, Panel Mount
UNIREG1403-N1 Unidrive Regen, 2hp, 480V - 3, 3.8 Amps, Nema 1
UNIREG1403-P0 Unidrive Regen, 2hp, 480V - 3, 3.8 Amps, Panel Mount
UNIREG1404-N1 Unidrive Regen, 3hp, 480V - 3, 5.6 Amps, Nema 1
UNIREG1404-P0 Unidrive Regen, 3hp, 480V - 3, 5.6 Amps, Panel Mount
UNIREG1405-N1 Unidrive Regen, 5hp, 480V - 3, 9.5 Amps, Nema 1
UNIREG1405-P0 Unidrive Regen, 5hp, 480V - 3, 9.5 Amps, Panel Mount
UNIREG2201-N1 Unidrive Regen, 3hp, 230V - 3, 12 Amps, Nema 1
UNIREG2201-P0 Unidrive Regen, 3hp, 230V - 3, 12 Amps, Panel Mount
UNIREG2202-N1 Unidrive Regen, 5hp, 230V - 3, 16 Amps, Nema 1
UNIREG2202-P0 Unidrive Regen, 5hp, 230V - 3, 16 Amps, Panel Mount
UNIREG2203-N1 Unidrive Regen, 7.5hp, 230V - 3, 25 Amps, Nema 1
UNIREG2203-P0 Unidrive Regen, 7.5hp, 230V - 3, 25 Amps, Panel Mount
UNIREG2401-N1 Unidrive Regen, 7.5hp, 480V - 3, 12 Amps, Nema 1
UNIREG2401-P0 Unidrive Regen, 7.5hp, 480V - 3, 12 Amps, Panel Mount
UNIREG2402-N1 Unidrive Regen, 10hp, 480V - 3, 16 Amps, Nema 1
UNIREG2402-P0 Unidrive Regen, 10hp, 480V - 3, 16 Amps, Panel Mount
UNIREG2403-N1 Unidrive Regen, 15hp, 480V - 3, 25 Amps, Nema 1
UNIREG2403-P0 Unidrive Regen, 15hp, 480V - 3, 25 Amps, Panel Mount
UNIREG3201-N1 Unidrive Regen, 10hp, 230V - 3, 34 Amps, Nema 1
UNIREG3201-P0 Unidrive Regen, 10hp, 230V - 3, 34 Amps, Panel Mount
UNIREG3202-N1 Unidrive Regen, 15hp, 230V - 3, 46 Amps, Nema 1
UNIREG3202-P0 Unidrive Regen, 15hp, 230V - 3, 46 Amps, Panel Mount
UNIREG3203-N1 Unidrive Regen, 20hp, 230V - 3, 60 Amps, Nema 1
UNIREG3203-P0 Unidrive Regen, 20hp, 230V - 3, 60 Amps, Panel Mount
UNIREG3204-N1 Unidrive Regen, 25hp, 230V - 3, 70 Amps, Nema 1
UNIREG3204-P0 Unidrive Regen, 25hp, 230V - 3, 70 Amps, Panel Mount
UNIREG3401-N1 Unidrive Regen, 25hp, 480V - 3, 34 Amps, Nema 1
UNIREG3401-P0 Unidrive Regen, 25hp, 480V - 3, 34 Amps, Panel Mount
UNIREG3402-N1 Unidrive Regen, 30hp, 480V - 3, 40 Amps, Nema 1
UNIREG3402-P0 Unidrive Regen, 30hp, 480V - 3, 40 Amps, Panel Mount
UNIREG3404-N1 Unidrive Regen, 40hp, 480V - 3, 60 Amps, Nema 1
UNIREG3404-P0 Unidrive Regen, 40hp, 480V - 3, 60 Amps, Panel Mount
UNIREG3405-N1 Unidrive Regen, 50hp, 480V - 3, 70 Amps, Nema 1
UNIREG3405-P0 Unidrive Regen, 50hp, 480V - 3, 70 Amps, Panel Mount
UNIREG4401-N1 Unidrive Regen, 75hp, 480V - 3, 96 Amps, Nema 1
UNIREG4401-P0 Unidrive Regen, 75hp, 480V - 3, 96 Amps, Panel Mount
UNIREG4402-N1 Unidrive Regen, 100hp, 480V - 3, 124 Amps, Nema 1
UNIREG4402-P0 Unidrive Regen, 100hp, 480V - 3, 124 Amps, Panel Mount
UNIREG4403-N1 Unidrive Regen, 125hp, 480V - 3, 156 Amps, Nema 1
UNIREG4403-P0 Unidrive Regen, 125hp, 480V - 3, 156 Amps, Panel Mount
UNIREG4404-N1 Unidrive Regen, 150hp, 480V - 3, 180 Amps, Nema 1
UNIREG4404-P0 Unidrive Regen, 150hp, 480V - 3, 180 Amps, Panel Mount
UNISOFT Windows based Configuration Tool for Unidrive
UNISP-AUG Advanced User Guide: Unidrive SP
UNISP-UG Unidrive SP User Guide
UNIV3-AUG Advanced User Guide: Unidrive V3
UNIV3-UG Unidrive V3 User Guide
UNIWIN Windows based programming software for use with MD03R-02/MD02R-04.
VTC1WE Extends standard warranty to 5 Years on Unidrive VTC - Size 1
VTC2WE Extends standard warranty to 5 Years on Unidrive VTC - Size 2
VTC3WE Extends standard warranty to 5 Years on Unidrive VTC - Size 3
VTC4WE Extends standard warranty to 5 Years on Unidrive VTC - Size 4
VTCSoft Windows based Configuration Tool for Unidrive VTC
XIOR-32 I/O Expansion connection board-rack for 32 G4 narrow type modules only
XPRESSKEY Cloning / copying key, Commander SX Series
9500-8608 Quantum III Drive, 100hp @ 230Vac, 200hp @ 460Vac, 338 A Cont. Output Current, Regen
9500-8608WE Extends standard warranty to 5 Years on Quantum 9500-8608 Model
9500-8609 Quantum III Drive, 125hp @ 230Vac, 250hp @ 460Vac, 428 A Cont. Output Current, Regen
9500-8609WE Extends standard warranty to 5 Years on Quantum 9500-8609 Model
9500-8610 Quantum III Drive, 150hp @ 230Vac, 300hp @ 460Vac, 508 A Cont. Output Current, Regen
9500-8610WE Extends standard warranty to 5 Years on Quantum 9500-8610 Model
9500-8611 Quantum III Drive, 200hp @ 230Vac, 400hp @ 460Vac, 675 A Cont. Output Current, Regen
9500-8611WE Extends standard warranty to 5 Years on Quantum 9500-8611 Model
9500-8615 Quantum III Drive, 250hp @ 230Vac, 500 hp @ 460Vac, 820 A Cont. Output Current, Regen
9500-8615WE Extends standard warranty to 5 Years on Quantum 9500-8615 Model
9500-8616 Quantum III Drive, 300hp @ 230Vac, 600 hp @ 460Vac, 985 A Cont. Output Current, Regen
9500-8616WE Extends standard warranty to 5 Years on Quantum 9500-8616 Model
9500-8617 Quantum III Drive, 700hp @ 460Vac, 1150 A Cont. Output Current, Regen
9500-8617WE Extends standard warranty to 5 Years on Quantum 9500-8617 Model
9500-8618 Quantum III Drive, 400hp @ 240Vac, 800hp @ 460Vac, 1250 A Cont. Output Current, Regen
9500-8618WE Extends standard warranty to 5 Years on Quantum 9500-8618 Model
9500-8619 Quantum III Drive, 900hp @ 460Vac, 1470 A Cont. Output Current, Regen
9500-8619WE Extends standard warranty to 5 Years on Quantum 9500-8619 Model
9500-8620 Quantum III Drive, 500hp @ 230Vac, 1000hp @ 460Vac, 1850 A Cont. Output Current, Regen
9500-8620WE Extends standard warranty to 5 Years on Quantum 9500-8620 Model
9500-9032 50 Amp Field Regulator
9500-9033 90 Amp Field Regulator
9500-9035 20 Amp Field Regulator （FXM-5）
9500-9100 Modbus Plus interface card （Mentor II, Quantum III）
95DSA300CAAAA DutymAx Brushless Servo Motor, Rated Voltage: 460Vac, Rated Speed: 3000rpm, Feedback: Resolver, Brake: No
95DSA300HAAAA DutymAx Brushless Servo Motor, Rated Voltage: 460Vac, Rated Speed: 3000rpm, Feedback: Resolver, Brake: No
95DSA301CAAAA DutymAx Brushless Servo Motor, Rated Voltage: 460Vac, Rated Speed: 3000rpm, Feedback: Resolver, Brake: 24Vdc
95DSA301HAAAA DutymAx Brushless Servo Motor, Rated Voltage: 460Vac, Rated Speed: 3000rpm, Feedback: Resolver, Brake: 24Vdc
95DSB300CAAAA DutymAx Brushless Servo Motor, Rated Voltage: 460Vac, Rated Speed: 3000rpm, Feedback: Resolver, Brake: No
95DSB300HAAAA DutymAx Brushless Servo Motor, Rated Voltage: 460Vac, Rated Speed: 3000rpm, Feedback: Resolver, Brake: No
95DSB301CAAAA DutymAx Brushless Servo Motor, Rated Voltage: 460Vac, Rated Speed: 3000rpm, Feedback: Resolver, Brake: 24Vdc
95DSB301HAAAA DutymAx Brushless Servo Motor, Rated Voltage: 460Vac, Rated Speed: 3000rpm, Feedback: Resolver, Brake: 24Vdc
95DSC300CAAAA DutymAx Brushless Servo Motor, Rated Voltage: 460Vac, Rated Speed: 3000rpm, Feedback: Resolver, Brake: No
95DSC300HAAAA DutymAx Brushless Servo Motor, Rated Voltage: 460Vac, Rated Speed: 3000rpm, Feedback: Resolver, Brake: No
95DSC301CAAAA DutymAx Brushless Servo Motor, Rated Voltage: 460Vac, Rated Speed: 3000rpm, Feedback: Resolver, Brake: 24Vdc
95DSC301HAAAA DutymAx Brushless Servo Motor, Rated Voltage: 460Vac, Rated Speed: 3000rpm, Feedback: Resolver, Brake: 24Vdc
95DSD300CAAAA DutymAx Brushless Servo Motor, Rated Voltage: 460Vac, Rated Speed: 3000rpm, Feedback: Resolver, Brake: No
95DSD300HAAAA DutymAx Brushless Servo Motor, Rated Voltage: 460Vac, Rated Speed: 3000rpm, Feedback: Resolver, Brake: No
95DSD301CAAAA DutymAx Brushless Servo Motor, Rated Voltage: 460Vac, Rated Speed: 3000rpm, Feedback: Resolver, Brake: 24Vdc
95DSD301HAAAA DutymAx Brushless Servo Motor, Rated Voltage: 460Vac, Rated Speed: 3000rpm, Feedback: Resolver, Brake: 24Vdc
95DSE300CAAAA DutymAx Brushless Servo Motor, Rated Voltage: 460Vac, Rated Speed: 3000rpm, Feedback: Resolver, Brake: No
95DSE300HAAAA DutymAx Brushless Servo Motor, Rated Voltage: 460Vac, Rated Speed: 3000rpm, Feedback: Resolver, Brake: No
95DSE301CAAAA DutymAx Brushless Servo Motor, Rated Voltage: 460Vac, Rated Speed: 3000rpm, Feedback: Resolver, Brake: 24Vdc
95DSE301HAAAA DutymAx Brushless Servo Motor, Rated Voltage: 460Vac, Rated Speed: 3000rpm, Feedback: Resolver, Brake: 24Vdc
95EZB300CACAA 95mm Frame Brushless Servo Motor, 38.1 lb-in Cont. Torque, 230Vac, Connectorized, 3000RPM Max Speed, Incremental Encoder
95EZB301CACAA 95mm Frame Brushless Servo Motor, 38.1 lb-in Cont. Torque, 230Vac, Connectorized, 3000RPM Max Speed, Incremental Encoder, 24VDC Brake
95EZD300CACAA 95mm Frame Brushless Servo Motor, 66.4 lb-in Cont. Torque, 230Vac, Connectorized, 3000RPM Max Speed, Incremental Encoder
95EZD301CACAA 95mm Frame Brushless Servo Motor, 66.4 lb-in Cont. Torque, 230Vac, Connectorized, 3000RPM Max Speed, Incremental Encoder, 24VDC Brake
95UMB300CACAA 95mm Frame Brushless Servo Motor, 38.1 lb-in Cont. Torque, 460Vac, Connectorized, 3000 RPM Max Speed, Incremental Encoder
95UMB301CACAA 95mm Frame Brushless Servo Motor, 38.1 lb-in Cont. Torque, 460Vac, Connectorized, 3000 RPM Max Speed, Incremental Encoder, 24VDC Brake
95UMD300CACAA 95mm Frame Brushless Servo Motor, 66.4 lb-in Cont. Torque, 460Vac, Connectorized, 3000 RPM Max Speed, Incremental Encoder
95UMD301CACAA 95mm Frame Brushless Servo Motor, 66.4 lb-in Cont. Torque, 460Vac, Connectorized, 3000 RPM Max Speed, Incremental Encoder, 24VDC Brake
960304-01 AC Line Filter, 3?, 16 amp, 240 Vac （EN-214）
960305-01 AC Line Filter, 1?, 16 amp, 240 Vac （EN-204, EN-208）
960307-01 AC Line Filter, 1?, 10 amp, 240 Vac （Epsilon）
9650-8118 Braking Resistor, Enclosed with Thermostat, 10% （15 sec on max） for 150hp motor @ 460Vac
9650-8268 Braking Resistor, Enclosed with Thermostat, 25% （30 sec on max） for 150hp motor @ 460Vac
9650-8348 Braking Resistor, Enclosed with Thermostat, 33% （40 sec on max） for 150hp motor @ 460Vac
9729-9000 MD29, 32 Bit Coprocessor with Modbus RTU （Mentor II, Quantum III）
9729-9001 MD29 with S-ramp accel / decel profiling
9729-9002 MD29 with Digital lock with adjustable ratio control
9729-9003 MD29 with Spindle orientation
9729-9004 MD29 with CTCW - Constant tension, center wind
9729-9005 MD29 with PID control for load cell tension or dancer position
9729-9006 MD29 with Power calculator
9729-9008 MD29 with Dual Mode Winder
9729-9501 MD29AN-RevD with S-ramp accel/decel profiling
9729-9502 MD29AN-RevD with Digital lock with adjustable ratio control
9729-9503 MD29AN-RevD with Spindle orientation
9729-9504 MD29AN-RevD with CTCW - Constant tension, center wind
9729-9505 MD29AN-RevD with PID control for load cell tension or dancer position
9729-9506 MD29AN-RevD with Power calculator
9729-9508 MD29AN-RevD with Dual Mode Winder
ALP-130 30 watt auxiliary logic backup power supply, supports one EN Drive
ALP-430 4x20 watt auxiliary logic backup power supply, supports four EN Drives
AX-2000-00-00-00C Axima 2000, 2 axis controller w/ 2 auxiliary encoder inputs
AX-4000-00-00-00C Axima 4000, 4 axis controller
AX4-CEN-002 Command Cable, 45° angle connector on both ends, 2 ft Length （EN, Epsilon, MDS to AXIMA 2/4000）
AX4-CEN-004 Command Cable, 45° angle connector on both ends, 4 ft Length （EN, Epsilon, MDS to AXIMA 2/4000）
AX4-CEN-010 Command Cable, 45° angle connector on both ends, Custom Length - 10 ft Length （EN, Epsilon, MDS to AXIMA 2/4000）
AX4-CEN-A-xxx Command Cable, 45° angle connector on both ends, Custom Length - 1 ft increments （EN, Epsilon, MDS to AXIMA 2/4000）
AX4-ED-005 Command Cable for AXIMA encoder output to AXIMA encoder input, connectorized at both ends, 5 ft Length
AX4-ED-010 Command Cable for AXIMA encoder output to AXIMA encoder input, connectorized at both ends, 10 ft Length
AX4-ED-015 Command Cable for AXIMA encoder output to AXIMA encoder input, connectorized at both ends, 15 ft Length
AX4-ED-xxx Command Cable for AXIMA encoder output to AXIMA encoder input, connectorized at both ends, Non Std Length
AX4-ENC-015 AXIMA to SCSLD Encoder Feedback Cable, MS Connector on encoder end, DB25 Connector on drive end, 15 ft Length
AX4-ENC-025 AXIMA to SCSLD Encoder Feedback Cable, MS Connector on encoder end, DB25 Connector on drive end, 25 ft Length
AX4-ENC-050 AXIMA to SCSLD Encoder Feedback Cable, MS Connector on encoder end, DB25 Connector on drive end, 50 ft Length
AX4-ENC-xxx AXIMA to SCSLD Encoder Feedback Cable, MS Connector on encoder end, DB25 Connector on drive end, Custom Length - 1 ft increments
AX4-GP-005 Command Cable for controller to open wire, 5 ft Length
AX4-GP-010 Command Cable for controller to open wire,10 ft Length
AX4-GP-015 Command Cable for controller to open wire,15 ft Length
AX4-GP-xxx Command Cable for controller to open wire, Non Std Length
AX4-MX-005 Command Cable for MX Series Drive , connectorized at both ends, 5 ft Length
AX4-MX-010 Command Cable for MX Series Drive , connectorized at both ends, 10 ft Length
AX4-MX-015 Command Cable for MX Series Drive , connectorized at both ends, 15 ft Length
AX4-MX-xxx Command Cable for MX Series Drive , connectorized at both ends, Non Std Length
AX4-XIOC-000.5 Ribbon Cable to AXIMA External I/O board/rack 0.5 ft
AX4-XIOC-001.5 Ribbon Cable to AXIMA Ext I/O board/rack, 1.5 ft
AX4-XIOC-002 Ribbon Cable to AXIMA Ext I/O board/rack, 2 ft
Axima 2000 Option To upgrade an AXIMA unit already in the field, with one of the options listed above. This price does not include the option.
AXIMA Classic Opti To upgrade an AXIMA unit already in the field, with one of the options listed above. This price does not include the option.
AXIMA-00-00-0-X0 （X=1） See Catalog Number System Adder for: Digital I/O Expansion （32 in ａnd 32 out）
AXIMA-00-00-1-00 （X=1） See Catalog Number System Adder for: Analog Inputs （8 Channels）
AXIMA-00-XX-0-00 （XX=0D） See Catalog Number System Adder for: Data Highway Plus Communications
AXIMA-00-XX-0-00 （XX=0M） See Catalog Number System Adder for: Modbus Communications
AXIMA-02-00 Axima Classic Base Controller, 2 Axis
AXIMA-04-00 Axima Classic Base Controller, 4 Axis
AXIMA-06-00 Axima Classic Base Controller, 6 Axis
AXIMA-08-00 Axima Classic Base Controller, 8 Axis
DSC-006 Connector on both ends, 6 ft Length
DSC-010 Connector on both ends, 10 ft Length
DXE-208C DX 2" Servo Motor, English Mounting Flange, 8 in-lbs Cont. Torque, 240Vac, Connectorized, 5000 RPM Max Speed
DXE-208C-090 DX 2" Servo Motor, English Mounting Flange, 8 in-lbs Cont. Torque, 240Vac, Connectorized, 5000 RPM Max Speed, CE rated

DXE-208CB DX 2" Servo Motor, English Mounting Flange, 8 in-lbs Cont. Torque, Connectorized, 5000 RPM Max Speed, Brake
DXE-208CB-090 DX 2" Servo Motor, English Mounting Flange, 8 in-lbs Cont. Torque, Connectorized, 5000 RPM Max Speed, Brake, CE Rated
DXE-316C DX 3" Servo Motor, English Mounting Flange, 16 in-lbs Cont. Torque, 240VC, Connectorized, 4000 RPM Max Speed
DXE-316CB DX 3" Servo Motor, English Mounting Flange, 16 in-lbs Cont. Torque, 240Vac, Connectorized, 4000 RPM Max Speed, Brake
DXE-316W DX 3" Servo Motor, English Mounting Flange, 16 in-lbs Cont. Torque, 240Vac, without connectors, Splashproof, 4000 RPM Max Speed
DXE-316WB DX 3" Servo Motor, English Mounting Flange, 16 in-lbs Cont. Torque, 240Vac, without connectors, Splashproof, 4000 RPM Max Speed, Brake
DXE-4120C DX 4" Servo Motor, English Mounting Flange, 120 in-lbs Cont. Torque, 240Vac, Connectorized, 3000 RPM Max Speed
DXE-4120CB DX 4" Servo Motor, English Mounting Flange, 120 in-lbs Cont. Torque, 240Vac, Connectorized, 3000 RPM Max Speed, Brake
DXE-4120W DX 4" Servo Motor, English Mounting Flange, 120 in-lbs Cont. Torque, 240Vac, without connectors, Splashproof, 3000 RPM Max Speed
DXE-4120WB DX 4" Servo Motor, English Mounting Flange, 120 in-lbs Cont. Torque, 240Vac, without connectors, Splashproof, 3000 RPM Max Speed, Brake
DXE-455C DX 4" Servo Motor, English Mounting Flange, 55 in-lbs Cont.Torque, 240Vac, Connectorized, 3000 RPM Max Speed
DXE-455CB DX 4" Servo Motor, English Mounting Flange, 55 in-lbs Cont.Torque, 240Vac, Connectorized, 3000 RPM Max Speed, Brake
DXE-455W DX 4" Servo Motor, English Mounting Flange, 55 in-lbs Cont.Torque, 240Vac, without connectors, Splashproof, 3000 RPM Max Speed
DXE-455WB DX 4" Servo Motor, English Mounting Flange, 55 in-lbs Cont.Torque, 240Vac, without connectors, Splashproof, 3000 RPM Max Speed, Brake
DXE-490C DX 4" Servo Motor, English Mounting Flange, 90 in-lbs Cont. Torque, 240Vac, Connectorized, 3000 RPM Max Speed
DXE-490CB DX 4" Servo Motor, English Mounting Flange, 90 in-lbs Cont. Torque, 240Vac, Connectorized, 3000 RPM Max Speed, Brake
DXE-490W DX 4" Servo Motor, English Mounting Flange, 90 in-lbs Cont. Torque, 240Vac, without connectors, Splashproof, 3000 RPM Max Speed
DXE-490WB DX 4" Servo Motor, English Mounting Flange, 90 in-lbs Cont. Torque, 240Vac, without connectors, Splashproof, 3000 RPM Max Speed, Brake
DXM-208C DX 2" Servo Motor, Metric Mounting Flange, 8 in-lbs Cont. Torque, 240Vac, Connectorized, 5000 RPM Max Speed
DXM-208C-090 DX 2" Servo Motor, Metric Mounting Flange, 8 in-lbs Cont. Torque, 240Vac, Connectorized, 5000 RPM Max Speed, CE Rated
DXM-208CB DX 2" Servo Motor, Metric Mounting Flange, 8 in-lbs Cont. Torque, Connectorized, 5000 RPM Max Speed, Brake
DXM-208CB-090 DX 2" Servo Motor, Metric Mounting Flange, 8 in-lbs Cont. Torque, Connectorized, 5000 RPM Max Speed, Brake, CE Rated
DXM-316C DX 3" Servo Motor, Metric Mounting Flange, 16 in-lbs Cont. Torque, 240Vac, Connectorized, 4000 RPM Max Speed
DXM-316CB DX 3" Servo Motor, Metric Mounting Flange, 16 in-lbs Cont. Torque, 240Vac, Connectorized, 4000 RPM Max Speed, Brake
DXM-316W DX 3" Servo Motor, Metric Mounting Flange, 16 in-lbs Cont. Torque, 240Vac, without connectors, Splashproof, 4000 RPM Max Speed
DXM-316WB DX 3" Servo Motor, Metric Mounting Flange, 16 in-lbs Cont. Torque, 240Vac, without connectors, Splashproof, 4000 RPM Max Speed, Brake
DXM-340C DX 3" Servo Motor, Metric Mounting Flange, 40 in-lbs Cont. Torque, 240Vac, Connectorized, 4000 RPM Max Speed
DXM-340CB DX 3" Servo Motor, Metric Mounting Flange, 40 in-lbs Cont. Torque, 240Vac, Connectorized, 4000 RPM Max Speed, Brake
DXM-340W DX 3" Servo Motor, Metric Mounting Flange, 40 in-lbs Cont. Torque, 240Vac, without connectors, Splashproof, 4000 RPM Max Speed
DXM-340WB DX 3" Servo Motor, Metric Mounting Flange, 40 in-lbs Cont. Torque, 240Vac, without connectors, Splashproof, 4000 RPM Max Speed, Brake
DXM-4120C DX 4" Servo Motor, Metric Mounting Flange, 120 in-lbs Cont. Torque, 240Vac, Connectorized, 3000 RPM Max Speed
DXM-4120CB DX 4" Servo Motor, Metric Mounting Flange, 120 in-lbs Cont. Torque, 240Vac, Connectorized, 3000 RPM Max Speed, Brake
DXM-4120W DX 4" Servo Motor, Metric Mounting Flange, 120 in-lbs Cont. Torque, 240Vac, without connectors, Splashproof, 3000 RPM Max Speed
DXM-4120WB DX 4" Servo Motor, Metric Mounting Flange, 120 in-lbs Cont. Torque, 240Vac, without connectors, Splashproof, 3000 RPM Max Speed, Brake
DXM-455C DX 4" Servo Motor, Metric Mounting Flange, 55 in-lbs Cont.Torque, 240Vac, Connectorized, 3000 RPM Max Speed
DXM-455CB DX 4" Servo Motor, Metric Mounting Flange, 55 in-lbs Cont.Torque, 240Vac, Connectorized, 3000 RPM Max Speed, Brake
DXM-455W DX 4" Servo Motor, Metric Mounting Flange, 55 in-lbs Cont.Torque, 240Vac, without connectors, Splashproof, 3000 RPM Max Speed
DXM-455WB DX 4" Servo Motor, Metric Mounting Flange, 55 in-lbs Cont.Torque, 240Vac, without connectors, Splashproof, 3000 RPM Max Speed, Brake
DXM-490C DX 4" Servo Motor, Metric Mounting Flange, 90 in-lbs Cont. Torque, 240Vac, Connectorized, 3000 RPM Max Speed
DXM-490CB DX 4" Servo Motor, Metric Mounting Flange, 90 in-lbs Cont. Torque, 240Vac, Connectorized, 3000 RPM Max Speed, Brake
DXM-490W DX 4" Servo Motor, Metric Mounting Flange, 90 in-lbs Cont. Torque, 240Vac, without connectors, Splashproof, 3000 RPM Max Speed
DXM-490WB DX 4" Servo Motor, Metric Mounting Flange, 90 in-lbs Cont. Torque, 240Vac, without connectors, Splashproof, 3000 RPM Max Speed, Brake
DXM-6120W DX 6" Servo Motor, Metric Mounting Flange, 120 in-lbs Cont. Torque, 240Vac, without connectors, Splashproof, 3000 RPM Max Speed
DXM-6120WB DX 6" Servo Motor, Metric Mounting Flange, 120 in-lbs Cont. Torque, 240Vac, without connectors, Splashproof, 3000 RPM Max Speed, Brake
Express Pack, HiHP Options Expess Pack Options PDF File Goes Here
Express Pack, Mentor II Options Expess Pack Options PDF File Goes Here
Express Pack, Unidrive Options Expess Pack Options PDF File Goes Here
F3ACT AC Tachometer Input Board
F3DB0524 Dynamic Braking Kit, 0.5hp @ 240V
F3DB112 Dynamic Braking Kit, 0.75 to 1hp @ 120V
F3DB124 Dynamic Braking Kit, 0.75 to 1hp @ 240V
F3DB1524 Dynamic Braking Kit, 0.25 to 0.33hp @ 120V & 1.5hp @ 240V
F3DB224 Dynamic Braking Kit, 0.5hp @ 120V & 2hp @ 240V
F3DB324 Dynamic Braking Kit, 3hp @ 240V
F3DB524 Dynamic Braking Kit, 5hp @ 240V
F3LE Large （5hp）, NEMA 4/12 enclosure kit
F3M112 "M" Contactor Kit, 0.25 to 1hp @ 120V
F3M224 "M" Contactor Kit, 0.50 to 2hp @ 240V
F3M524 "M" Contactor Kit, 3 to 5hp @ 240V
F3N2C Focus 3, 1/4 to 2hp, 120/240V-1? input, Open Chassis, Non-Regen
F3N2E Focus 3, 1/4 to 2hp, 120/240V-1? input, NEMA 4/12, Non-Regen
F3N5C Focus 3, 3 to 5hp, 240V-1? input, Open Chassis, Non-Regen
F3N5E Focus 3, 3 to 5hp, 120/240V-1? input, NEMA 4/12, Non-Regen
F3NSBD Signal Isolation Board
F3R2C Focus 3, 1/4 to 2hp, 120/240V-1? input, Open Chassis, Regen
F3R2E Focus 3, 1/4 to 2hp, 120/240V-1? input, NEMA 4/12, Regen
F3R5C Focus 3, 3 to 5hp, 240V-1? input, Open Chassis, Regen
F3R5E Focus 3, 3 to 5hp, 120/240V-1? input, NEMA 4/12, Regen
F3SE Small （2hp）, NEMA 4/12 enclosure kit
F3TS Contains 1 each of the following Toggle Switches: Run / Jog, Forward / Reverse （regen only） ａnd Auto / Manual
FK6S-120 BL ａnd DX 6xxx Series, 6" motor
FK8K-120 BL ａnd DX 8xxx Series, 8" motor
FM-2 FM-2, Indexing Module
FM-3 FM-3, Programming Module
FM-3DN FM-3DN, Programming Module with DeviceNet
FM-3E FM-3E, Programming Module with Ethernet
FM-3PB FM-3PB, Programming Module with Profibus
FM-4 FM-4, Advanced Programming Module
FM-4DN FM-4DN, Advanced Programming Module with DeviceNet
FM-4E FM-4E, Advanced Programming Module with Ethernet
FM-4PB FM-4PB, Advanced Programming Module with Profibus
FS 6376-16-07 IP66 RFI filter, Commander SX Series
FX-208 FX Servo Drive, 230Vac, 10 amp, 8 lb-in to 16 in-lb Motor Torque
FX-208CE FX Servo Drive, 10 amp, 8 lb-in to 16 in-lb Motor Torque, CE Mark
FX-316 FX Servo Drive, 230Vac, 10 amp, 16 in-lb to 32 in-lb Motor Torque
FX-316CE FX Servo Drive, 10 amp, 16 in-lb to 32 in-lb Motor Torque, CE Mark
FX-340 FX Servo Drive, 230Vac, 15 amp, 40 in-lb to 80 in-lb Motor Torque
FX-340CE FX Servo Drive, 15 amp, 40 in-lb to 80 in-lb Motor Torque, CE Mark
FX-4120 FX Servo Drive, 230Vac, 20 amp, 120 in-lb to 240 in-lb Motor Torque
FX-4120CE FX Servo Drive, 20 amp, 120 in-lb to 240 in-lb Motor Torque, CE Mark
FX-455 FX Servo Drive, 230Vac, 15 amp, 55 in-lb to 110 in-lb Motor Torque
FX-455CE FX Servo Drive, 15 amp, 55 in-lb to 110 in-lb Motor Torque, CE Mark
FX-490 FX Servo Drive, 230Vac, 20 amp, 90 in-lb to 180 in-lb Motor Torque
FX-490CE FX Servo Drive, 20 amp, 90 in-lb to 180 in-lb Motor Torque, CE Mark
FX-6120 FX Servo Drive, 230Vac, 20 amp, 120 in-lb to 240 in-lb Motor Torque
FX-6120CE FX Servo Drive, 20 amp, 120 in-lb to 240 in-lb Motor Torque, CE Mark
FX-6210 FX Servo Drive, 460Vac, 30 amp, 210 in-lb to 390 in-lb Motor Torque
FX-6310 FX Servo Drive, 460Vac, 30 amp, 310 in-lb to 550 in-lb Motor Torque
FX-81000 FX Servo Drive, 460Vac, 50 amp, 1000 in-lb to 2000 in-lb Motor Torque
FX-8500 FX Servo Drive, 460Vac, 30 amp, 530 in-lb to 1000 in-lb Motor Torque
FX-8800 FX Servo Drive, 460Vac, 50 amp, 800 in-lb to 1600 in-lb Motor Torque
FXM5-UG 9500-9035 Field Regulator （FXM5） User Guide
GP1WE Extends standard warranty to 5 Years on Commander GP - Size 1
GP2WE Extends standard warranty to 5 Years on Commander GP - Size 2
GP3WE Extends standard warranty to 5 Years on Commander GP - Size 3
GPD1203LV Commander GP （Size 1）, 1hp, 230V - 3?, 3.8 A Cont. Output Current, Nema 1
GPD1204LV Commander GP （Size 1）, 1.5hp, 230V - 3?, 5.6 A Cont. Output Current, Nema 1
GPD1205LV Commander GP （Size 1）, 3hp, 230V - 3?, 9.5 A Cont. Output Current, Nema 1
GPD1401 Commander GP （Size 1）, 1hp, 460V - 3?, 2.1 A Cont. Output Current, Nema 1
GPD1402 Commander GP （Size 1）, 1.5hp, 460V - 3?, 2.8 A Cont. Output Current, Nema 1
GPD1403 Commander GP （Size 1）, 2hp, 460V - 3?, 3.8 A Cont. Output Current, Nema 1
GPD1404 Commander GP （Size 1）, 3hp, 460V - 3?, 5.6 A Cont. Output Current, Nema 1
GPD1405 Commander GP （Size 1）, 5hp, 460V - 3?, 9.5 A Cont. Output Current, Nema 1
GPD2201LV Commander GP （Size 2）, 3hp, 230V - 3?, 12 A Cont. Output Current, Nema 1
GPD2202LV Commander GP （Size 2）, 5hp, 230V - 3?, 16 A Cont. Output Current, Nema 1
GPD2203LV Commander GP （Size 2）, 7.5hp, 230V - 3?, 25 A Cont. Output Current, Nema 1
GPD2401 Commander GP （Size 2）, 7.5hp, 460V - 3?, 12 A Cont. Output Current, Nema 1
GPD2402 Commander GP （Size 2）, 10hp, 460V - 3?, 16 A Cont. Output Current, Nema 1
GPD2403 Commander GP （Size 2）, 15hp, 460V - 3?, 25 A Cont. Output Current, Nema 1
GPD3201LV Commander GP （Size 3）, 10hp, 230V - 3?, 34 A Cont. Output Current, Nema 1
GPD3202LV Commander GP （Size 3）, 15hp, 230V - 3?, 46A Cont. Output Current, Nema 1
GPD3203LV Commander GP （Size 3）, 20hp, 230V - 3?, 60A Cont. Output Current, Nema 1
GPD3204LV Commander GP （Size 3）, 25hp / 30hp, 230V - 3?, 70A Cont. Output Current, Nema 1
GPD3401 Commander GP （Size 3）, 25hp, 460V - 3?, 34 A Cont. Output Current, Nema 1
GPD3402 Commander GP （Size 3）, 30hp, 460V - 3?, 40 A Cont. Output Current, Nema 1
GPD3403 Commander GP （Size 3）, 30hp, 460V - 3?, 46 A Cont. Output Current, Nema 1
GPD3404 Commander GP （Size 3）, 40hp, 460V - 3?, 60 A Cont. Output Current, Nema 1
GPD3405 Commander GP （Size 3）, 50hp, 460V - 3?, 70 A Cont. Output Current, Nema 1
GPD4401 Commander GP （Size 4）, 75hp, 460V - 3?, 96A Cont. Output Current, Nema 1
GPD4402 Commander GP （Size 4）, 100hp, 460V - 3?, 124A Cont. Output Current, Nema 1
GPD4403 Commander GP （Size 4）, 125hp, 460V - 3?, 156A Cont. Output Current, Nema 1
GPD4404 Commander GP （Size 4）, 150hp, 460V - 3?, 180A Cont. Output Current, Nema 1
GPD4405 Commander GP （Size 4）, 150hp, 460V - 3?, 202A Cont. Output Current, Nema 1
IAC-24-G4 AC input module for use w/ XIOR-32 （90-140 Vac）
IBC-003 Connector at both ends, 3 ft Length
IBC-006 Connector at both ends, 6 ft Length
IBC-010
Connector at both ends, 10 ft Length
IBC-ECE-xxx External IBS to IBS
IBC-ICE-xxx Internal IBS to IBS
IBC-xxx Connector at both ends, Custom Length - 1 ft increments
IBS-11 InterBus-S Motion Controller
IBS-15 InterBus-S Ratio Controller w/ Analog I/O
IDC-24-G4 DC input module for use w/ XIOR-32 （10-32 VDC）
IM/0022/KI Spare incremental encoder feedback mating connector: for 75-190 frame motors
IM/0023/KI Spare sincos or resolver feedback mating connector: for 75-190 frame motors
IM/0039/KI Spare power mating connector: for 75-142 frame motors
IM/0053/KI Spare power mating connector: for 190A&B frame motors, rated at 54 Amps
IM/0054/KI Spare power mating connector: for High Power 190C&D frame motors, rated at 70 Amps
IOM-1 Input / Output Expander Module
JMP-12 I/O Jumper Strip （Qty 10）
LDR2-L-004-C Output Load Reactor, 230Vac, 4.2A Reactor Current, Low Impedance, Open Chassis
LDR2-L-006-C Output Load Reactor, 230Vac, 6.0A Reactor Current, Low Impedance, Open Chassis
LDR2-L-010-C Output Load Reactor, 230Vac, 9.6A Reactor Current, Low Impedance, Open Chassis
LDR2-L-015-C Output Load Reactor, 230Vac, 15.2A Reactor Current, Low Impedance, Open Chassis
LDR2-L-022-C Output Load Reactor, 230Vac, 22A Reactor Current, Low Impedance, Open Chassis
LDR2-L-028-C Output Load Reactor, 230Vac, 28A Reactor Current, Low Impedance, Open Chassis
LDR2-L-042-C Output Load Reactor, 230Vac, 42A Reactor Current, Low Impedance, Open Chassis
LDR2-L-054-C Output Load Reactor, 230Vac, 54A Reactor Current, Low Impedance, Open Chassis
LDR2-L-068-C Output Load Reactor, 230Vac, 68A Reactor Current, Low Impedance, Open Chassis
LDR2-L-080-C Output Load Reactor, 230Vac, 80A Reactor Current, Low Impedance, Open Chassis
LDR2-L-104-C Output Load Reactor, 230Vac, 104A Reactor Current, Low Impedance, Open Chassis
LDR2-L-130-C Output Load Reactor, 230Vac, 130A Reactor Current, Low Impedance, Open Chassis
LDR2-L-154-C Output Load Reactor, 230Vac, 154A Reactor Current, Low Impedance, Open Chassis
LDR2-L-192-C Output Load Reactor, 230Vac, 192A Reactor Current, Low Impedance, Open Chassis
LDR2-L-248-C Output Load Reactor, 230Vac, 248A Reactor Current, Low Impedance, Open Chassis
LDR2-L-312-C Output Load Reactor, 230Vac, 312A Reactor Current, Low Impedance, Open Chassis
LDR2-L-360-C Output Load Reactor, 230Vac, 360A Reactor Current, Low Impedance, Open Chassis
LDR2-L-480-C Output Load Reactor, 230Vac, 480A Reactor Current, Low Impedance, Open Chassis
LDR4-L-003-C Output Load Reactor, 460Vac, 3A Reactor Current, Low Impedance, Open Chassis
LDR4-L-005-C Output Load Reactor, 460Vac, 4.8A Reactor Current, Low Impedance, Open Chassis
LDR4-L-008-C Output Load Reactor, 460Vac, 7.6A Reactor Current, Low Impedance, Open Chassis
LDR4-L-011-C Output Load Reactor, 460Vac, 11A Reactor Current, Low Impedance, Open Chassis
LDR4-L-014-C Output Load Reactor, 460Vac, 14A Reactor Current, Low Impedance, Open Chassis
LDR4-L-021-C Output Load Reactor, 460Vac, 21A Reactor Current, Low Impedance, Open Chassis
LDR4-L-027-C Output Load Reactor, 460Vac, 27A Reactor Current, Low Impedance, Open Chassis
LDR4-L-034-C Output Load Reactor, 460Vac, 34A Reactor Current, Low Impedance, Open Chassis
LDR4-L-040-C Output Load Reactor, 460Vac, 40A Reactor Current, Low Impedance, Open Chassis
LDR4-L-052-C Output Load Reactor, 460Vac, 52A Reactor Current, Low Impedance, Open Chassis
LDR4-L-065-C Output Load Reactor, 460Vac, 65A Reactor Current, Low Impedance, Open Chassis
LDR4-L-077-C Output Load Reactor, 460Vac, 77A Reactor Current, Low Impedance, Open Chassis
LDR4-L-096-C Output Load Reactor, 460Vac, 96A Reactor Current, Low Impedance, Open Chassis
LDR4-L-124-C Output Load Reactor, 460Vac, 124A Reactor Current, Low Impedance, Open Chassis
LDR4-L-156-C Output Load Reactor, 460Vac, 156A Reactor Current, Low Impedance, Open Chassis
LDR4-L-180-C Output Load Reactor, 230Vac, 192A Reactor Current, Low Impedance, Open Chassis
LDR4-L-240-C Output Load Reactor, 460Vac, 240A Reactor Current, Low Impedance, Open Chassis
LDR4-L-302-C Output Load Reactor, 460Vac, 302A Reactor Current, Low Impedance, Open Chassis
LDR5-L-006-C Output Load Reactor, 575Vac, 6.1A Reactor Current, Low Impedance, Open Chassis
LDR5-L-009-C Output Load Reactor, 575Vac, 9A Reactor Current, Low Impedance, Open Chassis
LDR5-L-011-C Output Load Reactor, 575Vac, 11A Reactor Current, Low Impedance, Open Chassis
LDR5-L-017-C Output Load Reactor, 575Vac, 17A Reactor Current, Low Impedance, Open Chassis
LDR5-L-022-C Output Load Reactor, 575Vac, 22A Reactor Current, Low Impedance, Open Chassis
LDR5-L-027-C Output Load Reactor, 575Vac, 27A Reactor Current, Low Impedance, Open Chassis
LF1A 1? 240V, 12 amp, for FX-208 - FX-455
LF3A 3? 480V, 16 amp, for FX-490 - FX-6120
LOGICSTICK The logicStick plugs into the front of the SK series drive ａnd enables you to program PLC functions within the drive.
LR2-L-010-C Input Line Reactor, 230Vac, 9.6A Reactor Current, Low Impedance, Open Chassis
LR2-L-015-C Input Line Reactor, 230Vac, 15.2A Reactor Current, Low Impedance, Open Chassis
LR2-L-022-C Input Line Reactor, 230Vac, 22A Reactor Current, Low Impedance, Open Chassis
LR2-L-028-C Input Line Reactor, 230Vac, 28A Reactor Current, Low Impedance, Open Chassis
LR2-L-042-C Input Line Reactor, 230Vac, 42A Reactor Current, Low Impedance, Open Chassis
LR2-L-054-C Input Line Reactor, 230Vac, 54A Reactor Current, Low Impedance, Open Chassis
LR2-L-068-C Input Line Reactor, 230Vac, 68A Reactor Current, Low Impedance, Open Chassis
LR2-L-080-C Input Line Reactor, 230Vac, 80A Reactor Current, Low Impedance, Open Chassis
LR2-L-104-C Input Line Reactor, 230Vac, 104A Reactor Current, Low Impedance, Open Chassis
LR2-L-130-C Input Line Reactor, 230Vac, 130A Reactor Current, Low Impedance, Open Chassis
LR2-L-154-C Input Line Reactor, 230Vac, 154A Reactor Current, Low Impedance, Open Chassis
LR2-L-192-C Input Line Reactor, 230Vac, 192A Reactor Current, Low Impedance, Open Chassis
LR2-L-248-C Input Line Reactor, 230Vac, 248A Reactor Current, Low Impedance, Open Chassis
LR2-L-312-C Input Line Reactor, 230Vac, 312A Reactor Current, Low Impedance, Open Chassis
LR2-L-360-C Input Line Reactor, 230Vac, 360A Reactor Current, Low Impedance, Open Chassis
LR2-L-480-C Input Line Reactor, 230Vac, 480A Reactor Current, Low Impedance, Open Chassis
LR4-L-005-C Input Line Reactor, 460Vac, 4.8A Reactor Current, Low Impedance, Open Chassis
LR4-L-008-C Input Line Reactor, 460Vac, 7.6A Reactor Current, Low Impedance, Open Chassis
LR4-L-011-C Input Line Reactor, 460Vac, 11A Reactor Current, Low Impedance, Open Chassis
LR4-L-014-C Input Line Reactor, 460Vac, 14A Reactor Current, Low Impedance, Open Chassis
LR4-L-021-C Input Line Reactor, 460Vac, 21A Reactor Current, Low Impedance, Open Chassis
LR4-L-027-C Input Line Reactor, 460Vac, 27A Reactor Current, Low Impedance, Open Chassis
LR4-L-034-C Input Line Reactor, 460Vac, 34A Reactor Current, Low Impedance, Open Chassis
LR4-L-040-C Input Line Reactor, 460Vac, 40A Reactor Current, Low Impedance, Open Chassis
LR4-L-052-C Input Line Reactor, 460Vac, 52A Reactor Current, Low Impedance, Open Chassis
LR4-L-065-C Input Line Reactor, 460Vac, 65A Reactor Current, Low Impedance, Open Chassis
LR4-L-077-C Input Line Reactor, 460Vac, 77A Reactor Current, Low Impedance, Open Chassis
LR4-L-096-C Input Line Reactor, 460Vac, 96A Reactor Current, Low Impedance, Open Chassis
LR4-L-124-C Input Line Reactor, 460Vac, 124A Reactor Current, Low Impedance, Open Chassis
LR4-L-156-C Input Line Reactor, 460Vac, 156A Reactor Current, Low Impedance, Open Chassis
LR4-L-180-C Input Line Reactor, 460Vac, 180A Reactor Current, Low Impedance, Open Chassis
LR4-L-240-C Input Line Reactor, 460Vac, 240A Reactor Current, Low Impedance, Open Chassis
LR4-L-302-C Input Line Reactor, 460Vac, 302A Reactor Current, Low Impedance, Open Chassis
LR4-L-361-C Input Line Reactor, 460Vac, 361A Reactor Current, Low Impedance, Open Chassis
LR4-L-414-C Input Line Reactor, 460Vac, 414A Reactor Current, Low Impedance, Open Chassis
LR4-L-477-C Input Line Reactor, 460Vac, 477A Reactor Current, Low Impedance, Open Chassis
LR5-L-009-C Input Line Reactor, 575Vac, 9A Reactor Current, Low Impedance, Open Chassis
LR5-L-011-C Input Line Reactor, 575Vac, 11A Reactor Current, Low Impedance, Open Chassis
LR5-L-017-C Input Line Reactor, 575Vac, 17A Reactor Current, Low Impedance, Open Chassis
LR5-L-022-C Input Line Reactor, 575Vac, 22A Reactor Current, Low Impedance, Open Chassis
LR5-L-027-C Input Line Reactor, 575Vac, 27A Reactor Current, Low Impedance, Open Chassis
LYNX 8 Lynx DC Analogue Controller, 2.2kW @ 380-440Vac single phase, 1.1kW @ 220-240AC single phase, Open Chassis
LYNX16 Lynx DC Analogue Controller, 4kW @ 380-440Vac single phase, 2kW @ 220-240AC single phase, Open Chassis
LYNX30 Lynx DC Analogue Controller, 7.5kW @ 380-440Vac single phase, 3.75kW @ 220-240AC single phase, Open Chassis
M105-14M Mentor II Drive, 20 to 35 hp @ 208-240Vac Input, 40 to 50 hp @ 380-480Vac Input, Non-Regen
M105R-14M Mentor II Drive, 20 to 35 hp @ 208-240Vac Input, 40 to 50hp @ 380-480Vac Input, Regen
M105WE Extends standard warranty to 5 Years on Mentor II - 105A Model
M1200-14M Mentor II Drive, 300 to 350 hp @ 208-240Vac Input, 600 to 700 hp @ 380-480Vac Input, Non-Regen
M1200-14M660 Mentor II Drive, 575-660Vac Input, 1200A Cont. Output Current, Non-Regen （208-480Vac Control Power Required）
M1200R-14M Mentor II Drive, 300 to 350 hp @ 208-240Vac Input, 600 to 700 hp @ 380-480Vac Input, Regen
M1200R-14M660 Mentor II Drive, 575-660Vac Input, 1200A Cont. Output Current, Regen （208-480Vac Control Power Required）
M1200WE Extends standard warranty to 5 Years on Mentor II - 1200A Model
M155-14M Mentor II Drive, 30 hp @ 208-240Vac Input, 60 to 75 hp @ 380-480Vac Input, Non-Regen
M155R-14M Mentor II Drive, 30 hp @ 208-240Vac Input, 60 to 75 hp @ 380-480Vac Input, Regen
M155WE Extends standard warranty to 5 Years on Mentor II - 155A Model
M1850-14M Mentor II Drive, 400 to 500 hp @ 208-240Vac Input, 800 to 1000hp @ 380-480Vac Input, Non-Regen
M1850-14M660 Mentor II Drive, 575-660Vac Input, 1850A Cont. Output Current, Non-Regen （208-480Vac Control Power Required）
M1850R-14M Mentor II Drive, 400 to 500 @ 208-240Vac Input, 800 to 1000 hp @ 380-480Vac Input, Regen
M1850R-14M660 Mentor II Drive, 575-660Vac Input, 1850A Cont. Output Current, Regen （208-480Vac Control Power Required）
M1850WE Extends standard warranty to 5 Years on Mentor II - 1850A Model
M210-14M Mentor II Drive, 40 to 50 hp @ 208-240Vac Input, 100 hp @ 380-480Vac Input, Non-Regen
M210R-14M Mentor II Drive, 40 to 50 hp @ 208-240Vac Input, 100 hp @ 380-480Vac Input, Regen
M210WE Extends standard warranty to 5 Years on Mentor II - 210A Model
M25-14M Mentor II Drive, 3 to 7 hp @ 208-240Vac Input, 5 to 10 hp @ 380-480Vac Input, Non-Regen
M25R-14M Mentor II Drive, 3 to 7 hp @ 208-240Vac Input, 5 to 10 hp @ 380-480Vac Input, Regen
M25WE Extends standard warranty to 5 Years on Mentor II - 25A Model
M350-14M Mentor II Drive, 75 hp @ 208-240Vac Input, 150 hp @ 380-480Vac Input, Non-Regen
M350-14M660 Mentor II Drive, 575-660Vac Power Input, 350A Cont. Output Current, Non-Regen （208-480Vac Control Power Required）
M350R-14M Mentor II Drive, 75 hp @ 208-240Vac Input, 350hp @ 380-480Vac Input, Regen
M350R-14M660 Mentor II Drive, 575-660Vac Input, 350A Cont. Output Current, Regen （208-480Vac Control Power Required）
M350WE Extends standard warranty to 5 Years on Mentor II - 350A Model
M420-14M Mentor II Drive, 100 hp @ 208-240Vac Input, 200 hp @ 380-480Vac Input, Non-Regen
M420-14M660 Mentor II Drive, 575-660Vac Input, 420A Cont. Output Current, Non-Regen （208-480Vac Control Power Required）
M420R-14M Mentor II Drive, 100 hp @ 208-240Vac Input, 200 hp @ 380-480Vac Input, Regen
M420R-14M660 Mentor II Drive, 575-660Vac Input, 420A Cont. Output Current, Regen （208-480Vac Control Power Required）
M420WE Extends standard warranty to 5 Years on Mentor II - 420A Model
M45-14M Mentor II Drive, 7.5 to 10 hp @ 208-240Vac Input, 15 to 2
M45R-14M Mentor II Drive, 7.5 to 10 hp @ 208-240Vac Input, 15 to 20 hp @ 380-480Vac Input, Regen
M45WE Extends standard warranty to 5 Years on Mentor II - 45A Model
M550-14M Mentor II Drive, 125 hp @ 208-240Vac Input, 250 hp @ 380-480Vac Input, Non-Regen
M550-14M660 Mentor II Drive, 575-660Vac Input, 550A Cont. Output Current, Non-Regen （208-480Vac Control Power Required）
M550R-14M Mentor II Drive, 125 hp @ 208-240Vac Input, 250 hp @ 380-480Vac Input, Regen
M550R-14M660 Mentor II Drive, 575-660Vac Input, 550A Cont. Output Current, Regen （208-480Vac Control Power Required）
M550WE Extends standard warranty to 5 Years on Mentor II - 550A Model
M700-14M Mentor II Drive, 150 hp @ 208-240Vac Input, 300 hp @ 380-480Vac Input, Non-Regen
M700-14M660 Mentor II Drive, 575-660Vac Input, 700A Cont. Output Current, Non-Regen （208-480Vac Control Power Required）
M700R-14M Mentor II Drive, 150 hp @ 208-240Vac Input, 300 hp @ 380-480Vac Input, Regen
M700R-14M660 Mentor II Drive, 575-660Vac Input, 700A Cont. Output Current, Regen （208-480Vac Control Power Required）
M700WE Extends standard warranty to 5 Years on Mentor II - 700A Model
M75-14M Mentor II Drive, 15 hp @ 208-240Vac Input, 25 to 30 hp @ 380-480Vac Input, Non-Regen
M75R-14M Mentor II Drive, 15 hp @ 208-240Vac Input, 25 to 30 hp @ 380-480Vac Input, Regen
M75WE Extends standard warranty to 5 Years on Mentor II - 75A Model
M825-14M Mentor II Drive, 200 hp @ 208-240Vac Input, 400 hp @ 380-480Vac Input, Non-Regen
M825-14M660 Mentor II Drive, 575-660Vac Input, 825A Cont. Output Current, Non-Regen （208-480Vac Control Power Required）
M825R-14M Mentor II Drive, 200 hp @ 208-240Vac Input, 400 hp @ 380-480Vac Input, Regen
M825R-14M660 Mentor II Drive, 575-660Vac Input, 825A Cont. Output Current, Regen （208-480Vac Control Power Required）
M825WE Extends standard warranty to 5 Years on Mentor II - 825A Model
M900-14M Mentor II Drive, 250 hp @ 208-240Vac Input, 500 hp @ 380-480Vac Input, Non-Regen
M900-14M660 Mentor II Drive, 575-660Vac Input, 900A Cont. Output Current, Non-Regen （208-480Vac Control Power Required）
M900R-14M Mentor II Drive, 250 hp @ 208-240Vac Input, 500 hp @ 380-480Vac Input, Regen
M900R-14M660 Mentor II Drive, 575-660Vac Input, 900A Cont. Output Current, Regen （208-480Vac Control Power Required）
M900WE Extends standard warranty to 5 Years on Mentor II - 900A Model
M＇AX 403AN M＇Ax Servo Drive, 3.5A Cont. Output Current, 7A Peak Current （2 Sec）, Supply Voltage: 380-480Vac, with Display ａnd Keypad
M＇AX 406AN M＇Ax Servo Drive, 6.5A Cont. Output Current, 13A Peak Current （2 Sec）, Supply Voltage: 380-480Vac, with Display ａnd Keypad
M＇AX 409AN M＇Ax Servo Drive, 9.5A Cont. Output Current, 19A Peak Current （2 Sec）, Supply Voltage: 380-480Vac, with Display ａnd Keypad
M＇AX 412AN M＇Ax Servo Drive, 12.5A Cont. Output Current, 25A Peak Current （2 Sec）, Supply Voltage: 380-480Vac, with Display ａnd Keypad
MAXAX100 MaxAx, 220V - 3?, 4.2A Output Current, Nema 1
MAXAX200 MaxAx, 220V - 3?, 14A Output Current, Nema 1
MAXAX300 MaxAx, 220V - 3?, 21.2A Output Current, Nema 1
MC-1 Merge Controller - up to 4 lines when used in conjunction w/ PCM-19＇s
MC202-00-000 MC202, 2 Axis controller, 1 servo with encoder follower capability or 2 stepper axis.
MC206-00-000 MC206, 1 to 7 1/2 Axis controller, with 1 servo or stepper axis enabled
MC224-00-000 MC224, 1 to 24 Axis Controller, accepts up to 4 Daughter Boards
MD02R-04 4 line, 20 character back-lit display with function / numeric keypad （with bridging capability）.
MD03R-02 2 line, 20 character back-lit display with function / numeric keypad （no bridging capability）.
MD-24 Profibus-DP interface card （Mentor II, Quantum III）
MD24-UG MD-24 Interface Card （Profibus-DP） User Guide
MD-25 DeviceNet interface interface card （Mentor II, Quantum III）
MD25-UG MD-25 Interface Card （DeviceNet） User Guide
MD-29AN MD29, 32 Bit Co-processor with CTNet （Not compatible with MD-29AN-RevD） （Mentor II, Quantum III）
MD-29AN-RevD MD29, 32 Bit Coprocessor with CTNet-RevD （Current Version of CTNet） （Mentor II, Quantum III）
MD-404-00-000 MDS Drive Module, 4A Cont. Output Current, 8A Peak Current, with Backplane ａnd Fuses
MD-407-00-000 MDS Drive Module, 7A Cont. Output Current, 14A Peak Current, with Backplane ａnd Fuses
MD-410-00-000 MDS Drive Module, 10A Cont. Output Current, 20A Peak Current, with Backplane ａnd Fuses
MD-420-00-000 MDS Drive Module, 20A Cont. Output Current, 40A Peak Current, with Backplane ａnd Fuses
MD-434-00-000 MDS Drive Module, 34A Cont. Output Current, 68A Peak Current, with Backplane ａnd Fuses
MDIBS InterBus-S interface card （Mentor II, Quantum III）
MDIBS-UG MDIBS Interface Card （Interbus-S） User Guide
MentorSoft Windows based Configuration Tool for Mentor
MENTOR-UG Mentor II User Guide
MF-1250-20 AC Line Filter, 3?, 20 amp, 480Vac （MP-1250）
MF-2500-35 AC Line Filter, 3?, 35 amp, 480Vac （MP-2500）
MF-5000-65 AC Line Filter, 3?, 65 amp, 480Vac （MP-5000）
MFG-1 Allows system speed to be adjusted digitally
MGE-205-CBNS-0000 MG 2" Servo Motor, English Mounting Flange, 5 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed, 24VDC Brake
MGE-205-CONS-0000 MG 2" Servo Motor, English Mounting Flange, 5 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed
MGE-208-CBNS-0000 MG 2" Servo Motor, English Mounting Flange, 9 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed, 24VDC Brake
MGE-208-CONS-0000 MG 2" Servo Motor, English Mounting Flange, 9 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed
MGE-316-CBNS-0000 MG 3" Servo Motor, English Mounting Flange, 18.6 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed, 24VDC Brake
MGE-316-CONS-0000 MG 3" Servo Motor, English Mounting Flange, 18.6 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed
MGE-340-CBNS-0000 MG 3" Servo Motor, English Mounting Flange, 48 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 24VDC Brake
MGE-340-CONS-0000 MG 3" Servo Motor, English Mounting Flange, 48 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
MGE-4120-CBNS-0000 MG 4" Servo Motor, English Mounting Flange, 162 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 24VDC Brake
MGE-4120-CONS-0000 MG 4" Servo Motor, English Mounting Flange, 162 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
MGE-455-CBNS-0000 MG 4" Servo Motor, English Mounting Flange, 68 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 24VDC Brake

MGE-455-CONS-0000 MG 4" Servo Motor, English Mounting Flange, 68 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
MGE-490-CBNS-0000 MG 4" Servo Motor, English Mounting Flange, 120 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 24VDC Brake
MGE-490-CONS-0000 MG 4" Servo Motor, English Mounting Flange, 100 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
MGFF-xxx Standard Duty Motor Feedback Cable for 2" & 3" Motors, 8 pair w/shield, Custom Length - 1 ft increments （PTO1A-16-23SSR to NT, MG, MH Motors）
MGFS-xxx Standard Duty Motor Feedback Cable for 2" & 3" Motors, 8 pair w/shield, Custom Length - 1 ft increments, minimum 20 ft per order （DB26P-SS, DB26P-SA to PT06A-16-23-SSR）
MGM-205-CBNS-0000 MG 2" Servo Motor, Metric Mounting Flange, 5 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed, 24VDC Brake
MGM-205-CONS-0000 MG 2" Servo Motor, Metric Mounting Flange, 5 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed
MGM-208-CBNS-0000 MG 2" Servo Motor, Metric Mounting Flange, 9 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed, 24VDC Brake
MGM-208-CONS-0000 MG 2" Servo Motor, Metric Mounting Flange, 9 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed
MGM-316-CBNS-0000 MG 3" Servo Motor, Metric Mounting Flange, 18.6 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed, 24VDC Brake
MGM-316-CONS-0000 MG 3" Servo Motor, Metric Mounting Flange, 18.6 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed
MGM-340-CBNS-0000 MG 3" Servo Motor, Metric Mounting Flange, 48 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 24VDC Brake
MGM-340-CONS-0000 MG 3" Servo Motor, Metric Mounting Flange, 48 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
MGM-4120-CBNS-0000 MG 4" Servo Motor, Metric Mounting Flange, 162 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 24VDC Brake
MGM-4120-CONS-0000 MG 4" Servo Motor, Metric Mounting Flange, 162 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
MGM-455-CBNS-0000 MG 4" Servo Motor, Metric Mounting Flange, 68 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 24VDC Brake
MGM-455-CONS-0000 MG 4" Servo Motor, Metric Mounting Flange, 68 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
MGM-490-CBNS-0000 MG 4" Servo Motor, Metric Mounting Flange, 120 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 24VDC Brake

MGM-490-CONS-0000 MG 4" Servo Motor, Metric Mounting Flange, 120 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
MHE-316-CBNS-0000 MH 3" Servo Motor, English Mounting Flange, 21.5 lbs-in Cont. Torque, MS Connectors, 480Vac, 4000 RPM Max Speed, 24VDC Brake
MHE-316-CONS-0000 MH 3" Servo Motor, English Mounting Flange, 21.5 lbs-in Cont. Torque, MS Connectors, 480Vac, 4000 RPM Max Speed
MHE-340-CBNS-0000 MH 3" Servo Motor, English Mounting Flange, 46 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed, 24VDC Brake
MHE-340-CONS-0000 MH 3" Servo Motor, English Mounting Flange, 46 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed
MHE-455-CBNS-0000 MH 4" Servo Motor, English Mounting Flange, 72.5 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed, 24VDC Brake
MHE-455-CONS-0000 MH 4" Servo Motor, English Mounting Flange, 72.5 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed
MHE-490-CBNS-0000 MH 4" Servo Motor, English Mounting Flange, 105 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed, 24VDC Brake
MHE-490-CONS-0000 MH 4" Servo Motor, English Mounting Flange, 105 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed
MHM-316-CBNS-0000 MH 3" Servo Motor, Metric Mounting Flange, 21.5 lbs-in Cont. Torque, MS Connectors, 480Vac, 4000 RPM Max Speed, 24VDC Brake
MHM-316-CONS-0000 MH 3" Servo Motor, Metric Mounting Flange, 21.5 lbs-in Cont. Torque, MS Connectors, 480Vac, 4000 RPM Max Speed
MHM-340-CBNS-0000 MH 3" Servo Motor, Metric Mounting Flange, 46 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed, 24VDC Brake
MHM-340-CONS-0000 MH 3" Servo Motor, Metric Mounting Flange, 46 lbs-in Cont. Torque, MS Connectors, 3000 RPM Max Speed
MHM-455-CBNS-0000 MH 4" Servo Motor, Metric Mounting Flange, 72.5 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed, 24VDC Brake
MHM-455-CONS-0000 MH 4" Servo Motor, Metric Mounting Flange, 72.5 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed
MHM-490-CBNS-0000 MH 4" Servo Motor, Metric Mounting Flange, 105 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed, 24VDC Brake
MHM-490-CONS-0000 MH 4" Servo Motor, Metric Mounting Flange, 105 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed
HM-6120-CBNS-0000 MH 6" Servo Motor, Metric Mounting Flange, 120 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed, 24VDC Brake
MHM-6120-CONS-0000 MH 6" Servo Motor, Metric Mounting Flange, 120 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed
MHM-6200-CBNS-0000 MH 6" Servo Motor, Metric Mounting Flange, 234 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed, 24VDC Brake
MHM-6200-CONS-0000 MH 6" Servo Motor, Metric Mounting Flange, 234 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed
MHM-6300-CBNS-0000 MH 6" Servo Motor, Metric Mounting Flange, 299 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed, 24VDC Brake
MHM-6300-CONS-0000 MH 6" Servo Motor, Metric Mounting Flange, 299 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed
MHM-8250-CBNS-0000 MH 8" Servo Motor, Metric Mounting Flange, 285 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed, 24VDC Brake
MHM-8250-CONS-0000 MH 8" Servo Motor, Metric Mounting Flange, 285 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed
MHM-8500-CBNS-0000 MH 8" Servo Motor, Metric Mounting Flange, 530 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed, 24VDC Brake
MHM-8500-CONS-0000 MH 8" Servo Motor, Metric Mounting Flange, 530 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed
MHM-8750-CBNS-0000 MH 8" Servo Motor, Metric Mounting Flange, 748 lbs-in Cont. Torque, MS Connectors, 480Vac, 2500 RPM Max Speed, 24VDC Brake
MHM-8750-CONS-0000 MH 8" Servo Motor, Metric Mounting Flange, 748 lbs-in Cont. Torque, MS Connectors, 480Vac, 2500 RPM Max Speed
MLP-002-00 Logic Power Supply, 2.1 A, +24 VDC, Universal Input 90 to 264 Vac （Epsilon, MP-1250）
MLP-005-00 Logic Power Supply, 5.0 A, +24 VDC, Universal Input 90 to 264 Vac （Epsilon, MP-2500）
MLP-010-00 Logic Power Supply, 10 A, +24 VDC, Universal Input 90 to 264 Vac （Epsilon, MP-5000）
MLR-2580-00 AC Line Reactor, 3?, 80 amp, 25 mH （MP-5000, only required on systems using over 35kW of continuous power）
MNT2N100HP-N1 Mentor II ExpressPak, 100hp, 240Vac Input, 344 Amps output, NEMA 1, Non-Regen
MNT2N100HP-N12 Mentor II ExpressPak, 100hp, 240Vac Input, 344 Amps output, NEMA 12, Non-Regen
MNT2N10HP-N1 Mentor II ExpressPak, 10hp, 240Vac Input, 38 Amps output, NEMA 1, Non-Regen
MNT2N10HP-N12 Mentor II ExpressPak, 10hp, 240Vac Input, 38 Amps output, NEMA 12, Non-Regen
MNT2N125HP-N1 Mentor II ExpressPak, 125hp, 240Vac Input, 426 Amps output, NEMA 1, Non-Regen
MNT2N125HP-N12 Mentor II ExpressPak, 125hp, 240Vac Input, 426 Amps output, NEMA 12, Non-Regen
MNT2N150HP-N1 Mentor II ExpressPak, 150hp, 240Vac Input, 506 Amps output, NEMA 1, Non-Regen
MNT2N150HP-N12 Mentor II ExpressPak, 150hp, 240Vac Input, 506 Amps output, NEMA 12, Non-Regen
MNT2N15HP-N1 Mentor II ExpressPak, 15hp, 240Vac Input, 55 Amps output, NEMA 1, Non-Regen
MNT2N15HP-N12 Mentor II ExpressPak, 15hp, 240Vac Input, 55 Amps output, NEMA 12, Non-Regen
MNT2N200HP-N1 Mentor II ExpressPak, 200hp, 240Vac Input, 675 Amps output, NEMA 1, Non-Regen
MNT2N200HP-N12 Mentor II ExpressPak, 200hp, 240Vac Input, 675 Amps output, NEMA 12, Non-Regen
MNT2N20HP-N1 Mentor II ExpressPak, 20hp, 240Vac Input, 72 Amps output, NEMA 1, Non-Regen
MNT2N20HP-N12 Mentor II ExpressPak, 20hp, 240Vac Input, 72 Amps output, NEMA 12, Non-Regen
MNT2N25HP-N1 Mentor II ExpressPak, 25hp, 240Vac Input, 89 Amps output, NEMA 1, Non-Regen
MNT2N25HP-N12 Mentor II ExpressPak, 25hp, 240Vac Input, 89 Amps output, NEMA 12, Non-Regen
MNT2N30HP-N1 Mentor II ExpressPak, 30hp, 240Vac Input, 106 Amps output, NEMA 1, Non-Regen
MNT2N30HP-N12 Mentor II ExpressPak, 30hp, 240Vac Input, 106 Amps output, NEMA 12, Non-Regen
MNT2N40HP-N1 Mentor II ExpressPak, 40hp, 240Vac Input, 140 Amps output, NEMA 1, Non-Regen
MNT2N40HP-N12 Mentor II ExpressPak, 40hp, 240Vac Input, 140 Amps output, NEMA 12, Non-Regen
MNT2N50HP-N1 Mentor II ExpressPak, 50hp, 240Vac Input, 172 Amps output, NEMA 1, Non-Regen
MNT2N50HP-N12 Mentor II ExpressPak, 50hp, 240Vac Input, 172 Amps output, NEMA 12, Non-Regen
MNT2N5HP-N1 Mentor II ExpressPak, 5hp, 240Vac Input, 20 Amps output, NEMA 1, Non-Regen
MNT2N5HP-N12 Mentor II ExpressPak, 5hp, 240Vac Input, 20 Amps output, NEMA 12, Non-Regen
MNT2N60HP-N1 Mentor II ExpressPak, 60hp, 240Vac Input, 206 Amps output, NEMA 1, Non-Regen
MNT2N60HP-N12 Mentor II ExpressPak, 60hp, 240Vac Input, 206 Amps output, NEMA 12, Non-Regen
MNT2N7.5HP-N1 Mentor II ExpressPak, 7.5hp, 240Vac Input, 29 Amps output, NEMA 1, Non-Regen
MNT2N7.5HP-N12 Mentor II ExpressPak, 7.5hp, 240Vac Input, 29 Amps output, NEMA 12, Non-Regen
MNT2N75HP-N1 Mentor II ExpressPak, 75hp, 240Vac Input, 255 Amps output, NEMA 1, Non-Regen
MNT2N75HP-N12 Mentor II ExpressPak, 75hp, 240Vac Input, 255 Amps output, NEMA 12, Non-Regen
MNT2R100HP-N1 Mentor II ExpressPak, 100hp, 240Vac Input, 344 Amps output, NEMA 1, Regen
MNT2R100HP-N12 Mentor II ExpressPak, 100hp, 240Vac Input, 344 Amps output, NEMA 12, Regen
MNT2R10HP-N1 Mentor II ExpressPak, 10hp, 240Vac Input, 38 Amps output, NEMA 1, Regen
MNT2R10HP-N12 Mentor II ExpressPak, 10hp, 240Vac Input, 38 Amps output, NEMA 12, Regen
MNT2R125HP-N1 Mentor II ExpressPak, 125hp, 240Vac Input, 426 Amps output, NEMA 1, Regen
MNT2R125HP-N12 Mentor II ExpressPak, 125hp, 240Vac Input, 426 Amps output, NEMA 12, Regen
MNT2R150HP-N1 Mentor II ExpressPak, 150hp, 240Vac Input, 506 Amps output, NEMA 1, Regen
MNT2R150HP-N12 Mentor II ExpressPak, 150hp, 240Vac Input, 506 Amps output, NEMA 12, Regen
MNT2R15HP-N1 Mentor II ExpressPak, 15hp, 240Vac Input, 55 Amps output, NEMA 1, Regen
MNT2R15HP-N12 Mentor II ExpressPak, 15hp, 240Vac Input, 55 Amps output, NEMA 12, Regen
MNT2R200HP-N1 Mentor II ExpressPak, 200hp, 240Vac Input, 675 Amps output, NEMA 1, Regen
MNT2R200HP-N12 Mentor II ExpressPak, 200hp, 240Vac Input, 675 Amps output, NEMA 12, Regen
MNT2R20HP-N1 Mentor II ExpressPak, 20hp, 240Vac Input, 72 Amps output, NEMA 1, Regen
MNT2R20HP-N12 Mentor II ExpressPak, 20hp, 240Vac Input, 72 Amps output, NEMA 12, Regen
MNT2R25HP-N1 Mentor II ExpressPak, 25hp, 240Vac Input, 89 Amps output, NEMA 1, Regen
MNT2R25HP-N12 Mentor II ExpressPak, 25hp, 240Vac Input, 89 Amps output, NEMA 12, Regen
MNT2R30HP-N1 Mentor II ExpressPak, 30hp, 240Vac Input, 106 Amps output, NEMA 1, Regen
MNT2R30HP-N12 Mentor II ExpressPak, 30hp, 240Vac Input, 106 Amps output, NEMA 12, Regen
MNT2R40HP-N1 Mentor II ExpressPak, 40hp, 240Vac Input, 140 Amps output, NEMA 1, Regen
MNT2R40HP-N12 Mentor II ExpressPak, 40hp, 240Vac Input, 140 Amps output, NEMA 12, Regen
MNT2R50HP-N1 Mentor II ExpressPak, 50hp, 240Vac Input, 172 Amps output, NEMA 1, Regen
MNT2R50HP-N12 Mentor II ExpressPak, 50hp, 240Vac Input, 172 Amps output, NEMA 12, Regen
MNT2R5HP-N1 Mentor II ExpressPak, 5hp, 240Vac Input, 20 Amps output, NEMA 1, Regen
MNT2R5HP-N12 Mentor II ExpressPak, 5hp, 240Vac Input, 20 Amps output, NEMA 12, Regen
MNT2R60HP-N1 Mentor II ExpressPak, 60hp, 240Vac Input, 206 Amps output, NEMA 1, Regen
MNT2R60HP-N12 Mentor II ExpressPak, 60hp, 240Vac Input, 206 Amps output, NEMA 12, Regen
MNT2R7.5HP-N1 Mentor II ExpressPak, 7.5hp, 240Vac Input, 29 Amps output, NEMA 1, Regen
MNT2R7.5HP-N12 Mentor II ExpressPak, 7.5hp, 240Vac Input, 29 Amps output, NEMA 12, Regen
MNT2R75HP-N1 Mentor II ExpressPak, 75hp, 240Vac Input, 255 Amps output, NEMA 1, Regen
MNT2R75HP-N12 Mentor II ExpressPak, 75hp, 240Vac Input, 255 Amps output, NEMA 12, Regen
MNT4N1000HP-N1 Mentor II ExpressPak, 1000hp, 480Vac Input, 1660 Amps output, NEMA 1, Non-Regen
MNT4N1000HP-N12 Mentor II ExpressPak, 1000hp, 480Vac Input, 1660 Amps output, NEMA 12, Non-Regen
MNT4N100HP-N1 Mentor II ExpressPak, 100hp, 480Vac Input, 172 Amps output, NEMA 1, Non-Regen
MNT4N100HP-N12 Mentor II ExpressPak, 100hp, 480Vac Input, 172 Amps output, NEMA 12, Non-Regen
MNT4N10HP-N1 Mentor II ExpressPak, 10hp, 480Vac Input, 20 Amps output, NEMA 1, Non-Regen
MNT4N10HP-N12 Mentor II ExpressPak, 10hp, 480Vac Input, 20 Amps output, NEMA 12, Non-Regen
MNT4N1250HP-N12 Mentor II ExpressPak, 250hp, 480Vac Input, 428 Amps output, NEMA 12, Non-Regen
MNT4N125HP-N1 Mentor II ExpressPak, 125hp, 480Vac Input, 205 Amps output, NEMA 1, Non-Regen
MNT4N125HP-N12 Mentor II ExpressPak, 125hp, 480Vac Input, 205 Amps output, NEMA 12, Non-Regen
MNT4N150HP-N1 Mentor II ExpressPak, 150hp, 480Vac Input, 255 Amps output, NEMA 1, Non-Regen
MNT4N150HP-N12 Mentor II ExpressPak, 150hp, 480Vac Input, 255 Amps output, NEMA 12, Non-Regen
MNT4N15HP-N1 Mentor II ExpressPak, 15hp, 480Vac Input, 29 Amps output, NEMA 1, Non-Regen
MNT4N15HP-N12 Mentor II ExpressPak, 15hp, 480Vac Input, 29 Amps output, NEMA 12, Non-Regen
MNT4N200HP-N1 Mentor II ExpressPak, 200hp, 480Vac Input, 338 Amps output, NEMA 1, Non-Regen
MNT4N200HP-N12
Mentor II ExpressPak, 200hp, 480Vac Input, 338 Amps output, NEMA 12, Non-Regen
MNT4N20HP-N1 Mentor II ExpressPak, 20hp, 480Vac Input, 38 Amps output, NEMA 1, Non-Regen
MNT4N20HP-N12 Mentor II ExpressPak, 20hp, 480Vac Input, 38 Amps output, NEMA 12, Non-Regen
MNT4N250HP-N1 Mentor II ExpressPak, 250hp, 480Vac Input, 428 Amps output, NEMA 1, Non-Regen
MNT4N25HP-N1 Mentor II ExpressPak, 25hp, 480Vac Input, 43 Amps output, NEMA 1, Non-Regen
MNT4N25HP-N12 Mentor II ExpressPak, 25hp, 480Vac Input, 43 Amps output, NEMA 12, Non-Regen
MNT4N300HP-N1 Mentor II ExpressPak, 300hp, 480Vac Input, 508 Amps output, NEMA 1, Non-Regen
MNT4N300HP-N12 Mentor II ExpressPak, 300hp, 480Vac Input, 508 Amps output, NEMA 12, Non-Regen
MNT4N30HP-N1 Mentor II ExpressPak, 30hp, 480Vac Input, 55 Amps output, NEMA 1, Non-Regen
MNT4N30HP-N12 Mentor II ExpressPak, 30hp, 480Vac Input, 55 Amps output, NEMA 12, Non-Regen
MNT4N400HP-N1 Mentor II ExpressPak, 400hp, 480Vac Input, 675 Amps output, NEMA 1, Non-Regen
MNT4N400HP-N12 Mentor II ExpressPak, 400hp, 480Vac Input, 675 Amps output, NEMA 12, Non-Regen
MNT4N40HP-N1 Mentor II ExpressPak, 40hp, 480Vac Input, 72 Amps output, NEMA 1, Non-Regen
MNT4N40HP-N12 Mentor II ExpressPak, 40hp, 480Vac Input, 72 Amps output, NEMA 12, Non-Regen
MNT4N500HP-N1 Mentor II ExpressPak, 500hp, 480Vac Input, 840 Amps output, NEMA 1, Non-Regen
MNT4N500HP-N12 Mentor II ExpressPak, 500hp, 480Vac Input, 840 Amps output, NEMA 12, Non-Regen
MNT4N50HP-N1 Mentor II ExpressPak, 50hp, 480Vac Input, 89 Amps output, NEMA 1, Non-Regen
MNT4N50HP-N12 Mentor II ExpressPak, 50hp, 480Vac Input, 89 Amps output, NEMA 12, Non-Regen
MNT4N5HP-N1 Mentor II ExpressPak, 5hp, 480Vac Input, 10 Amps output, NEMA 1, Non-Regen
MNT4N5HP-N12 Mentor II ExpressPak, 5hp, 480Vac Input, 10 Amps output, NEMA 12, Non-Regen
MNT4N600HP-N1 Mentor II ExpressPak, 600hp, 480Vac Input, 1010 Amps output, NEMA 1, Non-Regen
MNT4N600HP-N12 Mentor II ExpressPak, 600hp, 480Vac Input, 1010 Amps output, NEMA 12, Non-Regen
MNT4N60HP-N1 Mentor II ExpressPak, 60hp, 480Vac Input, 106 Amps output, NEMA 1, Non-Regen
MNT4N60HP-N12 Mentor II ExpressPak, 60hp, 480Vac Input, 106 Amps output, NEMA 12, Non-Regen
MNT4N7.5HP-N1 Mentor II ExpressPak, 7.5hp, 480Vac Input, 12 Amps output, NEMA 1, Non-Regen
MNT4N7.5HP-N12 Mentor II ExpressPak, 7.5hp, 480Vac Input, 12 Amps output, NEMA 12, Non-Regen
MNT4N700HP-N1 Mentor II ExpressPak, 700hp, 480Vac Input, 1171 Amps output, NEMA 1, Non-Regen
MNT4N700HP-N12 Mentor II ExpressPak, 700hp, 480Vac Input, 1171 Amps output, NEMA 12, Non-Regen
MNT4N75HP-N1 Mentor II ExpressPak, 75hp, 480Vac Input, 125 Amps output, NEMA 1, Non-Regen
MNT4N75HP-N12 Mentor II ExpressPak, 75hp, 480Vac Input, 125 Amps output, NEMA 12, Non-Regen
MNT4N800HP-N1 Mentor II ExpressPak, 800hp, 480Vac Input, 1335 Amps output, NEMA 1, Non-Regen
MNT4N800HP-N12 Mentor II ExpressPak, 800hp, 480Vac Input, 1335 Amps output, NEMA 12, Non-Regen
MNT4N900HP-N1 Mentor II ExpressPak, 900hp, 480Vac Input, 1496 Amps output, NEMA 1, Non-Regen
MNT4N900HP-N12 Mentor II ExpressPak, 900hp, 480Vac Input, 1496 Amps output, NEMA 12, Non-Regen
MNT4R1000HP-N1 Mentor II ExpressPak, 1000hp, 480Vac Input, 1660 Amps output, NEMA 1, Regen
MNT4R1000HP-N12 Mentor II ExpressPak, 1000hp, 480Vac Input, 1660 Amps output, NEMA 12, Regen
MNT4R100HP-N1 Mentor II ExpressPak, 100hp, 480Vac Input, 172 Amps output, NEMA 1, Regen
MNT4R100HP-N12 Mentor II ExpressPak, 100hp, 480Vac Input, 172 Amps output, NEMA 12, Regen
MNT4R10HP-N1 Mentor II ExpressPak, 10hp, 480Vac Input, 20 Amps output, NEMA 1, Regen
MNT4R10HP-N12 Mentor II ExpressPak, 10hp, 480Vac Input, 20 Amps output, NEMA 12, Regen
MNT4R125HP-N1 Mentor II ExpressPak, 125hp, 480Vac Input, 205 Amps output, NEMA 1, Regen
MNT4R125HP-N12 Mentor II ExpressPak, 125hp, 480Vac Input, 205 Amps output, NEMA 12, Regen
MNT4R150HP-N1 Mentor II ExpressPak, 150hp, 480Vac Input, 255 Amps output, NEMA 1, Regen
MNT4R150HP-N12 Mentor II ExpressPak, 150hp, 480Vac Input, 255 Amps output, NEMA 12, Regen
MNT4R15HP-N1 Mentor II ExpressPak, 15hp, 480Vac Input, 29 Amps output, NEMA 1, Regen
MNT4R15HP-N12  Mentor II ExpressPak, 15hp, 480Vac Input, 29 Amps output, NEMA 12, Regen
MNT4R200HP-N1  Mentor II ExpressPak, 200hp, 480Vac Input, 338 Amps output, NEMA 1, Regen
MNT4R200HP-N12 Mentor II ExpressPak, 200hp, 480Vac Input, 338 Amps output, NEMA 12, Regen
MNT4R20HP-N1  Mentor II ExpressPak, 20hp, 480Vac Input, 38 Amps output, NEMA 1, Regen
MNT4R20HP-N12 Mentor II ExpressPak, 20hp, 480Vac Input, 38 Amps output, NEMA 12, Regen
MNT4R250HP-N1  Mentor II ExpressPak, 250hp, 480Vac Input, 428 Amps output, NEMA 1, Regen
MNT4R250HP-N12  Mentor II ExpressPak, 250hp, 480Vac Input, 428 Amps output, NEMA 12, Regen
MNT4R25HP-N1  Mentor II ExpressPak, 25hp, 480Vac Input, 43 Amps output, NEMA 1, Regen
MNT4R25HP-N12  Mentor II ExpressPak, 25hp, 480Vac Input, 43 Amps output, NEMA 12, Regen
MNT4R300HP-N1  Mentor II ExpressPak, 300hp, 480Vac Input, 508 Amps output, NEMA 1, Regen
MNT4R300HP-N12  Mentor II ExpressPak, 300hp, 480Vac Input, 508 Amps output, NEMA 12, Regen
MNT4R30HP-N1  Mentor II ExpressPak, 30hp, 480Vac Input, 55 Amps output, NEMA 1, Regen
MNT4R30HP-N12  Mentor II ExpressPak, 30hp, 480Vac Input, 55 Amps output, NEMA 12, Regen
MNT4R400HP-N1  Mentor II ExpressPak, 400hp, 480Vac Input, 675 Amps output, NEMA 1, Regen
MNT4R400HP-N12  Mentor II ExpressPak, 400hp, 480Vac Input, 675 Amps output, NEMA 12, Regen
MNT4R40HP-N1  Mentor II ExpressPak, 40hp, 480Vac Input, 72 Amps output, NEMA 1, Regen
MNT4R40HP-N12  Mentor II ExpressPak, 40hp, 480Vac Input, 72 Amps output, NEMA 12, Regen
MNT4R500HP-N1  Mentor II ExpressPak, 500hp, 480Vac Input, 840 Amps output, NEMA 1, Regen
MNT4R500HP-N12  Mentor II ExpressPak, 500hp, 480Vac Input, 840 Amps output, NEMA 12, Regen
MNT4R50HP-N1  Mentor II ExpressPak, 50hp, 480Vac Input, 89 Amps output, NEMA 1, Regen
MNT4R50HP-N12  Mentor II ExpressPak, 50hp, 480Vac Input, 89 Amps output, NEMA 12, Regen
MNT4R5HP-N1  Mentor II ExpressPak, 5hp, 480Vac Input, 10 Amps output, NEMA 1, Regen
MNT4R5HP-N12  Mentor II ExpressPak, 5hp, 480Vac Input, 10 Amps output, NEMA 12, Regen
MNT4R600HP-N1  Mentor II ExpressPak, 600hp, 480Vac Input, 1010 Amps output, NEMA 1, Regen
MNT4R600HP-N12  Mentor II ExpressPak, 600hp, 480Vac Input, 1010 Amps output, NEMA 12, Regen
MNT4R60HP-N1  Mentor II ExpressPak, 60hp, 480Vac Input, 106 Amps output, NEMA 1, Regen
MNT4R60HP-N12  Mentor II ExpressPak, 60hp, 480Vac Input, 106 Amps output, NEMA 12, Regen
MNT4R7.5HP-N1  Mentor II ExpressPak, 7.5hp, 480Vac Input, 12 Amps output, NEMA 1, Regen
MNT4R7.5HP-N12  Mentor II ExpressPak, 7.5hp, 480Vac Input, 12 Amps output, NEMA 12, Regen
MNT4R700HP-N1  Mentor II ExpressPak, 700hp, 480Vac Input, 1171 Amps output, NEMA 1, Regen
MNT4R700HP-N12  Mentor II ExpressPak, 700hp, 480Vac Input, 1171 Amps output, NEMA 12, Regen
MNT4R75HP-N1  Mentor II ExpressPak, 75hp, 480Vac Input, 125 Amps output, NEMA 1, Regen
MNT4R75HP-N12  Mentor II ExpressPak, 75hp, 480Vac Input, 125 Amps output, NEMA 12, Regen
MNT4R800HP-N1  Mentor II ExpressPak, 800hp, 480Vac Input, 1335 Amps output, NEMA 1, Regen
MNT4R800HP-N12  Mentor II ExpressPak, 800hp, 480Vac Input, 1335 Amps output, NEMA 12, Regen
MNT4R900HP-N1  Mentor II ExpressPak, 900hp, 480Vac Input, 1496 Amps output, NEMA 1, Regen
MNT4R900HP-N12  Mentor II ExpressPak, 900hp, 480Vac Input, 1496 Amps output, NEMA 12, Regen
MP-1250-00-000  MDS Power Module, 12.5 kW @ 480Vac, 6.25 kW @ 240Vac, with Backplane
MP-2500-00-000  MDS Power Module, 25 kW @ 480Vac, 12.5 kW @ 240Vac, with Backplane
MP-5000-00-000  MDS Power Module, 50 kW @ 480Vac, 25 kW @ 240Vac, with Backplane
MPF  Motor Power Filter
MPF-002-00  Motor power filter for long lead lengths, Size 2 （CMDS, CMDF, CMMS, CMMF）
MPF-003-00  Motor power filter for long lead lengths, Size 3 （CMLS）
MVI46-MNET  Modbus TCP/IP Communications Card for SLC500
MVI56-MCM  Modbus Communication Module for ControLogix
MX-1300-CE  MX Series Servo Amplifier
MX-1600-CE  MX Series Servo Amplifier
MX-2600-CE  MX Series Servo Amplifier
MX-280-CE  MX Series Servo Amplifier
MX-3200-CE  No Longer Available - MX Series Servo Amplifier
MX-440-CE  MX Series Servo Amplifier
MX-4800-CE  No Longer Available - MX Series Servo Amplifier
MX-850-CE  MX Series Servo Amplifier
NMA-010  9 pin connector at PC, RS-232, PB-9F to DB-9F, 10 ft
NMA-xxx  9 pin connector at PC, RS-232, PB-9F to DB-9F, Custom Length - 1 ft increments
NMB-010  25 pin connector at PC, RS-232, PB-25F to DB-9F, 10 ft
NMB-xxx  25 pin connector at PC, RS-232, PB-25F to DB-9F, Custom Length - 1 ft increments
NTE-207-CBNS-0000  NT 2" Servo Motor, English Mounting Flange, 7.5 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed, 24VDC Brake
NTE-207-CONS-0000  NT 2" Servo Motor, English Mounting Flange, 7.5 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed
NTE-207-LBNS-0000  NT 2" Servo Motor, English Mounting Flange, 7.5 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 24VDC Brake
NTE-207-LONS-0000  NT 2" Servo Motor, English Mounting Flange, 7.5 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors
NTE-207-TBNS-0000  NT 2" Servo Motor, English Mounting Flange, 7.5 lb-in Cont. Torque, 240Vac, MS Connectors on 1 meter leads, 5000 RPM Max Speed, 24VDC Brake
NTE-207-TONS-0000  NT 2" Servo Motor, English Mounting Flange, 7.5 lb-in Cont. Torque, 240Vac, MS Connectors on 1 meter leads, 5000 RPM Max Speed
NTE-212-CBNS-0000  NT 2" Servo Motor, English Mounting Flange, 12.5 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed, 24VDC Brake
NTE-212-CONS-0000  NT 2" Servo Motor, English Mounting Flange, 12.5 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed
NTE-212-LBNS-0000  NT 2" Servo Motor, English Mounting Flange, 12.5 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 24VDC Brake, 5000 RPM Max Speed
NTE-212-LONS-0000  NT 2" Servo Motor, English Mounting Flange, 12.5 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 5000 RPM Max Speed
NTE-212-TBNS-0000  NT 2" Servo Motor, English Mounting Flange, 12.5 lb-in Cont. Torque, 240Vac, MS Connectors on 1 meter leads, 5000 RPM Max Speed, 24VDC Brake
NTE-212-TONS-0000  NT 2" Servo Motor, English Mounting Flange, 12.5 lb-in Cont. Torque, 240Vac, MS Connectors on 1 meter leads, 5000 RPM Max Speed
NTE-320-CBNS-0000  NT 3" Servo Motor, English Mounting Flange, 20 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed, 24DC Brake
NTE-320-CONS-0000  NT 3" Servo Motor, English Mounting Flange, 20 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed
NTE-320-LBNS-0000 NT 3" Servo Motor, English Mounting Flange, 20 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 4000 RPM Max Speed, 24VDC Brake
NTE-320-LONS-0000  NT 3" Servo Motor, English Mounting Flange, 20 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 4000 RPM Max Speed
NTE-320-TBNS-0000  NT 3" Servo Motor, English Mounting Flange, 20 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 4000 RPM Max Speed, 24VDC Brake
NTE-320-TONS-0000  NT 3" Servo Motor, English Mounting Flange, 20 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 4000 RPM Max Speed
NTE-330-CBNS-0000  NT 3" Servo Motor, English Mounting Flange, 32 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed, 24VDC Brake
NTE-330-CONS-0000  NT 3" Servo Motor, English Mounting Flange, 32 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed
NTE-330-LBNS-0000  NT 3" Servo Motor, English Mounting Flange, 32 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 4000 RPM Max Speed, 24VDC Brake
NTE-330-LONS-0000  NT 3" Servo Motor, English Mounting Flange, 32 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 4000 RPM Max Speed
NTE-330-TBNS-0000  NT 3" Servo Motor, English Mounting Flange, 32 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 4000 RPM Max Speed, 24VDC Brake
NTE-330-TONS-0000  NT 3" Servo Motor, English Mounting Flange, 32 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 4000 RPM Max Speed
NTE-345-CBNS-0000  NT 3" Servo Motor, English Mounting Flange, 47 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 24VDC Brake
NTE-345-CONS-0000  NT 3" Servo Motor, English Mounting Flange, 47 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
NTE-345-LBNS-0000  NT 3" Servo Motor, English Mounting Flange, 47 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 3000 RPM Max Speed, 24VDC Brake
NTE-345-LONS-0000  NT 3" Servo Motor, English Mounting Flange, 47 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 3000 RPM Max Speed
NTE-345-TBNS-0000  NT 3" Servo Motor, English Mounting Flange, 47 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 3000 RPM Max Speed, 24VDC Brake
NTE-345-TONS-0000  NT 3" Servo Motor, English Mounting Flange, 47 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 3000 RPM Max Speed
NTE-355-CBNS-0000 NT 3" Servo Motor, English Mounting Flange, 56 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 4000 RPM Max Speed, 24VDC Brake
NTE-355-CONS-0000  NT 3" Servo Motor, English Mounting Flange, 56 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
NTE-355-LBNS-0000  NT 3" Servo Motor, English Mounting Flange, 56 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 3000 RPM Max Speed, 24VDC Brake
NTE-355-LONS-0000  NT 3" Servo Motor, English Mounting Flange, 56 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 3000 RPM Max Speed
NTE-355-TBNS-0000  NT 3" Servo Motor, English Mounting Flange, 56 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 3000 RPM Max Speed, 24VDC Brake
NTE-355-TONS-0000  NT 3" Servo Motor, English Mounting Flange, 56 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 3000 RPM Max Speed
NTM-207-CBNS-0000  NT 2" Servo Motor, Metric Mounting Flange, 7.3 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed, 24VDC Brake
NTM-207-CONS-0000  NT 2" Servo Motor, Metric Mounting Flange, 7.5 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed
NTM-207-LBNS-0000  NT 2" Servo Motor, Metric Mounting Flange, 7.3 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 5000 RPM Max Speed, 24VDC Brake
NTM-207-LONS-0000  NT 2" Servo Motor, Metric Mounting Flange, 7.5 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 5000 RPM Max Speed
NTM-207-TBNS-0000  NT 2" Servo Motor, Metric Mounting Flange, 7.3 lb-in Cont. Torque, 240Vac, MS Connectors on 1 meter leads, 5000 RPM Max Speed, 24VDC Brake
NTM-207-TONS-0000  NT 2" Servo Motor, Metric Mounting Flange, 7.5 lb-in Cont. Torque, 240Vac, MS Connectors on 1 meter leads, 5000 RPM Max Speed
NTM-212-CBNS-0000  NT 2" Servo Motor, Metric Mounting Flange, 12 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed, 24VDC Brake
NTM-212-CONS-0000  NT 2" Servo Motor, Metric Mounting Flange, 12.5 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed
NTM-212-LBNS-0000  NT 2" Servo Motor, Metric Mounting Flange, 12 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 5000 RPM Max Speed, 24VDC Brake
NTM-212-LONS-0000  NT 2" Servo Motor, Metric Mounting Flange, 12.5 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 5000 RPM Max Speed
NTM-212-TBNS-0000  NT 2" Servo Motor, Metric Mounting Flange, 12 lb-in Cont. Torque, 240Vac, MS Connectors on 1 meter leads, 5000 RPM Max Speed, 24VDC Brake
NTM-212-TONS-0000  NT 2" Servo Motor, Metric Mounting Flange, 12.5 lb-in Cont. Torque, 240Vac, MS Connectors on 1 meter leads, 5000 RPM Max Speed
NTM-320-CBNS-0000  NT 3" Servo Motor, Metric Mounting Flange, 20 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed, 24VDC Brake
NTM-320-CONS-0000  NT 3" Servo Motor, Metric Mounting Flange, 20 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed
NTM-320-LBNS-0000  NT 3" Servo Motor, Metric Mounting Flange, 20 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 4000 RPM Max Speed, 24VDC Brake
NTM-320-LONS-0000 NT 3" Servo Motor, Metric Mounting Flange, 20 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 4000 RPM Max Speed
NTM-320-TBNS-0000  NT 3" Servo Motor, Metric Mounting Flange, 20 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 4000 RPM Max Speed, 24VDC Brake
NTM-320-TONS-0000  NT 3" Servo Motor, Metric Mounting Flange, 20 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 4000 RPM Max Speed
NTM-330-CBNS-0000  NT 3" Servo Motor, Metric Mounting Flange, 32 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed, 24VDC Brake
NTM-330-CONS-0000  NT 3" Servo Motor, Metric Mounting Flange, 32 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed
NTM-330-LBNS-0000  NT 3" Servo Motor, Metric Mounting Flange, 32 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 4000 RPM Max Speed, 24VDC Brake
NTM-330-LONS-0000  NT 3" Servo Motor, Metric Mounting Flange, 32 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 4000 RPM Max Speed
NTM-330-TBNS-0000  NT 3" Servo Motor, Metric Mounting Flange, 32 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 4000 RPM Max Speed, 24VDC Brake
NTM-330-TONS-0000  NT 3" Servo Motor, Metric Mounting Flange, 32 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 4000 RPM Max Speed
NTM-345-CBNS-0000  NT 3" Servo Motor, Metric Mounting Flange, 47 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 24VDC Brake
NTM-345-CONS-0000  NT 3" Servo Motor, Metric Mounting Flange, 47 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
NTM-345-LBNS-0000 NT 3" Servo Motor, Metric Mounting Flange, 47 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 3000 RPM Max Speed, 24VDC Brake
NTM-345-LONS-0000  NT 3" Servo Motor, Metric Mounting Flange, 47 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 3000 RPM Max Speed
NTM-345-TBNS-0000  NT 3" Servo Motor, Metric Mounting Flange, 47 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 3000 RPM Max Speed, 24VDC Brake
NTM-345-TONS-0000  NT 3" Servo Motor, Metric Mounting Flange, 47 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 3000 RPM Max Speed
NTM-355-CBNS-0000  NT 3" Servo Motor, Metric Mounting Flange, 56 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 24VDC Brake
NTM-355-CONS-0000  NT 3" Servo Motor, Metric Mounting Flange, 56 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
NTM-355-LBNS-0000  NT 3" Servo Motor, Metric Mounting Flange, 56 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 3000 RPM Max Speed, 24VDC Brake
NTM-355-LONS-0000  NT 3" Servo Motor, Metric Mounting Flange, 56 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 3000 RPM Max Speed
NTM-355-TBNS-0000  NT 3" Servo Motor, Metric Mounting Flange, 56 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 3000 RPM Max Speed, 24VDC Brake
NTM-355-TONS-0000 NT 3" Servo Motor, Metric Mounting Flange, 56 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 3000 RPM Max Speed
OAC-24-G4  AC input module for use w/ XIOR-32 （12-140 Vac, 3 amps）
ODC-24-G4  DC output module for use w/ XIOR-32 （5-60 VDC 3 amps）
OIT-3165-A00  Operator Interface Panel, 2 Line by 20 Character LCD Display, 24 key keypad
P200-00-000  Servo Encoder Daughter Board （with Registration input） for MC Controller
P210-00-000  Servo Resolver Daughter Board （with Registration input） for MC Controller
P220-00-000  Reference Encoder Daughter Board （2Meg max rate） for MC Controller
P230-00-000  Stepper Daughter Board （step/direction, boost, enable output） for MC Controller
P240-00-000 Stepper Encoder Daughter Board for MC Controller
P242-00-000  Hardware PSWITCH Daughter Board （4 x 1us output） for MC Controller
P260-00-000  Analog Output Daughter Board（12bit +/-10Vdc） for MC Controller
P270-00-000  SSI Servo Encoder Daughter Board for MC Controller
P280-00-000  Differential Stepper Daughter Board for MC Controller
P290-00-000  CAN Daughter Board for MC Controller
P291-00-000  SERCOS Daughter Board for MC Controller, 2 Axis Enabled
P292-00-000  3 Axes SLM Interface Daughter Board for MC Controller
P295-00-000  USB Daughter Board, for use between MC Controller ａnd PC fitted with USB port
P296-00-000  Ethernet Daughter Board for MC Controller
P297-00-000  Profibus Daughter Board for MC Controller
P300-00-000  MC224 Axis Expander
P315-00-000  16 channel, 24v digital I/O in a single DIN-rail unit. CANBus connection. CAN 16-I/O （bi-directional）
P325-00-000  8 channel, ±10v Analogue Input Channels in a single DIN-rail unit. CANBus Connection. CAN 8 Analogue Inputs （12bit single-ended）
P349-00-000  Serial to RS485 Adapter （MC202 port 1 only）
P350-00-000  RS232 Serial Cable from PC to MC Controller, 2 meter Length, 9 pin to mini-DIN
P351-00-000  USB 5m Serial Cable from PC to MC Controller
P354-00-000  Mini-Din to Flying Lead Serial Cable 10 ft
P355-00-000  2 Way System Ribbon, Required if one MC224 axis expansion are used （2 bays total）
P360-00-000  3 Way System Ribbon, Required if two MC224 axis expansion are used （3 bays total）
P365-00-000  4 Way System Ribbon, Required if three MC224 axis expansion are used （4 bays total）
P390-00-000  Enable Code for 1 additional MC206 Servo Axis. Serial number is required if this option is not purchased before shipment.
P393-00-000  Enable Code for 1 additional MC-206 Reference Encoder Axis. Serial number is required if this option is not purchased before shipment.
P395-00-000  Enable Code for 1 additional MC-206 Differential Stepper Axis. Serial number is required if this option is not purchased before shipment.
P398-00-000  Memory Stick （MC206 & MC224）
P399-00-000  MC206 Daughter Adapter Board, required when installing a daughter board in a MC206
PBCONN  Industry standard Profibus connector
PBC-xxx  Bulk Profibus 2 Wire - RS485 Cable, Cut flat on both ends, Custom Length - 1 ft increments
PCM-11 Programmable Motion Controller
PCM-14  Slip Compensation Controller
PCM-15  Ratio Controller
PCM-16  Phase Synchronization Controller
PCM-17  Random Infeed Controller
PCM-18  Web Speed Controller
PCM-19  Conveyor Controller
PCM-22  Rotary Knife Synchronization Controller
PCM-22Q  Phase Synchronization w/ Queuing Controller
PCM-23  Electronic Camming Controller
PCM-24  Press Feed Controller
PS5R-B24  24VDC Power Supply, 600 mA max output current, 100 to 240Vac input power
PX ENCODER  Encoder feedback module, Commander SX Series
PX I/O  I/O extension module, Commander SX Series
PX LCD  LCD hand-held key-pad, Commander SX Series
PX SECURE  Relay category 2-3, Commander SX Series
QUANTUM-UG Quantum III User Guide
RB-CTD-485-xxx  RS485 Cable, Connector on drive end, Dressed leads on I/O Box end, Custom Length - 1 ft increments （max 250 ft）
RB-MDP-485-xxx  RS485 Cable, Dressed leads on MD29 TB1 / SM-Applications, Dressed leads on I/O Box end, Custom Length - 1 ft increments （max 250 ft）
RC-015  Resolver Feedback Cable with cut ends, 15 ft Length （Can be used in both CE ａnd Non-CE applications）
RC-025  Resolver Feedback Cable with cut ends, 25 ft Length （Can be used in both CE ａnd Non-CE applications）
RC-050  Resolver Feedback Cable with cut ends, 50 ft Length （Can be used in both CE ａnd Non-CE applications）
RC-xxx  Resolver Feedback Cable with cut ends, Custom Length - 1 ft increments （Can be used in both CE ａnd Non-CE applications）
RJ45-5  RJ45 5 way splitter for use with RS485 multi-ｄrop networks （Commander SE ａnd Unidrive SP）
RJ45-5  RJ45 5 way splitter for use with RS485 multi-ｄrop networks （Commander SE ａnd Unidrive SP）
RJ45-5  RJ45 5 way splitter for use with RS485 multi-ｄrop networks （Commander SE ａnd Unidrive SP）
RJ45-5  RJ45 5 way splitter for use with RS485 multi-ｄrop networks （Commander SE ａnd Unidrive SP）
RMECFB-xxx  From Bulkhead to Motor, right angle @ motor
RMECF-xxx  From Drive to Motor, right angle @ motor
RMECLA-xxx  From Bulkhead to Bulkhead / Motor, right angle @ motor
RMECLB-xxx  From Bulkhead to Motor, right angle @ motor
RMECL-xxx From Drive to Motor, right angle @ motor
RMECMB-xxx  From Bulkhead to Motor, right angle @ motor
RMECM-xxx From Drive to Motor, right angle @ motor
RMECSB-xxx  From Bulkhead to Motor, right angle at motor
RMECS-xxx  From Drive to Motor , right angle at motor
RSR-2  2kW regeneration shunt regulator, 120-230 Vac, stackable, external shunt resistors sold separately （EN, Epsilon）
SCS-2  Synchronization Encoder, 1000 Line （4000 counts / rev）, Straight Connector （FX Drive Only）
SCS-2R  Synchronization Encoder, 1000 Line, （4000 counts / rev）, Right Angle Connector （FX Drive Only）
SCS-3  Synchronization Encoder, 2500 Line （10000 counts / rev）, Straight Connector （FX Drive Only）
SCS-4  Synchronization Encoder, 3000 Line （12000 counts / rev）, Straight Connector （FX Drive Only）
SCS-4R  Synchronization Encoder, 3000 Line （12000 counts / rev）, Right Angle Connector （FX Drive Only）
SCSLD-2  Synchronization Encoder, 1000 Line （4000 counts / rev）, Straight Connector （FX Drive Only）
SCSLD-2R Synchronization Encoder, 1000 Line （4000 counts / rev）, Right Angle Connector （FX Drive Only）
SCSLD-3  Synchronization Encoder, 2500 Line （10000 counts / rev）, Straight Connector （FX Drive Only）
SCSLD-3R  Synchronization Encoder, 2500 Line （10000 counts / rev）, Right Angle Connector （FX Drive Only）
SCSLD-4  Synchronization Encoder, 3000 Line （12000 counts / rev）, Straight Connector （SNCE）
SCSLD-4R Synchronization Encoder, 3000 Line （12000 counts / rev）, Right Angle Connector （SNCE）
SDC-15-1 1024 line sine wave, 4 channel complimentary quadrature with marker pulse. Standard housing with flying leads
SDC-25-1 1025 line sine wave, 4 channel complimentary quadrature with marker pulse. External housing with connector
SE11  Cable shield clamps for Commander SE - Size 1
SE11200025  Commander SE （Size 1）, 0.33hp, 230Vac, 1? Input - 3? Output, 1.5A Cont. Output Current, Nema 1
SE11200037 Commander SE （Size 1）, 0.50hp, 230Vac, 1? Input - 3? Output, 2.3A Cont. Output Current, Nema 1
SE11200055  Commander SE （Size 1）, 0.75hp, 230Vac, 1? Input - 3? Output, 3.1A Cont. Output Current, Nema 1
SE11200075 Commander SE （Size 1）, 1hp, 230Vac, 1? Input - 3? Output, 4.3A Cont. Output Current, Nema 1
SE232001-N1  Commander SE ExpressPak, 1hp, 230V - 3?, 3.8 Amps, Nema 1
SE232001-N12  Commander SE ExpressPak, 1hp, 230V - 3?, 3.8 Amps, Nema 12
SE232002-N1  Commander SE ExpressPak, 2hp, 230V - 3?, 5.6 Amps, Nema 1
SE232002-N12 Commander SE ExpressPak, 2hp, 230V - 3?, 5.6 Amps, Nema 12
SE232003-N1 Commander SE ExpressPak, 3hp, 230V - 3?, 9.5 Amps, Nema 1
SE232003-N12  Commander SE ExpressPak, 3hp, 230V - 3?, 9.5 Amps, Nema 12
SE23200400  Commander SE （Size 2）, 5hp, 230V - 3?, 17A Cont. Output Current, Nema 1
SE232005-N1  Commander SE ExpressPak, 5hp, 230V - 3?, 12.0 Amps, Nema 1
SE232005-N12 Commander SE ExpressPak, 5hp, 230V - 3?, 12.0 Amps, Nema 12
SE23400075  Commander SE （Size 2）, 1hp, 460V - 3?, 2.1A Cont. Output Current, Nema 1
SE23400150 Commander SE （Size 2）, 2hp, 460V - 3?, 4.2A Cont. Output Current, Nema 1
SE234001-N1 Commander SE ExpressPak, 1hp, 480V - 3?, 2.1 Amps, Nema 1
SE234001-N12 Commander SE ExpressPak, 1hp, 480V - 3?, 2.1 Amps, Nema 12
SE23400220  Commander SE （Size 2）, 3hp, 460V - 3?, 5.8A Cont. Output Current, Nema 1
SE234002-N1 Commander SE ExpressPak, 2hp, 480V - 3?, 2.8 Amps, Nema 1
SE234002-N12  Commander SE ExpressPak, 2hp, 480V - 3?, 2.8 Amps, Nema 12
SE234003-N1 Commander SE ExpressPak, 3hp, 480V - 3?, 3.8 Amps, Nema 1
SE234003-N12 Commander SE ExpressPak, 3hp, 480V - 3?, 3.8 Amps, Nema 12
SE23400400  Commander SE （Size 2）, 5hp, 460V - 3?, 9.5A Cont. Output Current, Nema 1
SE234005-N1  Commander SE ExpressPak, 5hp, 480V - 3?, 5.6 Amps, Nema 1
SE234005-N12  Commander SE ExpressPak, 5hp, 480V - 3?, 5.6 Amps, Nema 12
SE2D200075 Commander SE （Size 2）, 1hp, 230Vac, 1? or 3? Input - 3? Output, 4.3A Cont. Output Current, Nema 1
SE2D200150 Commander SE （Size 2）, 2hp, 230Vac, 1? or 3? Input - 3? Output, 7.5A Cont. Output Current, Nema 1
SE2D200220 Commander SE （Size 2）, 3hp, 230Vac, 1? or 3? Input - 3? Output, 10.6A Cont. Output Current, Nema 1
SE2WE Extends standard warranty to 5 Years on Commander SE - Size 2
SE33200550 Commander SE （Size 3）, 7.5hp, 230V - 3?, 25A Cont. Output Current, Nema 1
SE33200750  Commander SE （Size 3）, 10hp, 230V - 3?, 28.5A Cont. Output Current, Nema 1
SE332007-N1 Commander SE ExpressPak, 7.5hp, 230V - 3?, 16.0 Amps, Nema 1
SE332007-N12 Commander SE ExpressPak, 7.5hp, 230V - 3?, 16.0 Amps, Nema 12
SE332010-N1  Commander SE ExpressPak, 10hp, 230V - 3?, 25 Amps, Nema 1
SE332010-N12 Commander SE ExpressPak, 10hp, 230V - 3?, 25 Amps, Nema 12
SE33400550 Commander SE （Size 3）, 7.5hp, 460V - 3?, 13A Cont. Output Current, Nema 1
SE33400750  Commander SE （Size 3）, 10hp, 460V - 3?, 16.5A Cont. Output Current, Nema 1
SE334007-N1 Commander SE ExpressPak, 7.5hp, 480V - 3?, 9.5 Amps, Nema 1
SE334007-N12  Commander SE ExpressPak, 7.5hp, 480V - 3?, 9.5 Amps, Nema 12
SE334010-N1  Commander SE ExpressPak, 10hp, 480V - 3?, 12 Amps, Nema 1
SE334010-N12  Commander SE ExpressPak, 10hp, 480V - 3?, 12 Amps, Nema 12
SE3WE Extends standard warranty to 5 Years on Commander SE - Size 3
SE43401100 Commander SE （Size 4）, 15hp, 460V - 3?, 24.5A Cont. Output Current, Nema 1
SE43401500 Commander SE （Size 4）, 20hp, 460V - 3?, 30.5A Cont. Output Current, Nema 1
SE434015-N1  Commander SE ExpressPak, 15hp, 480V - 3?, 16 Amps, Nema 1
SE434015-N12 Commander SE ExpressPak, 15hp, 480V - 3?, 16 Amps, Nema 12
SE43401850 Commander SE （Size 4）, 25hp, 460V - 3?, 37A Cont. Output Current, Nema 1
SE434020-N1 Commander SE ExpressPak, 20hp, 480V - 3?, 25 Amps, Nema 1
SE434020-N12 Commander SE ExpressPak, 20hp, 480V - 3?, 25 Amps, Nema 12
SE4WE  Extends standard warranty to 5 Years on Commander SE - Size 4
SE51 Bi-polar speed reference input card （Commander SE）
SE51-UG  SE51 Card User Guide
SE53402200  Commander SE （Size 5）, 30hp, 460V - 3?, 46A Cont. Output Current, Nema 1
SE534025-N1 Commander SE ExpressPak, 25hp, 480V - 3?, 37 Amps, Nema 1
SE534025-N12 Commander SE ExpressPak, 25hp, 480V - 3?, 37 Amps, Nema 12
SE53403000  Commander SE （Size 5）, 40hp, 460V - 3?, 60A Cont. Output Current, Nema 1
SE534030-N1 Commander SE ExpressPak, 30hp, 480V - 3?, 46 Amps, Nema 1
SE534030-N12  Commander SE ExpressPak, 30hp, 480V - 3?, 46 Amps, Nema 12
SE53403700 Commander SE （Size 5）, 50hp, 460V - 3?, 70A Cont. Output Current, Nema 1
SE534040-N1 Commander SE ExpressPak, 40hp, 480V - 3?, 60 Amps, Nema 1
SE534040-N12 Commander SE ExpressPak, 40hp, 480V - 3?, 60 Amps, Nema 12
SE534050-N1  Commander SE ExpressPak, 50hp, 480V - 3?, 70 Amps, Nema 1
SE534050-N12  Commander SE ExpressPak, 50hp, 480V - 3?, 70 Amps, Nema 12
SE55 Quickey / Cloning Module （Commander SE）
SE73 Profibus-DP interface card （Commander SE）
SE73-UG SE73 （Profibus-DP） User Guide
SE74 Interbus-S interface card （Commander SE）
SE77CO  CANOpen interface card （Commander SE）
SE77CO-UG SE77CO （CANOpen） User Guide
SE77DN DeviceNet interface card （Commander SE）
SE77DN-UG SE77DN （DeviceNet） User Guide
SE-UG  Commander SE Users Guide
SM-CANOPEN  CANOpen Solutions Module
SM-CANOPEN  CANOpen Solutions Module
SM-CANOPEN CANOpen Solutions Module
SMCO-UG SM-CANOpen User Guide
SM-DAC SM Fan ａnd Pump Duty-Assist Preprogrammed Option Module
SM-DEVICENET  DeviceNet Solutions Module
SM-DEVICENET DeviceNet Solutions Module
SM-DEVICENET DeviceNet Solutions Module
SMDN-UG SM-DeviceNet User Guide
SM-ENCODER PLUS Encoder Plus Solutions Module, provides an additional incremental encoder feedback port.
SMEP-UG SM-Encoder Plus User Guide
SM-ETC 15 Pin D Shell to 15 pin screw terminal break out board for servo ａnd vector motor encoder feedback cable
SM-ETHERNET Ethernet TCP/IP Solutions Module
SM-ETHERNET Ethernet TCP/IP Solutions Module
SM-ETHERNET Ethernet TCP/IP Solutions Module
SM-EZMOTION  Motion Made Easy Solutions Module, Utilizing PowerTools programming software
SMEZ-UG  SM-EZMotion User Guide
SM-FSC SM Flying Shear Control Preprogrammed Option Module
SM-HEATSINK DBR1 Braking Resistor, 75 Ohm, 50 Watt, Heatsink mount for Unidrive SP size 1
SM-HEATSINK DBR2  Braking Resistor, 37.5 Ohm, 100 Watt, Heatsink mount for Unidrive SP size 2
SM-I/O LITE I/O Lite Solutions Module - （1） +/- 10V Bi-polar or 4-20mA input, （3） digital inputs, （1） 0-10V or 4-20mA output, （1） relay output, （1） Incremental Encoder Speed Reference input
SM-I/O LITE  I/O Lite Solutions Module - （1） +/- 10V Bi-polar or 4-20mA input, （3） digital inputs, （1） 0-10V or 4-20mA output, （1） relay output, （1） Incremental Encoder Speed Reference input
SM-I/O LITE I/O Lite Solutions Module - （1） +/- 10V Bi-polar or 4-20mA input, （3） digital inputs, （1） 0-10V or 4-20mA output, （1） relay output, （1） Incremental Encoder Speed Reference input
SM-I/O PLUS I/O Solutions Module, High Performance, （2） +/- 10V analog input, （1） +/- 10V output, （3） digital inputs, （3） programmable digital I/O, （2） relay output,
SM-I/O TIMER I/O Lite Solutions Module w/real time clock for scheduling events, （1） +/- 10V Bi-polar or 4-20mA input, （3） digital inputs, （1） 0-10V or 4-20mA output, （1） relay output, （1） Incl Enc Spd Ref input
SM-I/O TIMER I/O Lite Solutions Module w/real time clock for scheduling events, （1） +/- 10V Bi-polar or 4-20mA input, （3） digital inputs, （1） 0-10V or 4-20mA output, （1） relay output, （1） Incl Enc Spd Ref input
SM-I/O TIMER  I/O Lite Solutions Module w/real time clock for scheduling events, （1） +/- 10V Bi-polar or 4-20mA input, （3） digital inputs, （1） 0-10V or 4-20mA output, （1） relay output, （1） Incl Enc Spd Ref input
SMIB-UG SM-Interbus-S User Guide
SM-INTERBUS Interbus-S Solutions Module
SM-INTERBUS Interbus-S Solutions Module
SM-INTERBUS Interbus-S Solutions Module
SM-KEYPAD LED Keypad, 7 digit LED data display, Configured for Unidrive SP
SM-KEYPAD PLUS  LCD Keypad, back-lit, dual language, on-screen help, remote mountable
SMPB-UG  SM-Profibus User Guide
SM-PELV PELV Solutions Module - Isolated I/O to NAMUR NE37 specification for chemical industry applications
SM-PELV  PELV Solutions Module - Isolated I/O to NAMUR NE37 specification for chemical industry applications
SM-PELV  PELV Solutions Module - Isolated I/O to NAMUR NE37 specification for chemical industry applications
SM-PROFIBUS  Profibus-DP Solutions Module - Fieldbus Option Only
SM-PROFIBUS Profibus-DP Solutions Module - Fieldbus Option Only
SM-PROFIBUS Profibus-DP Solutions Module - Fieldbus Option Only
SM-RESOLVER Resolver Solutions Module, providing a resolver feedback port, w/simulated encoder output
SM-SERCOS SERCOS Solutions Module
SM-SLM SLM Solutions Module
SMUE-UG SM-Uni Encoder User Guide
SM-UNI ENCODER Universal Encoder Plus Solutions Module, provides an additional increamental or Absolute encoder feedback port ａnd simulated encoder output.
SM-Winder SM Speed ａnd Torque Based Centerwind Preprogrammed Option Module
SNCDD-001.5 Sync in/out cable, 7 Pin Mini-DIN connector on one end ａnd an 8 Pin Mini -DIN connector on the other, 1.5 ft Length （FM3/4 to FM3/4）
SP1201-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 5.2A （1.5hp）, Heavy Duty - 4.3A （1hp）
SP1201-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 5.2A （1.5hp）, Heavy Duty - 4.3A （1hp）
SP1201-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 5.2A （1.5hp）, Heavy Duty - 4.3A （1hp）
SP1202-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 6.8A （2hp）, Heavy Duty - 5.8A （1.5hp）
SP1202-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 6.8A （2hp）, Heavy Duty - 5.8A （1.5hp）
SP1202-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 6.8A （2hp）, Heavy Duty - 5.8A （1.5hp）
SP1203-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 9.6A （3hp）, Heavy Duty - 7.5A （2hp）
SP1203-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 9.6A （3hp）, Heavy Duty - 7.5A （2hp）
SP1203-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 9.6A （3hp）, Heavy Duty - 7.5A （2hp）
SP1204-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 11A （3hp）, Heavy Duty - 10.6A （3hp）
SP1204-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 11A （3hp）, Heavy Duty - 10.6A （3hp）
SP1204-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 11A （3hp）, Heavy Duty - 10.6A （3hp）
SP1401-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 2.8A （1.5hp）, Heavy Duty - 2.1A （1hp）
SP1401-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 2.8A （1.5hp）, Heavy Duty - 2.1A （1hp）
SP1401-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 2.8A （1.5hp）, Heavy Duty - 2.1A （1hp）
SP1402-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 3.8A （2hp）, Heavy Duty - 3.0A （2hp）
SP1402-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 3.8A （2hp）, Heavy Duty - 3.0A （2hp）
SP1402-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 3.8A （2hp）, Heavy Duty - 3.0A （2hp）
SP1403-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 5.0A （3hp）, Heavy Duty - 4.2A （3hp）
SP1403-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 5.0A （3hp）, Heavy Duty - 4.2A （3hp）
SP1403-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 5.0A （3hp）, Heavy Duty - 4.2A （3hp）
SP1404-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 6.9A （5hp）, Heavy Duty - 5.8A （3hp）
SP1404-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 6.9A （5hp）, Heavy Duty - 5.8A （3hp）
SP1404-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 6.9A （5hp）, Heavy Duty - 5.8A （3hp）
SP1405-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 8.8A （5hp）, Heavy Duty - 7.6A （5hp）
SP1405-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 8.8A （5hp）, Heavy Duty - 7.6A （5hp）
SP1405-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 8.8A （5hp）, Heavy Duty - 7.6A （5hp）
SP1406-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 11A （7.5hp）, Heavy Duty - 9.5A （5hp）
SP1406-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 11A （7.5hp）, Heavy Duty - 9.5A （5hp）
SP1406-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 11A （7.5hp）, Heavy Duty - 9.5A （5hp）
SP1WE Extends standard warranty to 5 Years on Unidrive SP - Size 1
SP2201-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 15.5A （5hp）, Heavy Duty - 12.6A （3hp）
SP2201-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 15.5A （5hp）, Heavy Duty - 12.6A （3hp）
SP2201-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 15.5A （5hp）, Heavy Duty - 12.6A （3hp）
SP2202-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 22A （7.5hp）, Heavy Duty - 17A （5hp）
SP2202-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 22A （7.5hp）, Heavy Duty - 17A （5hp）
SP2202-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 22A （7.5hp）, Heavy Duty - 17A （5hp）
SP2203-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 28A （10hp）, Heavy Duty - 25A （7.5hp）
SP2203-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 28A （10hp）, Heavy Duty - 25A （7.5hp）
SP2203-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 28A （10hp）, Heavy Duty - 25A （7.5hp）
SP2401-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 15.3A （10hp）, Heavy Duty - 13A （10hp）
SP2401-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 15.3A （10hp）, Heavy Duty - 13A （10hp）
SP2401-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 15.3A （10hp）, Heavy Duty - 13A （10hp）
SP2402-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 21A （15hp）, Heavy Duty - 16.5A （10hp）
SP2402-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 21A （15hp）, Heavy Duty - 16.5A （10hp）
SP2402-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 21A （15hp）, Heavy Duty - 16.5A （10hp）
SP2403-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 29A （20hp）, Heavy Duty - 25A （20hp）
SP2403-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 29A （20hp）, Heavy Duty - 25A （20hp）
SP2403-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 29A （20hp）, Heavy Duty - 25A （20hp）
SP2WE Extends standard warranty to 5 Years on Unidrive SP - Size 2
SP3201-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 42A （15hp）, Heavy Duty - 31A （10hp）
SP3201-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 42A （15hp）, Heavy Duty - 31A （10hp）
SP3201-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 42A （15hp）, Heavy Duty - 31A （10hp）
SP3202-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 54A （20hp）, Heavy Duty - 42A （15hp）
SP3202-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 54A （20hp）, Heavy Duty - 42A （15hp）
SP3202-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 54A （20hp）, Heavy Duty - 42A （15hp）
SP3401-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 35A （25hp）, Heavy Duty - 32A （25hp）
SP3401-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 35A （25hp）, Heavy Duty - 32A （25hp）
SP3401-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 35A （25hp）, Heavy Duty - 32A （25hp）
SP3402-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 43A （30hp）, Heavy Duty - 40A （30hp）
SP3402-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 43A （30hp）, Heavy Duty - 40A （30hp）
SP3402-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 43A （30hp）, Heavy Duty - 40A （30hp）
SP3403-LCD Unidrive SP with LCD Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 56A （40hp）, Heavy Duty - 46A （30hp）
SP3403-LED Unidrive SP with LED Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 56A （40hp）, Heavy Duty - 46A （30hp）
SP3403-NKP Unidrive SP without Keypad, 460Vac, Max Cont Output Current （hp）: Normal Duty - 56A （40hp）, Heavy Duty - 46A （30hp）
SP3501-LCD Unidrive SP with LCD Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 5.4A （3hp）, Heavy Duty - 4.1A （2hp）
SP3501-LED Unidrive SP with LED Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 5.4A （3hp）, Heavy Duty - 4.1A （2hp）
SP3501-NKP Unidrive SP without Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 5.4A （3hp）, Heavy Duty - 4.1A （2hp）
SP3502-LCD Unidrive SP with LCD Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 6.1A （5hp）, Heavy Duty - 5.4A （3hp）
SP3502-LED Unidrive SP with LED Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 6.1A （5hp）, Heavy Duty - 5.4A （3hp）
SP3502-NKP Unidrive SP without Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 6.1A （5hp）, Heavy Duty - 5.4A （3hp）
SP3503-LCD Unidrive SP with LCD Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 8.4A （7.5hp）, Heavy Duty - 6.1A （5hp）
SP3503-LED Unidrive SP with LED Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 8.4A （7.5hp）, Heavy Duty - 6.1A （5hp）
SP3503-NKP Unidrive SP without Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 8.4A （7.5hp）, Heavy Duty - 6.1A （5hp）
SP3504-LCD Unidrive SP with LCD Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 11A （10hp）, Heavy Duty - 9.5A （7.5hp）
SP3504-LED Unidrive SP with LED Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 11A （10hp）, Heavy Duty - 9.5A （7.5hp）
SP3504-NKP Unidrive SP without Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 11A （10hp）, Heavy Duty - 9.5A （7.5hp）
SP3505-LCD Unidrive SP with LCD Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 16A （15hp）, Heavy Duty - 12A （10hp）
SP3505-LED Unidrive SP with LED Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 16A （15hp）, Heavy Duty - 12A （10hp）
SP3505-NKP Unidrive SP without Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 16A （15hp）, Heavy Duty - 12A （10hp）
SP3506-LCD Unidrive SP with LCD Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 22A （20hp）, Heavy Duty - 18A （15hp）
SP3506-LED Unidrive SP with LED Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 22A （20hp）, Heavy Duty - 18A （15hp）
SP3506-NKP Unidrive SP without Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 22A （20hp）, Heavy Duty - 18A （15hp）
SP3507-LCD Unidrive SP with LCD Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 27A （25hp）, Heavy Duty - 22A （20hp）
SP3507-LED Unidrive SP with LED Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 27A （25hp）, Heavy Duty - 22A （20hp）
SP3507-NKP Unidrive SP without Keypad, 575Vac, Max Cont Output Current （hp）: Normal Duty - 27A （25hp）, Heavy Duty - 22A （20hp）
SP3WE Extends standard warranty to 5 Years on Unidrive SP - Size 3
SP4201-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 68A （25hp）, Heavy Duty - 56A （20hp）
SP4201-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 68A （25hp）, Heavy Duty - 56A （20hp）
SP4201-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 68A （25hp）, Heavy Duty - 56A （20hp）
SP4202-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 80A （30hp）, Heavy Duty - 68A （25hp）
SP4202-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 80A （30hp）, Heavy Duty - 68A （25hp）
SP4202-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 80A （30hp）, Heavy Duty - 68A （25hp）
SP4203-LCD Unidrive SP with LCD Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 104A （40hp）, Heavy Duty - 80A （30hp）
SP4203-LED Unidrive SP with LED Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 104A （40hp）, Heavy Duty - 80A （30hp）
SP4203-NKP Unidrive SP without Keypad, 230Vac, Max Cont Output Current （hp）: Normal Duty - 104A （40hp）, Heavy Duty - 80A （30hp）
SP4401-LCD Unidrive SP with LCD Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty - 68A （50hp）, Heavy Duty - 60A （50hp）
SP4401-LED Unidrive SP with LED Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty - 68A （50hp）, Heavy Duty - 60A （50hp）
SP4401-NKP Unidrive SP without Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty - 68A （50hp）, Heavy Duty - 60A （50hp）
SP4402-LCD Unidrive SP with LCD Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty - 83A （60hp）, Heavy Duty - 74A （60hp）
SP4402-LED Unidrive SP with LED Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty - 83A （60hp）, Heavy Duty - 74A （60hp）
SP4402-NKP Unidrive SP without Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty - 83A （60hp）, Heavy Duty - 74A （60hp）
SP4403-LCD Unidrive SP with LCD Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty -104A （75hp）, Heavy Duty -96A （75hp）
SP4403-LED Unidrive SP with LED Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty -104A （75hp）, Heavy Duty -96A （75hp）
SP4403-NKP Unidrive SP without Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty -104A （75hp）, Heavy Duty -96A （75hp）
SP4601-LCD Unidrive SP with LCD Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 22A （20/25hp）, Heavy Duty - 18A （15/20hp）
SP4601-LED Unidrive SP with LED Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 22A （20/25hp）, Heavy Duty - 18A （15/20hp）
SP4601-NKP Unidrive SP without Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 22A （20/25hp）, Heavy Duty - 18A 15/20hp）
SP4602-LCD Unidrive SP with LCD Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 27A （25/30hp）, Heavy Duty - 22A （20/25hp）
SP4602-LED Unidrive SP with LED Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 27A （25/30hp）, Heavy Duty - 22A （20/25hp）
SP4602-NKP Unidrive SP without Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 27A （25/30hp）, Heavy Duty - 22A （20/25hp）
SP4603-LCD Unidrive SP with LCD Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 36A （30/40hp）, Heavy Duty - 27A （25/30hp）
SP4603-LED Unidrive SP with LED Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 36A （30/40hp）, Heavy Duty - 27A （25/30hp）
SP4603-NKP Unidrive SP without Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 36A （30/40hp）, Heavy Duty - 27A （25/30hp）
SP4604-LCD Unidrive SP with LCD Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 43A （40/50hp）, Heavy Duty - 36A （40hp）
SP4604-LED Unidrive SP with LED Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 43A （40/50hp）, Heavy Duty - 36A （30/40hp）
SP4604-NKP Unidrive SP without Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 43A （40/50hp）, Heavy Duty - 36A （30/40hp）
SP4605-LCD Unidrive SP with LCD Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 52A （50/60hp）, Heavy Duty - 43A （40/50hp）
SP4605-LED Unidrive SP with LED Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 52A （50/60hp）, Heavy Duty - 43A （40/50hp）
SP4605-NKP Unidrive SP without Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 52A （50/60hp）, Heavy Duty - 43A （40/50hp）
SP4606-LCD Unidrive SP with LCD Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 62A （60/74hp）, Heavy Duty - 52A （50/60hp）
SP4606-LED Unidrive SP with LED Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 62A （60/74hp）, Heavy Duty - 52A （50/60hp）
SP4606-NKP Unidrive SP without Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 62A （60/75hp）, Heavy Duty - 52A （50/60hp）
SP4WE Extends standard warranty to 5 Years on Unidrive SP - Size 4
SP5401-LCD Unidrive SP with LCD Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty -138A （100P）, Heavy Duty -124A （100hp）
SP5401-LED Unidrive SP with LED Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty -138A （100P）, Heavy Duty -124A （100hp）
SP5401-NKP Unidrive SP without Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty -138A （100P）, Heavy Duty -124A （100hp）
SP5402-LCD Unidrive SP with LCD Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty -168A （125P）, Heavy Duty -156A （125hp）
SP5402-LED Unidrive SP with LED Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty -168A （125P）, Heavy Duty -156A （125hp）
SP5402-NKP Unidrive SP without Keypad, 480Vac, Max Cont Output Current （hp）: Normal Duty -168A （125P）, Heavy Duty -156A （125hp）
SP5601-LCD Unidrive SP with LCD Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 84A （75/100hp）, Heavy Duty - 62A （75hp）
SP5601-LED Unidrive SP with LED Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 84A （75/100hp）, Heavy Duty - 62A （60/75hp）
SP5601-NKP Unidrive SP without Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 84A （75/100hp）, Heavy Duty - 62A （60/75hp）
SP5602-LCD Unidrive SP with LCD Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 99A （100/125hp）, Heavy Duty - 84A （100hp）
SP5602-LED Unidrive SP with LED Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 99A （100/125hp）, Heavy Duty - 84A （100hp）
SP5602-NKP Unidrive SP without Keypad, 575/690Vac, Max Cont Output Current （hp）: Normal Duty - 99A （100/125hp）, Heavy Duty - 84A （75/100hp）
SX13200075PB Commander SX, 1.0hp, 230Vac, 3 Input - 3 Output, 4.4A Cont. Output Current, Nema 4X
SX13400075PB Commander SX, 1.0hp, 460Vac, 3 Input - 3 Output, 2.2A Cont. Output Current, Nema 4X
SX13400150PB Commander SX, 2.0hp, 460Vac, 3 Input - 3 Output, 4.4A Cont. Output Current, Nema 4X
SX1WE Extends standard warranty to 5 Years on Commander SX - Size 1
SX23200150PB Commander SX, 2.0hp, 230Vac, 3 Input - 3 Output, 8.0A Cont. Output Current, Nema 4X
SX23200220PB Commander SX, 3.0hp, 230Vac, 3 Input - 3 Output, 10.0A Cont. Output Current, Nema 4X
SX23400220PB Commander SX, 3.0hp, 460Vac, 3 Input - 3 Output, 6.1A Cont. Output Current, Nema 4X
SX23400400PB Commander SX, 5.0hp, 460Vac, 3 Input - 3 Output, 10.0A Cont. Output Current, Nema 4X
SX2WE Extends standard warranty to 5 Years on Commander SX - Size 2
SX33200400PB Commander SX, 5.0hp, 230Vac, 3 Input - 3 Output, 16.9A Cont. Output Current, Nema 4X
SX33400550PB Commander SX, 7.5hp, 460Vac, 3 Input - 3 Output, 13.6A Cont. Output Current, Nema 4X
SX33400750PB Commander SX, 10.0hp, 460Vac, 3 Input - 3 Output, 16.9A Cont. Output Current, Nema 4X
SX3WE Extends standard warranty to 5 Years on Commander SX - Size 3
SXSOFT Windows based configuration tool for the Commander SX
SYPT-LITE Programming tool for drive＇s with built in PLC capability ａnd SM-Apps Lite Module
SYPT-LITE Programming tool for drive＇s with built in PLC capability ａnd SM-Apps Lite Module
SYPTPRO Coprocessor module programming ａnd CTNet system configuration tool, Software registration required
SYPTPRO Coprocessor module programming ａnd CTNet system configuration tool, Software registration required
T-21 Data Entry Terminal - used w/ either FX or PCM 535 for editing ａnd displaying simple motion parameters
T-60 PC based operator interface keyboard ａnd display terminal, 8 I/O,  9-32 VDC, 9 pin comm. conn. 64k Std
T-61 Enhanced PC based operator interface keyboard ａnd display terminal, 24 I/O,  95-145 Vac, 25 pin communication connector 32k Standard
TD-10 RS-232, DB-9 male to DB-9 male, 10 ft Length
TD-25 RS-232, DB-9 male to DB-9 male, 25 ft Length
TD-50 RS-232, DB-9 male to DB-9 male, 50 ft Length
TD-xxx RS-232, DB-9 male to DB-9 male, Custom Length - 1 ft increments
TERM-H Terminator Block for head of serial string （EN,Epsilon, MDS）
TERM-T Terminator Block for tail of serial string （EN, Epsilon, MDS）
TIA-10 RS232 Serial Interface Molded Cable, DB9-S on computer end, DB9-P on drive end, 10 ft Length （EN, Epsilon, MDS to PC, HMI, PLC {Modbus Master}）
TIA-25 RS232 Serial Interface Molded Cable, DB9-S on computer end, DB9-P on drive end, 25 ft Length （EN, Epsilon, MDS to PC, HMI, PLC {Modbus Master}）
TIA-50 RS232 Serial Interface Molded Cable, DB9-S on computer end, DB9-P on drive end, 50 ft Length （EN, Epsilon, MDS to PC, HMI, PLC {Modbus Master}）
TIA-ECE-xxx External FX to PC
TIA-ICE-xxx Internal FX to PC
TIA-xxx RS232 Serial Interface Molded Cable, DB9-S on computer end, DB9-P on drive end, Custom Length - 1 ft increments （EN, Epsilon, MDS to PC, HMI, PLC {Modbus Master}）
UD50 Extended I/O, Small Option Module （Unidrive）
UD50-UG UD50 Module User Guide
UD51 Second Encoder Feedback, Small Option Module （Unidrive）
UD51-UG UD51 Module User Guide
UD52 SIN/COS （Absolute - Hiperface Protocol） Encoder Feedback, Small Option Module （Unidrive）
UD52-UG UD52 Module User Guide
UD53 Resolver Feedback, Small Option Module （Undrive）
UD53-UG UD53 Module User Guide
UD55 Memory Cloning, Small Option Module （Unidrive）
UD55-UG UD55 Module User Guide
UD70 Application Coprocessor with Modbus RTU, Large Option module （Unidrive）
UD70/MD29-UG UD70 ａnd MD29 User Guide
UD70-DAC Duty-Assist, Preprogrammed Large Option Module with Modbus RTU （Unidrive）
UD70-DMW Dual Mode Winder, Preprogrammed Large Option Module with Modbus RTU （Unidrive）
UD70-FSC Flying Shear Control, Preprogrammed Large Option Module with Modbus RTU （Unidrive）
UD71 RS-232/485, Large Option Module （Unidrive）
UD71-UG UD71 Module User Guide
UD73 Application Coprocessor with Profibus-DP, Large Option module （Unidrive）
UD73-COM Profibus-DP, Large Option Module - Communications Only （Unidrive）
UD73-DAC Duty-Assist, Preprogrammed Large Option Module with Profibus-DP （Unidrive）
UD73-DMW Dual Mode Winder, Preprogrammed Large Option Module with Profibus-DP （Unidrive）
UD73-FSC Flying Shear Control, Preprogrammed Large Option Module with Profibus-DP （Unidrive）
UD73-UG UD73 Module （Profibus-DP） User Guide
UD74 Application Coprocessor with InterBus-S, Large Option module （Unidrive）
UD74-COM InterBus-S, Large Option Module - Communications Only （Unidrive）
UD74-DAC Duty-Assist, Preprogrammed Large Option Module with Interbus-S （Unidrive）
UD74-DMW Dual Mode Winder, Preprogrammed Large Option Module with Interbus-S （Unidrive）
UD74-FSC Flying Shear Control, Preprogrammed Large Option Module with Interbus-S （Unidrive）
UD74-UG UD74 Module （Interbus-S） User Guide
UD75 Application Coprocessor with CTNet （Not compatible with UD75-RevD Module）, Large Option module （Unidrive）
UD75-DAC Duty-Assist, Preprogrammed Large Option Module with CTNet （Unidrive）
UD75-DMW Dual Mode Winder, Preprogrammed Large Option Module with CTNet （Unidrive）
UD75-FSC Flying Shear Control, Preprogrammed Large Option Module with CTNet （Unidrive）
UD75-REVD Application Coprocessor with CTNet Rev D （Current Version of CTNet）, Large Option module （Unidrive）
UD76 Application Coprocessor with Modbus Plus, Large Option module （Unidrive）
UD76-COM Modbus Plus, Large Option Module - Communications Only （Unidrive）
UD76-UG UD76 Module （Modbus Plus） User Guide
UD77CO Application Coprocessor with CANopen, Large Option module （Unidrive）
UD77CO-COM CANOpen, Large Option Module - Communications Only （Unidrive）
UD77-DAC Duty-Assist, Preprogrammed Large Option Module with DeviceNet （Unidrive）
UD77-DMW Dual Mode Winder, Preprogrammed Large Option Module with DeviceNet （Unidrive）
UD77DN Application Coprocessor with DeviceNet, Large Option module （Unidrive）
UD77DN-COM DeviceNet, Large Option Module - Communications Only （Unidrive）
UD77-FSC Flying Shear Control, Preprogrammed Large Option Module with DeviceNet （Unidrive）
UD77-UG UD77 Module （DeviceNet） User Guide
UD78 Precision Analog Input, 24VDC Back-up Supply Connection, Large Option Module （Unidrive）
UD78-UG UD78 Module User Guide
UDBV1 Screw terminal to 15 pin break out board for servo motor encoder feedback cable （Unidrive）
UDBV3 Screw terminal to 8 pin break out board for vector motor encoder feedback cable （Unidrive）
UFCS-005 Motor Feedback Cable, Connectors on both ends, 5 ft Length （Unidrive, Unidrive SP to NT, MG, MH）
UFCS-015 Motor Feedback Cable, Connectors on both ends, 15 ft Length （Unidrive, Unidrive SP to NT, MG, MH）
UFCS-025 Motor Feedback Cable, Connectors on both ends, 25 ft Length （Unidrive, Unidrive SP to NT, MG, MH）
UFCS-050 Motor Feedback Cable, Connectors on both ends, 50 ft Length （Unidrive, Unidrive SP to NT, MG, MH）
UFCS-100 Motor Feedback Cable, Connectors on both ends, 100 ft Length （Unidrive, Unidrive SP to NT, MG, MH）
UFCS-xxx Motor Feedback Cable, Connectors at both ends, Custom Length - 1 ft increments （Unidrive, Unidrive SP to NT, MG, MH）
UNI1203LV Unidrive （Size 1）, 1hp, 230V - 3, 3.8A Cont. Output Current, Nema 1
UNI1203VTCLV Unidrive VTC （Size 1）, 1hp, 230V - 3, 3.8 A Cont. Output Current, Nema 1
UNI1204LV Unidrive （Size 1）, 1.5hp, 230V - 3, 5.6A Cont. Output Current, Nema 1
UNI1204VTCLV Unidrive VTC （Size 1）, 1.5hp, 230V - 3, 5.6 A Cont. Output Current, Nema 1
UNI1205LV Unidrive （Size 1）, 3hp, 230V - 3, 9.5A Cont. Output Current, Nema 1
UNI1205VTCLV Unidrive VTC （Size 1）, 3hp, 230V - 3, 9.5 A Cont. Output Current, Nema 1
UNI1401 Unidrive （Size 1）, 1hp, 460V - 3, 2.1A Cont. Output Current, Nema 1
UNI1401LFT Unidrive LFT, 1hp, 460V - 3, 2.1 Amps, Nema 1
UNI1401-N1 Unidrive ExpressPak, 1hp, 460V - 3, 2.1 Amps, Nema 1
UNI1401-N12 Unidrive ExpressPak, 1hp, 460V - 3, 2.1 Amps, Nema 12
UNI1401VTC Unidrive VTC （Size 1）, 1hp, 460V - 3, 2.1 A Cont. Output Current, Nema 1
UNI1402 Unidrive （Size 1）, 1.5hp, 460V - 3, 2.8A Cont. Output Current, Nema 1
UNI1402LFT Unidrive LFT, 1.5hp, 460V - 3, 2.8 Amps, Nema 1
UNI1402-N1 Unidrive ExpressPak, 1.5hp, 460V - 3, 2.8 Amps, Nema 1
UNI1402-N12 Unidrive ExpressPak, 1.5hp, 460V - 3, 2.8 Amps, Nema 12
UNI1402VTC Unidrive VTC （Size 1）, 1.5hp, 460V - 3, 2.8 A Cont. Output Current, Nema 1
UNI1403 Unidrive （Size 1）, 2hp, 460V - 3, 3.8A Cont. Output Current, Nema 1
UNI1403LFT Unidrive LFT, 2hp, 460V - 3, 3.8 Amps, Nema 1
UNI1403-N1 Unidrive ExpressPak, 2hp, 460V - 3, 3.8 Amps, Nema 1
UNI1403-N12 Unidrive ExpressPak, 2hp, 460V - 3, 3.8 Amps, Nema 12
UNI1403VTC Unidrive VTC （Size 1）, 2hp, 460V - 3, 3.8 A Cont. Output Current, Nema 1
UNI1404 Unidrive （Size 1）, 3hp, 460V - 3, 5.6A Cont. Output Current, Nema 1
UNI1404LFT Unidrive LFT, 3hp, 460V - 3, 5.6 Amps, Nema 1
UNI1404-N1 Unidrive ExpressPak, 3hp, 460V - 3, 5.6 Amps, Nema 1
UNI1404-N12 Unidrive ExpressPak, 3hp, 460V - 3, 5.6 Amps, Nema 12
UNI1404VTC Unidrive VTC （Size 1）, 3hp, 460V - 3, 5.6 A Cont. Output Current, Nema 1
UNI1405 Unidrive （Size 1）, 5hp, 460V - 3, 9.5A Cont. Output Current, Nema 1
UNI1405LFT Unidrive LFT, 5hp, 460V - 3, 9.5 Amps, Nema 1
UNI1405-N1 Unidrive ExpressPak, 5hp, 460V - 3, 9.5 Amps, Nema 1
UNI1405-N12 Unidrive ExpressPak, 5hp, 460V - 3, 9.5 Amps, Nema 12
UNI1405VTC Unidrive VTC （Size 1）, 5hp, 460V - 3, 9.5 A Cont. Output Current, Nema 1
UNI1WE >Extends standard warranty to 5 Years on Unidrive - Size 1
UNI2201LV Unidrive （Size 2）, 3hp, 230V - 3, 12.0A Cont. Output Current, Nema 1
UNI2201VTCLV Unidrive VTC （Size 2）, 3hp, 230V - 3, 12 A Cont. Output Current, Nema 1
UNI2202LV Unidrive （Size 2）, 5hp, 230V - 3, 16.0A Cont. Output Current, Nema 1
UNI2202VTCLV Unidrive VTC （Size 2）, 5hp, 230V - 3, 16 A Cont. Output Current, Nema 1
UNI2203LV Unidrive （Size 2）, 7.5hp, 230V - 3, 25A Cont. Output Current, Nema 1
UNI2203VTCLV Unidrive VTC （Size 2）, 7.5hp, 230V - 3, 25 A Cont. Output Current, Nema 1
UNI2401 Unidrive （Size 2）, 7.5hp, 460V - 3, 12A Cont. Output Current, Nema 1
UNI2401LFT Unidrive LFT, 7.5hp, 460V - 3, 12 Amps, Nema 1
UNI2401-N1 Unidrive ExpressPak, 7.5hp, 460V - 3, 12 Amps, Nema 1
UNI2401-N12 Unidrive ExpressPak, 7.5hp, 460V - 3, 12 Amps, Nema 12
UNI2401VTC Unidrive VTC （Size 2）, 7.5hp, 460V - 3, 12 A Cont. Output Current, Nema 1
UNI2402 Unidrive （Size 2）, 10hp, 460V - 3, 16A Cont. Output Current, Nema 1
UNI2402LFT Unidrive LFT, 10hp, 460V - 3, 16 Amps, Nema 1
UNI2402-N1 Unidrive ExpressPak, 10hp, 460V - 3, 16 Amps, Nema 1
UNI2402-N12 Unidrive ExpressPak, 10hp, 460V - 3, 16 Amps, Nema 12
UNI2402VTC Unidrive VTC （Size 2）, 10hp, 460V - 3, 16 A Cont. Output Current, Nema 1
UNI2403 Unidrive （Size 2）, 15hp, 460V - 3, 25A Cont. Output Current, Nema 1
UNI2403LFT Unidrive LFT, 15hp, 460V - 3, 25 Amps, Nema 1
UNI2403-N1 Unidrive ExpressPak, 15hp, 460V - 3, 25 Amps, Nema 1
UNI2403-N12 Unidrive ExpressPak, 15hp, 460V - 3, 25 Amps, Nema 12
UNI2403VTC Unidrive VTC （Size 2）, 15hp, 460V - 3, 25 A Cont. Output Current, Nema 1
UNI2WE Extends standard warranty to 5 Years on Unidrive - Size 2
UNI3201LV Unidrive （Size 3）, 10hp, 230V - 3, 34A Cont. Output Current, Nema 1
UNI3201VTCLV Unidrive VTC （Size 3）, 10hp, 230V - 3, 34 A Cont. Output Current, Nema 1
UNI3202LV Unidrive （Size 3）, 15hp, 230V - 3, 46A Cont. Output Current, Nema 1
UNI3202VTCLV Unidrive VTC （Size 3）, 15hp, 230V - 3, 46A Cont. Output Current, Nema 1
UNI3203LV Unidrive （Size 3）, 20hp, 230V - 3, 60A Cont. Output Current, Nema 1
UNI3203VTCLV Unidrive VTC （Size 3）, 20hp, 230V - 3, 60A Cont. Output Current, Nema 1
UNI3204LV Unidrive （Size 3）, 25hp （30hp）, 230V - 3, 70A Cont. Output Current, Nema 1
UNI3204VTCLV Unidrive VTC （Size 3）, 25hp / 30hp, 230V - 3, 70A Cont. Output Current, Nema 1
UNI3401 Unidrive （Size 3）, 25hp, 460V - 3, 34A Cont. Output Current, Nema 1
UNI3401LFT Unidrive LFT, 20hp, 460V - 3, 34 Amps, Nema 1
UNI3401-N1 Unidrive ExpressPak, 25hp, 460V - 3, 34 Amps, Nema 1
UNI3401-N12 Unidrive ExpressPak, 25hp, 460V - 3, 34 Amps, Nema 12
UNI3401VTC Unidrive VTC （Size 3）, 25hp, 460V - 3, 34 A Cont. Output Current, Nema 1
UNI3402 Unidrive （Size 3）, 30hp, 460V - 3, 40A Cont. Output Current, Nema 1
UNI3402LFT Unidrive LFT, 25hp, 460V - 3, 40 Amps, Nema 1
UNI3402-N1 Unidrive ExpressPak, 30hp, 460V - 3, 40 Amps, Nema 1
UNI3402-N12 Unidrive ExpressPak, 30hp, 460V - 3, 40 Amps, Nema 12
UNI3402VTC Unidrive VTC （Size 3）, 30hp, 460V - 3, 40 A Cont. Output Current, Nema 1
UNI3403 Unidrive （Size 3）, 30hp, 460V - 3, 46A Cont. Output Current, Nema 1
UNI3403LFT Unidrive LFT, 30hp, 460V - 3, 46 Amps, Nema 1
UNI3403-N1 Unidrive ExpressPak, 30hp, 460V - 3, 46 Amps, Nema 1
UNI3403-N12 Unidrive ExpressPak, 30hp, 460V - 3, 46 Amps, Nema 12
UNI3403VTC Unidrive VTC （Size 3）, 30hp, 460V - 3, 46 A Cont. Output Current, Nema 1
UNI3404 Unidrive （Size 3）, 40hp, 460V - 3, 60A Cont. Output Current, Nema 1
UNI3404LFT Unidrive LFT, 40hp, 460V - 3, 60 Amps, Nema 1
UNI3404-N1 Unidrive ExpressPak, 40hp, 460V - 3, 60 Amps, Nema 1
UNI3404-N12 Unidrive ExpressPak, 40hp, 460V - 3, 60 Amps, Nema 12
UNI3404VTC Unidrive VTC （Size 3）, 40hp, 460V - 3, 60 A Cont. Output Current, Nema 1
UNI3405 Unidrive （Size 3）, 50hp, 460V - 3, 70A Cont. Output Current, Nema 1
UNI3405LFT Unidrive LFT, 50hp, 460V - 3, 70 Amps, Nema 1
UNI3405-N1 Unidrive ExpressPak, 50hp, 460V - 3, 70 Amps, Nema 1
UNI3405-N12 Unidrive ExpressPak, 50hp, 460V - 3, 70 Amps, Nema 12
UNI3405VTC Unidrive VTC （Size 3）, 50hp, 460V - 3, 70 A Cont. Output Current, Nema 1
UNI3WE Extends standard warranty to 5 Years on Unidrive - Size 3
UNI4401 Unidrive （Size 4）, 75hp, 460V - 3, 96A Cont. Output Current, Nema 1
UNI4401LFT Unidrive LFT, 60hp, 460V - 3, 96 Amps, Nema 1
UNI4401-N1 Unidrive ExpressPak, 75hp, 460V - 3, 96 Amps, Nema 1
UNI4401-N12 Unidrive ExpressPak, 75hp, 460V - 3, 96 Amps, Nema 12
UNI4401VTC Unidrive VTC （Size 4）, 75hp, 460V - 3, 96A Cont. Output Current, Nema 1
UNI4402 Unidrive （Size 4）, 100hp, 460V - 3, 124A Cont. Output Current, Nema 1
UNI4402LFT Unidrive LFT, 75hp, 460V - 3, 124 Amps, Nema 1
UNI4402-N1 Unidrive ExpressPak, 100hp, 460V - 3, 124 Amps, Nema 1
UNI4402-N12 Unidrive ExpressPak, 100hp, 460V - 3, 124 Amps, Nema 12
UNI4402VTC Unidrive VTC （Size 4）, 100hp, 460V - 3, 124A Cont. Output Current, Nema 1
UNI4403 Unidrive （Size 4）, 125hp, 460V - 3, 156A Cont. Output Current, Nema 1
UNI4403LFT Unidrive LFT, 100hp, 460V - 3, 156 Amps, Nema 1
UNI4403-N1 Unidrive ExpressPak, 125hp, 460V - 3, 156 Amps, Nema 1
UNI4403-N12 Unidrive ExpressPak, 125hp, 460V - 3, 156 Amps, Nema 12
UNI4403VTC  Unidrive VTC （Size 4）, 125hp, 460V - 3, 156A Output Current, Nema 1
UNI4404  Unidrive （Size 4）, 150hp, 460V - 3, 180A Cont. Output Current, Nema 1
UNI4404LFT Unidrive LFT, 125hp, 460V - 3, 180 Amps, Nema 1
UNI4404-N1 Unidrive ExpressPak, 150hp, 460V - 3, 180 Amps, Nema 1
UNI4404-N12 Unidrive ExpressPak, 150hp, 460V - 3, 180 Amps, Nema 12
UNI4404VTC Unidrive VTC （Size 4）, 150hp, 460V - 3, 180A Cont. Output Current, Nema 1
UNI4405  Unidrive （Size 4）, 150hp, 460V - 3, 202A Cont. Output Current, Nema 1
UNI4405LFT Unidrive LFT, 150hp, 460V - 3, 202 Amps, Nema 1
UNI4405VTC Unidrive VTC （Size 4）, 150hp, 460V - 3, 202A Cont. Output Current, Nema 1
UNI4WE Extends standard warranty to 5 Years on Unidrive - Size 4
UNI5401CT020 Unidrive, 200hp, 480Vac - 3, 240A Cont. Output Current, 6 Pulse, Nema 1
UNI5401CT025-12 Unidrive, 250hp, 480Vac - 3, 300A Cont. Output Current, 12 Pulse, Nema 1
UNI5401VT025 Unidrive, 250hp, 480Vac - 3, 300A Cont. Output Current, 6 Pulse, Nema 1
UNI5402CT025 Unidrive, 250hp, 480Vac - 3, 300A Cont. Output Current, 6 Pulse, Nema 1
UNI5402CT030 Unidrive, 300hp, 480Vac - 3, 360A Cont. Output Current, 6 Pulse, Nema 1
UNI5402CT030-12 Unidrive, 300hp, 480Vac - 3, 360A Cont. Output Current, 12 Pulse, Nema 1
UNI5402CT035 Unidrive, 350hp, 480Vac - 3, 420A Cont. Output Current, 6 Pulse, Nema 1
UNI5402CT035-12 Unidrive, 350hp, 480Vac - 3, 420A Cont. Output Current, 12 Pulse, Nema 1
UNI5402CT040 Unidrive, 400hp, 480Vac - 3, 480A Cont. Output Current, 6 Pulse, Nema 1
UNI5402CT040-12 Unidrive, 400hp, 480Vac - 3, 480A Cont. Output Current, 12 Pulse, Nema 1
UNI5402VT030 Unidrive, 300hp, 480Vac - 3, 360A Cont. Output Current, 6 Pulse, Nema 1
UNI5402VT030-12 Unidrive, 300hp, 480Vac - 3, 360A Cont. Output Current, 12 Pulse, Nema 1
UNI5402VT035 Unidrive, 350hp, 480Vac - 3, 420A Cont. Output Current, 6 Pulse, Nema 1
UNI5402VT035-12 Unidrive, 350hp, 480Vac - 3, 420A Cont. Output Current, 12 Pulse, Nema 1
UNI5402VT040 Unidrive, 400hp, 480Vac - 3, 480A Cont. Output Current, 6 Pulse, Nema 1
UNI5402VT040-12 Unidrive, 400hp, 480Vac - 3, 480A Cont. Output Current, 12 Pulse, Nema 1
UNI5402VT050 Unidrive, 500hp, 480Vac - 3, 600A Cont. Output Current, 6 Pulse, Nema 1
UNI5403CT050 Unidrive, 500hp, 480Vac - 3, 600A Cont. Output Current, 6 Pulse, Nema 1
UNI5403CT060 Unidrive, 600hp, 480Vac - 3, 720A Cont. Output Current, 6 Pulse, Nema 1
UNI5403VT060 Unidrive, 600hp, 480Vac - 3, 720A Cont. Output Current, 6 Pulse, Nema 1
UNI5403VT075 Unidrive, 750hp, 480Vac - 3, 900A Cont. Output Current, 6 Pulse, Nema 1
UNI5404CT050-12 Unidrive, 500hp, 480Vac - 3, 600A Cont. Output Current, 12 Pulse, Nema 1
UNI5404CT060-12 Unidrive, 600hp, 480Vac - 3, 720A Cont. Output Current, 12 Pulse, Nema 1
UNI5404CT080 Unidrive, 800hp, 480Vac - 3, 960A Cont. Output Current, 6 Pulse, Nema 1
UNI5404CT080-12 Unidrive, 800hp, 480Vac - 3, 960A Cont. Output Current, 12 Pulse, Nema 1
UNI5404VT050-12 Unidrive, 500hp, 480Vac - 3, 600A Cont. Output Current, 12 Pulse, Nema 1
UNI5404VT060-12 Unidrive, 600hp, 480Vac - 3, 720A Cont. Output Current, 12 Pulse, Nema 1
UNI5404VT075-12 Unidrive, 750hp, 480VAC - 3, 900A Cont. Output Current, 12 Pulse, Nema 1
UNI5404VT100 Unidrive, 1000hp, 480VAC - 3, 1200A Cont. Output Current, 6 Pulse, Nema 1
UNI5404VT100-12 Unidrive, 1000hp, 480VAC - 3, 1200A Cont. Output Current, 12 Pulse, Nema 1
UNI5404VT125-12 Unidrive, 1250hp, 480VAC - 3, 1500A Cont. Output Current, 12 Pulse, Nema 1
UNI5405CT100 Unidrive, 1000hp, 480VAC - 3, 1200A Cont. Output Current, 6 Pulse, Nema 1
UNI5405VT125 Unidrive, 1250hp, 480VAC - 3, 1500A Cont. Output Current, 6 Pulse, Nema 1
UNI5406CT100-12 Unidrive, 1000hp, 480VAC - 3, 1200A Cont. Output Current, 12 Pulse, Nema 1
UNI54CPOD Unidrive Size 5 Power Module Controller （Control Pod）, 1 required per drive assembly
UNI54PMF12 Unidrive Size 5 Power Module: 240 Amps Constant Torque - 300 Amps Variable Torque. Up to 8 units can be paralled.
UNI54PMF12-IF Unidrive Size 5 Power Module with Input Fuses: 240 Amps Constant Torque - 300 Amps Variable Torque.  Up to 8 units can be paralled.
UNI5DB Unidrive Size 5 Dynamic Braking Transistor Module （Braking resistor sold separately）
UNI5WE Extends standard warranty to 5 Years on Unidrive - Size 5
UNIBAF1 Required for through-panel mounting of size 1 Unidrive
UNIBAF2 Required for through-panel mounting of size 2 Unidrive
UNIBAF3 Required for through-panel mounting of size 3 Unidrive
UNIBAF4 Required for through-panel mounting of size 4 Unidrive
UNIDEMO Unidrive Demo includes: Unidrive with Control Panel in demo case, UniSoft ａnd motor
UNIDEMO SP  UNIDEMO SP includes: 460VAC Unidrive SP, SyPT, SM-Applications Processor Module, SM-Universal Encoder Plus Module, CTIU-110, Servo Motor, Vector Motor ａnd associated cables
UNIDEMO SP-LITE  UNIDEMO SP-Lite includes one each of the following: 460VAC Unidrive SP, Sm-Applications Processor Module, SM-Universal Encoder Plus Module, CTIU-110, SyPT ａnd programming cables
UNIDEMO SP-RETRO  UNIDEMO SP-Retro includes the following modifications to exisiting Unidemo: 460VAC Unidrive SP, SM-Applications Processor Module ａnd SM-Universal Encoder Plus Module
UNIREG1203-N1 Unidrive Regen, 1hp, 230V - 3, 3.8 Amps, Nema 1
UNIREG1203-P0 Unidrive Regen, 1hp, 230V - 3, 3.8 Amps, Panel Mount
UNIREG1204-N1 Unidrive Regen, 1.5hp, 230V - 3, 5.6 Amps, Nema 1
UNIREG1204-P0 Unidrive Regen, 1.5hp, 230V - 3, 5.6 Amps, Panel Mount
UNIREG1205-N1 Unidrive Regen, 2hp, 230V - 3, 12 Amps, Nema 1
UNIREG1205-P0 Unidrive Regen, 2hp, 230V - 3, 12 Amps, Panel Mount
UNIREG1401-N1 Unidrive Regen, 1hp, 480V - 3, 2.1 Amps, Nema 1
UNIREG1401-P0 Unidrive Regen, 1hp, 480V - 3, 2.1 Amps, Panel Mount
UNIREG1402-N1 Unidrive Regen, 1.5hp, 480V - 3, 2.8 Amps, Nema 1
UNIREG1402-P0 Unidrive Regen, 1.5hp, 480V - 3, 2.8 Amps, Panel Mount
UNIREG1403-N1 Unidrive Regen, 2hp, 480V - 3, 3.8 Amps, Nema 1
UNIREG1403-P0 Unidrive Regen, 2hp, 480V - 3, 3.8 Amps, Panel Mount
UNIREG1404-N1 Unidrive Regen, 3hp, 480V - 3, 5.6 Amps, Nema 1
UNIREG1404-P0 Unidrive Regen, 3hp, 480V - 3, 5.6 Amps, Panel Mount
UNIREG1405-N1 Unidrive Regen, 5hp, 480V - 3, 9.5 Amps, Nema 1
UNIREG1405-P0 Unidrive Regen, 5hp, 480V - 3, 9.5 Amps, Panel Mount
UNIREG2201-N1 Unidrive Regen, 3hp, 230V - 3, 12 Amps, Nema 1
UNIREG2201-P0 Unidrive Regen, 3hp, 230V - 3, 12 Amps, Panel Mount
UNIREG2202-N1 Unidrive Regen, 5hp, 230V - 3, 16 Amps, Nema 1
UNIREG2202-P0 Unidrive Regen, 5hp, 230V - 3, 16 Amps, Panel Mount
UNIREG2203-N1 Unidrive Regen, 7.5hp, 230V - 3, 25 Amps, Nema 1
UNIREG2203-P0 Unidrive Regen, 7.5hp, 230V - 3, 25 Amps, Panel Mount
UNIREG2401-N1 Unidrive Regen, 7.5hp, 480V - 3, 12 Amps, Nema 1
UNIREG2401-P0 Unidrive Regen, 7.5hp, 480V - 3, 12 Amps, Panel Mount
UNIREG2402-N1 Unidrive Regen, 10hp, 480V - 3, 16 Amps, Nema 1
UNIREG2402-P0 Unidrive Regen, 10hp, 480V - 3, 16 Amps, Panel Mount
UNIREG2403-N1 Unidrive Regen, 15hp, 480V - 3, 25 Amps, Nema 1
UNIREG2403-P0 Unidrive Regen, 15hp, 480V - 3, 25 Amps, Panel Mount
UNIREG3201-N1 Unidrive Regen, 10hp, 230V - 3, 34 Amps, Nema 1
UNIREG3201-P0 Unidrive Regen, 10hp, 230V - 3, 34 Amps, Panel Mount
UNIREG3202-N1 Unidrive Regen, 15hp, 230V - 3, 46 Amps, Nema 1
UNIREG3202-P0 Unidrive Regen, 15hp, 230V - 3, 46 Amps, Panel Mount
UNIREG3203-N1 Unidrive Regen, 20hp, 230V - 3, 60 Amps, Nema 1
UNIREG3203-P0 Unidrive Regen, 20hp, 230V - 3, 60 Amps, Panel Mount
UNIREG3204-N1 Unidrive Regen, 25hp, 230V - 3, 70 Amps, Nema 1
UNIREG3204-P0 Unidrive Regen, 25hp, 230V - 3, 70 Amps, Panel Mount
UNIREG3401-N1 Unidrive Regen, 25hp, 480V - 3, 34 Amps, Nema 1
UNIREG3401-P0 Unidrive Regen, 25hp, 480V - 3, 34 Amps, Panel Mount
UNIREG3402-N1 Unidrive Regen, 30hp, 480V - 3, 40 Amps, Nema 1
UNIREG3402-P0 Unidrive Regen, 30hp, 480V - 3, 40 Amps, Panel Mount
UNIREG3404-N1 Unidrive Regen, 40hp, 480V - 3, 60 Amps, Nema 1
UNIREG3404-P0 Unidrive Regen, 40hp, 480V - 3, 60 Amps, Panel Mount
UNIREG3405-N1 Unidrive Regen, 50hp, 480V - 3, 70 Amps, Nema 1
UNIREG3405-P0 Unidrive Regen, 50hp, 480V - 3, 70 Amps, Panel Mount
UNIREG4401-N1 Unidrive Regen, 75hp, 480V - 3, 96 Amps, Nema 1
UNIREG4401-P0 Unidrive Regen, 75hp, 480V - 3, 96 Amps, Panel Mount
UNIREG4402-N1 Unidrive Regen, 100hp, 480V - 3, 124 Amps, Nema 1
UNIREG4402-P0 Unidrive Regen, 100hp, 480V - 3, 124 Amps, Panel Mount
UNIREG4403-N1 Unidrive Regen, 125hp, 480V - 3, 156 Amps, Nema 1
UNIREG4403-P0 Unidrive Regen, 125hp, 480V - 3, 156 Amps, Panel Mount
UNIREG4404-N1 Unidrive Regen, 150hp, 480V - 3, 180 Amps, Nema 1
UNIREG4404-P0 Unidrive Regen, 150hp, 480V - 3, 180 Amps, Panel Mount
UNISOFT Windows based Configuration Tool for Unidrive
UNISP-AUG Advanced User Guide: Unidrive SP
UNISP-UG Unidrive SP User Guide
UNIV3-AUG Advanced User Guide: Unidrive V3
UNIV3-UG Unidrive V3 User Guide
UNIWIN Windows based programming software for use with MD03R-02/MD02R-04.
VTC1WE Extends standard warranty to 5 Years on Unidrive VTC - Size 1
VTC2WE Extends standard warranty to 5 Years on Unidrive VTC - Size 2
VTC3WE Extends standard warranty to 5 Years on Unidrive VTC - Size 3
VTC4WE Extends standard warranty to 5 Years on Unidrive VTC - Size 4
VTCSoft Windows based Configuration Tool for Unidrive VTC
XIOR-32 I/O Expansion connection board-rack for 32 G4 narrow type modules only
XPRESSKEY Cloning / copying key, Commander SX Series
M45R-14M Mentor II Drive, 7.5 to 10 hp @ 208-240Vac Input, 15 to 20 hp @ 380-480Vac Input, Regen
M45WE Extends standard warranty to 5 Years on Mentor II - 45A Model
M550-14M Mentor II Drive, 125 hp @ 208-240Vac Input, 250 hp @ 380-480Vac Input, Non-Regen
M550-14M660 Mentor II Drive, 575-660Vac Input, 550A Cont. Output Current, Non-Regen （208-480Vac Control Power Required）
M550R-14M Mentor II Drive, 125 hp @ 208-240Vac Input, 250 hp @ 380-480Vac Input, Regen
M550R-14M660 Mentor II Drive, 575-660Vac Input, 550A Cont. Output Current, Regen （208-480Vac Control Power Required）
M550WE Extends standard warranty to 5 Years on Mentor II - 550A Model
M700-14M Mentor II Drive, 150 hp @ 208-240Vac Input, 300 hp @ 380-480Vac Input, Non-Regen
M700-14M660 Mentor II Drive, 575-660Vac Input, 700A Cont. Output Current, Non-Regen （208-480Vac Control Power Required）
M700R-14M Mentor II Drive, 150 hp @ 208-240Vac Input, 300 hp @ 380-480Vac Input, Regen
M700R-14M660 Mentor II Drive, 575-660Vac Input, 700A Cont. Output Current, Regen （208-480Vac Control Power Required）
M700WE Extends standard warranty to 5 Years on Mentor II - 700A Model
M75-14M Mentor II Drive, 15 hp @ 208-240Vac Input, 25 to 30 hp @ 380-480Vac Input, Non-Regen
M75R-14M Mentor II Drive, 15 hp @ 208-240Vac Input, 25 to 30 hp @ 380-480Vac Input, Regen
M75WE Extends standard warranty to 5 Years on Mentor II - 75A Model
M825-14M Mentor II Drive, 200 hp @ 208-240Vac Input, 400 hp @ 380-480Vac Input, Non-Regen
M825-14M660 Mentor II Drive, 575-660Vac Input, 825A Cont. Output Current, Non-Regen （208-480Vac Control Power Required）
M825R-14M Mentor II Drive, 200 hp @ 208-240Vac Input, 400 hp @ 380-480Vac Input, Regen
M825R-14M660 Mentor II Drive, 575-660Vac Input, 825A Cont. Output Current, Regen （208-480Vac Control Power Required）
M825WE Extends standard warranty to 5 Years on Mentor II - 825A Model
M900-14M Mentor II Drive, 250 hp @ 208-240Vac Input, 500 hp @ 380-480Vac Input, Non-Regen
M900-14M660 Mentor II Drive, 575-660Vac Input, 900A Cont. Output Current, Non-Regen （208-480Vac Control Power Required）
M900R-14M Mentor II Drive, 250 hp @ 208-240Vac Input, 500 hp @ 380-480Vac Input, Regen
M900R-14M660 Mentor II Drive, 575-660Vac Input, 900A Cont. Output Current, Regen （208-480Vac Control Power Required）
M900WE Extends standard warranty to 5 Years on Mentor II - 900A Model
M＇AX 403AN M＇Ax Servo Drive, 3.5A Cont. Output Current, 7A Peak Current （2 Sec）, Supply Voltage: 380-480Vac, with Display ａnd Keypad
M＇AX 406AN M＇Ax Servo Drive, 6.5A Cont. Output Current, 13A Peak Current （2 Sec）, Supply Voltage: 380-480Vac, with Display ａnd Keypad
M＇AX 409AN M＇Ax Servo Drive, 9.5A Cont. Output Current, 19A Peak Current （2 Sec）, Supply Voltage: 380-480Vac, with Display ａnd Keypad
M＇AX 412AN M＇Ax Servo Drive, 12.5A Cont. Output Current, 25A Peak Current （2 Sec）, Supply Voltage: 380-480Vac, with Display ａnd Keypad
MAXAX100 MaxAx, 220V - 3?, 4.2A Output Current, Nema 1
MAXAX200 MaxAx, 220V - 3?, 14A Output Current, Nema 1
MAXAX300 MaxAx, 220V - 3?, 21.2A Output Current, Nema 1
MC-1 Merge Controller - up to 4 lines when used in conjunction w/ PCM-19＇s
MC202-00-000 MC202, 2 Axis controller, 1 servo with encoder follower capability or 2 stepper axis.
MC206-00-000 MC206, 1 to 7 1/2 Axis controller, with 1 servo or stepper axis enabled
MC224-00-000 MC224, 1 to 24 Axis Controller, accepts up to 4 Daughter Boards
MD02R-04 4 line, 20 character back-lit display with function / numeric keypad （with bridging capability）.
MD03R-02 2 line, 20 character back-lit display with function / numeric keypad （no bridging capability）.
MD-24 Profibus-DP interface card （Mentor II, Quantum III）
MD24-UG MD-24 Interface Card （Profibus-DP） User Guide
MD-25 DeviceNet interface interface card （Mentor II, Quantum III）
MD25-UG MD-25 Interface Card （DeviceNet） User Guide
MD-29AN MD29, 32 Bit Co-processor with CTNet （Not compatible with MD-29AN-RevD） （Mentor II, Quantum III）
MD-29AN-RevD MD29, 32 Bit Coprocessor with CTNet-RevD （Current Version of CTNet） （Mentor II, Quantum III）
MD-404-00-000 MDS Drive Module, 4A Cont. Output Current, 8A Peak Current, with Backplane ａnd Fuses
MD-407-00-000 MDS Drive Module, 7A Cont. Output Current, 14A Peak Current, with Backplane ａnd Fuses
MD-410-00-000 MDS Drive Module, 10A Cont. Output Current, 20A Peak Current, with Backplane ａnd Fuses
MD-420-00-000 MDS Drive Module, 20A Cont. Output Current, 40A Peak Current, with Backplane ａnd Fuses
MD-434-00-000 MDS Drive Module, 34A Cont. Output Current, 68A Peak Current, with Backplane ａnd Fuses
MDIBS InterBus-S interface card （Mentor II, Quantum III）
MDIBS-UG MDIBS Interface Card （Interbus-S） User Guide
MentorSoft Windows based Configuration Tool for Mentor
MENTOR-UG Mentor II User Guide
MF-1250-20 AC Line Filter, 3?, 20 amp, 480Vac （MP-1250）
MF-2500-35 AC Line Filter, 3?, 35 amp, 480Vac （MP-2500）
MF-5000-65 AC Line Filter, 3?, 65 amp, 480Vac （MP-5000）
MFG-1 Allows system speed to be adjusted digitally
MGE-205-CBNS-0000 MG 2" Servo Motor, English Mounting Flange, 5 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed, 24VDC Brake
MGE-205-CONS-0000 MG 2" Servo Motor, English Mounting Flange, 5 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed
MGE-208-CBNS-0000 MG 2" Servo Motor, English Mounting Flange, 9 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed, 24VDC Brake
MGE-208-CONS-0000 MG 2" Servo Motor, English Mounting Flange, 9 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed
MGE-316-CBNS-0000 MG 3" Servo Motor, English Mounting Flange, 18.6 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed, 24VDC Brake
MGE-316-CONS-0000 MG 3" Servo Motor, English Mounting Flange, 18.6 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed
MGE-340-CBNS-0000 MG 3" Servo Motor, English Mounting Flange, 48 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 24VDC Brake
MGE-340-CONS-0000 MG 3" Servo Motor, English Mounting Flange, 48 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
MGE-4120-CBNS-0000 MG 4" Servo Motor, English Mounting Flange, 162 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 24VDC Brake
MGE-4120-CONS-0000 MG 4" Servo Motor, English Mounting Flange, 162 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
MGE-455-CBNS-0000 MG 4" Servo Motor, English Mounting Flange, 68 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 24VDC Brake

MGE-455-CONS-0000 MG 4" Servo Motor, English Mounting Flange, 68 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
MGE-490-CBNS-0000 MG 4" Servo Motor, English Mounting Flange, 120 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 24VDC Brake
MGE-490-CONS-0000 MG 4" Servo Motor, English Mounting Flange, 100 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
MGFF-xxx Standard Duty Motor Feedback Cable for 2" & 3" Motors, 8 pair w/shield, Custom Length - 1 ft increments （PTO1A-16-23SSR to NT, MG, MH Motors）
MGFS-xxx Standard Duty Motor Feedback Cable for 2" & 3" Motors, 8 pair w/shield, Custom Length - 1 ft increments, minimum 20 ft per order （DB26P-SS, DB26P-SA to PT06A-16-23-SSR）
MGM-205-CBNS-0000 MG 2" Servo Motor, Metric Mounting Flange, 5 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed, 24VDC Brake
MGM-205-CONS-0000 MG 2" Servo Motor, Metric Mounting Flange, 5 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed
MGM-208-CBNS-0000 MG 2" Servo Motor, Metric Mounting Flange, 9 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed, 24VDC Brake
MGM-208-CONS-0000 MG 2" Servo Motor, Metric Mounting Flange, 9 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed
MGM-316-CBNS-0000 MG 3" Servo Motor, Metric Mounting Flange, 18.6 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed, 24VDC Brake
MGM-316-CONS-0000 MG 3" Servo Motor, Metric Mounting Flange, 18.6 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed
MGM-340-CBNS-0000 MG 3" Servo Motor, Metric Mounting Flange, 48 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 24VDC Brake
MGM-340-CONS-0000 MG 3" Servo Motor, Metric Mounting Flange, 48 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
MGM-4120-CBNS-0000 MG 4" Servo Motor, Metric Mounting Flange, 162 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 24VDC Brake
MGM-4120-CONS-0000 MG 4" Servo Motor, Metric Mounting Flange, 162 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
MGM-455-CBNS-0000 MG 4" Servo Motor, Metric Mounting Flange, 68 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 24VDC Brake
MGM-455-CONS-0000 MG 4" Servo Motor, Metric Mounting Flange, 68 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
MGM-490-CBNS-0000 MG 4" Servo Motor, Metric Mounting Flange, 120 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 24VDC Brake

MGM-490-CONS-0000 MG 4" Servo Motor, Metric Mounting Flange, 120 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
MHE-316-CBNS-0000 MH 3" Servo Motor, English Mounting Flange, 21.5 lbs-in Cont. Torque, MS Connectors, 480Vac, 4000 RPM Max Speed, 24VDC Brake
MHE-316-CONS-0000 MH 3" Servo Motor, English Mounting Flange, 21.5 lbs-in Cont. Torque, MS Connectors, 480Vac, 4000 RPM Max Speed
MHE-340-CBNS-0000 MH 3" Servo Motor, English Mounting Flange, 46 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed, 24VDC Brake
MHE-340-CONS-0000 MH 3" Servo Motor, English Mounting Flange, 46 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed
MHE-455-CBNS-0000 MH 4" Servo Motor, English Mounting Flange, 72.5 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed, 24VDC Brake
MHE-455-CONS-0000 MH 4" Servo Motor, English Mounting Flange, 72.5 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed
MHE-490-CBNS-0000 MH 4" Servo Motor, English Mounting Flange, 105 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed, 24VDC Brake
MHE-490-CONS-0000 MH 4" Servo Motor, English Mounting Flange, 105 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed
MHM-316-CBNS-0000 MH 3" Servo Motor, Metric Mounting Flange, 21.5 lbs-in Cont. Torque, MS Connectors, 480Vac, 4000 RPM Max Speed, 24VDC Brake
MHM-316-CONS-0000 MH 3" Servo Motor, Metric Mounting Flange, 21.5 lbs-in Cont. Torque, MS Connectors, 480Vac, 4000 RPM Max Speed
MHM-340-CBNS-0000 MH 3" Servo Motor, Metric Mounting Flange, 46 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed, 24VDC Brake
MHM-340-CONS-0000 MH 3" Servo Motor, Metric Mounting Flange, 46 lbs-in Cont. Torque, MS Connectors, 3000 RPM Max Speed
MHM-455-CBNS-0000 MH 4" Servo Motor, Metric Mounting Flange, 72.5 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed, 24VDC Brake
MHM-455-CONS-0000 MH 4" Servo Motor, Metric Mounting Flange, 72.5 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed
MHM-490-CBNS-0000 MH 4" Servo Motor, Metric Mounting Flange, 105 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed, 24VDC Brake
MHM-490-CONS-0000 MH 4" Servo Motor, Metric Mounting Flange, 105 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed
HM-6120-CBNS-0000 MH 6" Servo Motor, Metric Mounting Flange, 120 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed, 24VDC Brake
MHM-6120-CONS-0000 MH 6" Servo Motor, Metric Mounting Flange, 120 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed
MHM-6200-CBNS-0000 MH 6" Servo Motor, Metric Mounting Flange, 234 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed, 24VDC Brake
MHM-6200-CONS-0000 MH 6" Servo Motor, Metric Mounting Flange, 234 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed
MHM-6300-CBNS-0000 MH 6" Servo Motor, Metric Mounting Flange, 299 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed, 24VDC Brake
MHM-6300-CONS-0000 MH 6" Servo Motor, Metric Mounting Flange, 299 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed
MHM-8250-CBNS-0000 MH 8" Servo Motor, Metric Mounting Flange, 285 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed, 24VDC Brake
MHM-8250-CONS-0000 MH 8" Servo Motor, Metric Mounting Flange, 285 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed
MHM-8500-CBNS-0000 MH 8" Servo Motor, Metric Mounting Flange, 530 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed, 24VDC Brake
MHM-8500-CONS-0000 MH 8" Servo Motor, Metric Mounting Flange, 530 lbs-in Cont. Torque, MS Connectors, 480Vac, 3000 RPM Max Speed
MHM-8750-CBNS-0000 MH 8" Servo Motor, Metric Mounting Flange, 748 lbs-in Cont. Torque, MS Connectors, 480Vac, 2500 RPM Max Speed, 24VDC Brake
MHM-8750-CONS-0000 MH 8" Servo Motor, Metric Mounting Flange, 748 lbs-in Cont. Torque, MS Connectors, 480Vac, 2500 RPM Max Speed
MLP-002-00 Logic Power Supply, 2.1 A, +24 VDC, Universal Input 90 to 264 Vac （Epsilon, MP-1250）
MLP-005-00 Logic Power Supply, 5.0 A, +24 VDC, Universal Input 90 to 264 Vac （Epsilon, MP-2500）
MLP-010-00 Logic Power Supply, 10 A, +24 VDC, Universal Input 90 to 264 Vac （Epsilon, MP-5000）
MLR-2580-00 AC Line Reactor, 3?, 80 amp, 25 mH （MP-5000, only required on systems using over 35kW of continuous power）
MNT2N100HP-N1 Mentor II ExpressPak, 100hp, 240Vac Input, 344 Amps output, NEMA 1, Non-Regen
MNT2N100HP-N12 Mentor II ExpressPak, 100hp, 240Vac Input, 344 Amps output, NEMA 12, Non-Regen
MNT2N10HP-N1 Mentor II ExpressPak, 10hp, 240Vac Input, 38 Amps output, NEMA 1, Non-Regen
MNT2N10HP-N12 Mentor II ExpressPak, 10hp, 240Vac Input, 38 Amps output, NEMA 12, Non-Regen
MNT2N125HP-N1 Mentor II ExpressPak, 125hp, 240Vac Input, 426 Amps output, NEMA 1, Non-Regen
MNT2N125HP-N12 Mentor II ExpressPak, 125hp, 240Vac Input, 426 Amps output, NEMA 12, Non-Regen
MNT2N150HP-N1 Mentor II ExpressPak, 150hp, 240Vac Input, 506 Amps output, NEMA 1, Non-Regen
MNT2N150HP-N12 Mentor II ExpressPak, 150hp, 240Vac Input, 506 Amps output, NEMA 12, Non-Regen
MNT2N15HP-N1 Mentor II ExpressPak, 15hp, 240Vac Input, 55 Amps output, NEMA 1, Non-Regen
MNT2N15HP-N12 Mentor II ExpressPak, 15hp, 240Vac Input, 55 Amps output, NEMA 12, Non-Regen
MNT2N200HP-N1 Mentor II ExpressPak, 200hp, 240Vac Input, 675 Amps output, NEMA 1, Non-Regen
MNT2N200HP-N12 Mentor II ExpressPak, 200hp, 240Vac Input, 675 Amps output, NEMA 12, Non-Regen
MNT2N20HP-N1 Mentor II ExpressPak, 20hp, 240Vac Input, 72 Amps output, NEMA 1, Non-Regen
MNT2N20HP-N12 Mentor II ExpressPak, 20hp, 240Vac Input, 72 Amps output, NEMA 12, Non-Regen
MNT2N25HP-N1 Mentor II ExpressPak, 25hp, 240Vac Input, 89 Amps output, NEMA 1, Non-Regen
MNT2N25HP-N12 Mentor II ExpressPak, 25hp, 240Vac Input, 89 Amps output, NEMA 12, Non-Regen
MNT2N30HP-N1 Mentor II ExpressPak, 30hp, 240Vac Input, 106 Amps output, NEMA 1, Non-Regen
MNT2N30HP-N12 Mentor II ExpressPak, 30hp, 240Vac Input, 106 Amps output, NEMA 12, Non-Regen
MNT2N40HP-N1 Mentor II ExpressPak, 40hp, 240Vac Input, 140 Amps output, NEMA 1, Non-Regen
MNT2N40HP-N12 Mentor II ExpressPak, 40hp, 240Vac Input, 140 Amps output, NEMA 12, Non-Regen
MNT2N50HP-N1 Mentor II ExpressPak, 50hp, 240Vac Input, 172 Amps output, NEMA 1, Non-Regen
MNT2N50HP-N12 Mentor II ExpressPak, 50hp, 240Vac Input, 172 Amps output, NEMA 12, Non-Regen
MNT2N5HP-N1 Mentor II ExpressPak, 5hp, 240Vac Input, 20 Amps output, NEMA 1, Non-Regen
MNT2N5HP-N12 Mentor II ExpressPak, 5hp, 240Vac Input, 20 Amps output, NEMA 12, Non-Regen
MNT2N60HP-N1 Mentor II ExpressPak, 60hp, 240Vac Input, 206 Amps output, NEMA 1, Non-Regen
MNT2N60HP-N12 Mentor II ExpressPak, 60hp, 240Vac Input, 206 Amps output, NEMA 12, Non-Regen
MNT2N7.5HP-N1 Mentor II ExpressPak, 7.5hp, 240Vac Input, 29 Amps output, NEMA 1, Non-Regen
MNT2N7.5HP-N12 Mentor II ExpressPak, 7.5hp, 240Vac Input, 29 Amps output, NEMA 12, Non-Regen
MNT2N75HP-N1 Mentor II ExpressPak, 75hp, 240Vac Input, 255 Amps output, NEMA 1, Non-Regen
MNT2N75HP-N12 Mentor II ExpressPak, 75hp, 240Vac Input, 255 Amps output, NEMA 12, Non-Regen
MNT2R100HP-N1 Mentor II ExpressPak, 100hp, 240Vac Input, 344 Amps output, NEMA 1, Regen
MNT2R100HP-N12 Mentor II ExpressPak, 100hp, 240Vac Input, 344 Amps output, NEMA 12, Regen
MNT2R10HP-N1 Mentor II ExpressPak, 10hp, 240Vac Input, 38 Amps output, NEMA 1, Regen
MNT2R10HP-N12 Mentor II ExpressPak, 10hp, 240Vac Input, 38 Amps output, NEMA 12, Regen
MNT2R125HP-N1 Mentor II ExpressPak, 125hp, 240Vac Input, 426 Amps output, NEMA 1, Regen
MNT2R125HP-N12 Mentor II ExpressPak, 125hp, 240Vac Input, 426 Amps output, NEMA 12, Regen
MNT2R150HP-N1 Mentor II ExpressPak, 150hp, 240Vac Input, 506 Amps output, NEMA 1, Regen
MNT2R150HP-N12 Mentor II ExpressPak, 150hp, 240Vac Input, 506 Amps output, NEMA 12, Regen
MNT2R15HP-N1 Mentor II ExpressPak, 15hp, 240Vac Input, 55 Amps output, NEMA 1, Regen
MNT2R15HP-N12 Mentor II ExpressPak, 15hp, 240Vac Input, 55 Amps output, NEMA 12, Regen
MNT2R200HP-N1 Mentor II ExpressPak, 200hp, 240Vac Input, 675 Amps output, NEMA 1, Regen
MNT2R200HP-N12 Mentor II ExpressPak, 200hp, 240Vac Input, 675 Amps output, NEMA 12, Regen
MNT2R20HP-N1 Mentor II ExpressPak, 20hp, 240Vac Input, 72 Amps output, NEMA 1, Regen
MNT2R20HP-N12 Mentor II ExpressPak, 20hp, 240Vac Input, 72 Amps output, NEMA 12, Regen
MNT2R25HP-N1 Mentor II ExpressPak, 25hp, 240Vac Input, 89 Amps output, NEMA 1, Regen
MNT2R25HP-N12 Mentor II ExpressPak, 25hp, 240Vac Input, 89 Amps output, NEMA 12, Regen
MNT2R30HP-N1 Mentor II ExpressPak, 30hp, 240Vac Input, 106 Amps output, NEMA 1, Regen
MNT2R30HP-N12 Mentor II ExpressPak, 30hp, 240Vac Input, 106 Amps output, NEMA 12, Regen
MNT2R40HP-N1 Mentor II ExpressPak, 40hp, 240Vac Input, 140 Amps output, NEMA 1, Regen
MNT2R40HP-N12 Mentor II ExpressPak, 40hp, 240Vac Input, 140 Amps output, NEMA 12, Regen
MNT2R50HP-N1 Mentor II ExpressPak, 50hp, 240Vac Input, 172 Amps output, NEMA 1, Regen
MNT2R50HP-N12 Mentor II ExpressPak, 50hp, 240Vac Input, 172 Amps output, NEMA 12, Regen
MNT2R5HP-N1 Mentor II ExpressPak, 5hp, 240Vac Input, 20 Amps output, NEMA 1, Regen
MNT2R5HP-N12 Mentor II ExpressPak, 5hp, 240Vac Input, 20 Amps output, NEMA 12, Regen
MNT2R60HP-N1 Mentor II ExpressPak, 60hp, 240Vac Input, 206 Amps output, NEMA 1, Regen
MNT2R60HP-N12 Mentor II ExpressPak, 60hp, 240Vac Input, 206 Amps output, NEMA 12, Regen
MNT2R7.5HP-N1 Mentor II ExpressPak, 7.5hp, 240Vac Input, 29 Amps output, NEMA 1, Regen
MNT2R7.5HP-N12 Mentor II ExpressPak, 7.5hp, 240Vac Input, 29 Amps output, NEMA 12, Regen
MNT2R75HP-N1 Mentor II ExpressPak, 75hp, 240Vac Input, 255 Amps output, NEMA 1, Regen
MNT2R75HP-N12 Mentor II ExpressPak, 75hp, 240Vac Input, 255 Amps output, NEMA 12, Regen
MNT4N1000HP-N1 Mentor II ExpressPak, 1000hp, 480Vac Input, 1660 Amps output, NEMA 1, Non-Regen
MNT4N1000HP-N12 Mentor II ExpressPak, 1000hp, 480Vac Input, 1660 Amps output, NEMA 12, Non-Regen
MNT4N100HP-N1 Mentor II ExpressPak, 100hp, 480Vac Input, 172 Amps output, NEMA 1, Non-Regen
MNT4N100HP-N12 Mentor II ExpressPak, 100hp, 480Vac Input, 172 Amps output, NEMA 12, Non-Regen
MNT4N10HP-N1 Mentor II ExpressPak, 10hp, 480Vac Input, 20 Amps output, NEMA 1, Non-Regen
MNT4N10HP-N12 Mentor II ExpressPak, 10hp, 480Vac Input, 20 Amps output, NEMA 12, Non-Regen
MNT4N1250HP-N12 Mentor II ExpressPak, 250hp, 480Vac Input, 428 Amps output, NEMA 12, Non-Regen
MNT4N125HP-N1 Mentor II ExpressPak, 125hp, 480Vac Input, 205 Amps output, NEMA 1, Non-Regen
MNT4N125HP-N12 Mentor II ExpressPak, 125hp, 480Vac Input, 205 Amps output, NEMA 12, Non-Regen
MNT4N150HP-N1 Mentor II ExpressPak, 150hp, 480Vac Input, 255 Amps output, NEMA 1, Non-Regen
MNT4N150HP-N12 Mentor II ExpressPak, 150hp, 480Vac Input, 255 Amps output, NEMA 12, Non-Regen
MNT4N15HP-N1 Mentor II ExpressPak, 15hp, 480Vac Input, 29 Amps output, NEMA 1, Non-Regen
MNT4N15HP-N12 Mentor II ExpressPak, 15hp, 480Vac Input, 29 Amps output, NEMA 12, Non-Regen
MNT4N200HP-N1 Mentor II ExpressPak, 200hp, 480Vac Input, 338 Amps output, NEMA 1, Non-Regen
MNT4N200HP-N12
Mentor II ExpressPak, 200hp, 480Vac Input, 338 Amps output, NEMA 12, Non-Regen
MNT4N20HP-N1 Mentor II ExpressPak, 20hp, 480Vac Input, 38 Amps output, NEMA 1, Non-Regen
MNT4N20HP-N12 Mentor II ExpressPak, 20hp, 480Vac Input, 38 Amps output, NEMA 12, Non-Regen
MNT4N250HP-N1 Mentor II ExpressPak, 250hp, 480Vac Input, 428 Amps output, NEMA 1, Non-Regen
MNT4N25HP-N1 Mentor II ExpressPak, 25hp, 480Vac Input, 43 Amps output, NEMA 1, Non-Regen
MNT4N25HP-N12 Mentor II ExpressPak, 25hp, 480Vac Input, 43 Amps output, NEMA 12, Non-Regen
MNT4N300HP-N1 Mentor II ExpressPak, 300hp, 480Vac Input, 508 Amps output, NEMA 1, Non-Regen
MNT4N300HP-N12 Mentor II ExpressPak, 300hp, 480Vac Input, 508 Amps output, NEMA 12, Non-Regen
MNT4N30HP-N1 Mentor II ExpressPak, 30hp, 480Vac Input, 55 Amps output, NEMA 1, Non-Regen
MNT4N30HP-N12 Mentor II ExpressPak, 30hp, 480Vac Input, 55 Amps output, NEMA 12, Non-Regen
MNT4N400HP-N1 Mentor II ExpressPak, 400hp, 480Vac Input, 675 Amps output, NEMA 1, Non-Regen
MNT4N400HP-N12 Mentor II ExpressPak, 400hp, 480Vac Input, 675 Amps output, NEMA 12, Non-Regen
MNT4N40HP-N1 Mentor II ExpressPak, 40hp, 480Vac Input, 72 Amps output, NEMA 1, Non-Regen
MNT4N40HP-N12 Mentor II ExpressPak, 40hp, 480Vac Input, 72 Amps output, NEMA 12, Non-Regen
MNT4N500HP-N1 Mentor II ExpressPak, 500hp, 480Vac Input, 840 Amps output, NEMA 1, Non-Regen
MNT4N500HP-N12 Mentor II ExpressPak, 500hp, 480Vac Input, 840 Amps output, NEMA 12, Non-Regen
MNT4N50HP-N1 Mentor II ExpressPak, 50hp, 480Vac Input, 89 Amps output, NEMA 1, Non-Regen
MNT4N50HP-N12 Mentor II ExpressPak, 50hp, 480Vac Input, 89 Amps output, NEMA 12, Non-Regen
MNT4N5HP-N1 Mentor II ExpressPak, 5hp, 480Vac Input, 10 Amps output, NEMA 1, Non-Regen
MNT4N5HP-N12 Mentor II ExpressPak, 5hp, 480Vac Input, 10 Amps output, NEMA 12, Non-Regen
MNT4N600HP-N1 Mentor II ExpressPak, 600hp, 480Vac Input, 1010 Amps output, NEMA 1, Non-Regen
MNT4N600HP-N12 Mentor II ExpressPak, 600hp, 480Vac Input, 1010 Amps output, NEMA 12, Non-Regen
MNT4N60HP-N1 Mentor II ExpressPak, 60hp, 480Vac Input, 106 Amps output, NEMA 1, Non-Regen
MNT4N60HP-N12 Mentor II ExpressPak, 60hp, 480Vac Input, 106 Amps output, NEMA 12, Non-Regen
MNT4N7.5HP-N1 Mentor II ExpressPak, 7.5hp, 480Vac Input, 12 Amps output, NEMA 1, Non-Regen
MNT4N7.5HP-N12 Mentor II ExpressPak, 7.5hp, 480Vac Input, 12 Amps output, NEMA 12, Non-Regen
MNT4N700HP-N1 Mentor II ExpressPak, 700hp, 480Vac Input, 1171 Amps output, NEMA 1, Non-Regen
MNT4N700HP-N12 Mentor II ExpressPak, 700hp, 480Vac Input, 1171 Amps output, NEMA 12, Non-Regen
MNT4N75HP-N1 Mentor II ExpressPak, 75hp, 480Vac Input, 125 Amps output, NEMA 1, Non-Regen
MNT4N75HP-N12 Mentor II ExpressPak, 75hp, 480Vac Input, 125 Amps output, NEMA 12, Non-Regen
MNT4N800HP-N1 Mentor II ExpressPak, 800hp, 480Vac Input, 1335 Amps output, NEMA 1, Non-Regen
MNT4N800HP-N12 Mentor II ExpressPak, 800hp, 480Vac Input, 1335 Amps output, NEMA 12, Non-Regen
MNT4N900HP-N1 Mentor II ExpressPak, 900hp, 480Vac Input, 1496 Amps output, NEMA 1, Non-Regen
MNT4N900HP-N12 Mentor II ExpressPak, 900hp, 480Vac Input, 1496 Amps output, NEMA 12, Non-Regen
MNT4R1000HP-N1 Mentor II ExpressPak, 1000hp, 480Vac Input, 1660 Amps output, NEMA 1, Regen
MNT4R1000HP-N12 Mentor II ExpressPak, 1000hp, 480Vac Input, 1660 Amps output, NEMA 12, Regen
MNT4R100HP-N1 Mentor II ExpressPak, 100hp, 480Vac Input, 172 Amps output, NEMA 1, Regen
MNT4R100HP-N12 Mentor II ExpressPak, 100hp, 480Vac Input, 172 Amps output, NEMA 12, Regen
MNT4R10HP-N1 Mentor II ExpressPak, 10hp, 480Vac Input, 20 Amps output, NEMA 1, Regen
MNT4R10HP-N12 Mentor II ExpressPak, 10hp, 480Vac Input, 20 Amps output, NEMA 12, Regen
MNT4R125HP-N1 Mentor II ExpressPak, 125hp, 480Vac Input, 205 Amps output, NEMA 1, Regen
MNT4R125HP-N12 Mentor II ExpressPak, 125hp, 480Vac Input, 205 Amps output, NEMA 12, Regen
MNT4R150HP-N1 Mentor II ExpressPak, 150hp, 480Vac Input, 255 Amps output, NEMA 1, Regen
MNT4R150HP-N12 Mentor II ExpressPak, 150hp, 480Vac Input, 255 Amps output, NEMA 12, Regen
MNT4R15HP-N1 Mentor II ExpressPak, 15hp, 480Vac Input, 29 Amps output, NEMA 1, Regen
MNT4R15HP-N12  Mentor II ExpressPak, 15hp, 480Vac Input, 29 Amps output, NEMA 12, Regen
MNT4R200HP-N1  Mentor II ExpressPak, 200hp, 480Vac Input, 338 Amps output, NEMA 1, Regen
MNT4R200HP-N12 Mentor II ExpressPak, 200hp, 480Vac Input, 338 Amps output, NEMA 12, Regen
MNT4R20HP-N1  Mentor II ExpressPak, 20hp, 480Vac Input, 38 Amps output, NEMA 1, Regen
MNT4R20HP-N12 Mentor II ExpressPak, 20hp, 480Vac Input, 38 Amps output, NEMA 12, Regen
MNT4R250HP-N1  Mentor II ExpressPak, 250hp, 480Vac Input, 428 Amps output, NEMA 1, Regen
MNT4R250HP-N12  Mentor II ExpressPak, 250hp, 480Vac Input, 428 Amps output, NEMA 12, Regen
MNT4R25HP-N1  Mentor II ExpressPak, 25hp, 480Vac Input, 43 Amps output, NEMA 1, Regen
MNT4R25HP-N12  Mentor II ExpressPak, 25hp, 480Vac Input, 43 Amps output, NEMA 12, Regen
MNT4R300HP-N1  Mentor II ExpressPak, 300hp, 480Vac Input, 508 Amps output, NEMA 1, Regen
MNT4R300HP-N12  Mentor II ExpressPak, 300hp, 480Vac Input, 508 Amps output, NEMA 12, Regen
MNT4R30HP-N1  Mentor II ExpressPak, 30hp, 480Vac Input, 55 Amps output, NEMA 1, Regen
MNT4R30HP-N12  Mentor II ExpressPak, 30hp, 480Vac Input, 55 Amps output, NEMA 12, Regen
MNT4R400HP-N1  Mentor II ExpressPak, 400hp, 480Vac Input, 675 Amps output, NEMA 1, Regen
MNT4R400HP-N12  Mentor II ExpressPak, 400hp, 480Vac Input, 675 Amps output, NEMA 12, Regen
MNT4R40HP-N1  Mentor II ExpressPak, 40hp, 480Vac Input, 72 Amps output, NEMA 1, Regen
MNT4R40HP-N12  Mentor II ExpressPak, 40hp, 480Vac Input, 72 Amps output, NEMA 12, Regen
MNT4R500HP-N1  Mentor II ExpressPak, 500hp, 480Vac Input, 840 Amps output, NEMA 1, Regen
MNT4R500HP-N12  Mentor II ExpressPak, 500hp, 480Vac Input, 840 Amps output, NEMA 12, Regen
MNT4R50HP-N1  Mentor II ExpressPak, 50hp, 480Vac Input, 89 Amps output, NEMA 1, Regen
MNT4R50HP-N12  Mentor II ExpressPak, 50hp, 480Vac Input, 89 Amps output, NEMA 12, Regen
MNT4R5HP-N1  Mentor II ExpressPak, 5hp, 480Vac Input, 10 Amps output, NEMA 1, Regen
MNT4R5HP-N12  Mentor II ExpressPak, 5hp, 480Vac Input, 10 Amps output, NEMA 12, Regen
MNT4R600HP-N1  Mentor II ExpressPak, 600hp, 480Vac Input, 1010 Amps output, NEMA 1, Regen
MNT4R600HP-N12  Mentor II ExpressPak, 600hp, 480Vac Input, 1010 Amps output, NEMA 12, Regen
MNT4R60HP-N1  Mentor II ExpressPak, 60hp, 480Vac Input, 106 Amps output, NEMA 1, Regen
MNT4R60HP-N12  Mentor II ExpressPak, 60hp, 480Vac Input, 106 Amps output, NEMA 12, Regen
MNT4R7.5HP-N1  Mentor II ExpressPak, 7.5hp, 480Vac Input, 12 Amps output, NEMA 1, Regen
MNT4R7.5HP-N12  Mentor II ExpressPak, 7.5hp, 480Vac Input, 12 Amps output, NEMA 12, Regen
MNT4R700HP-N1  Mentor II ExpressPak, 700hp, 480Vac Input, 1171 Amps output, NEMA 1, Regen
MNT4R700HP-N12  Mentor II ExpressPak, 700hp, 480Vac Input, 1171 Amps output, NEMA 12, Regen
MNT4R75HP-N1  Mentor II ExpressPak, 75hp, 480Vac Input, 125 Amps output, NEMA 1, Regen
MNT4R75HP-N12  Mentor II ExpressPak, 75hp, 480Vac Input, 125 Amps output, NEMA 12, Regen
MNT4R800HP-N1  Mentor II ExpressPak, 800hp, 480Vac Input, 1335 Amps output, NEMA 1, Regen
MNT4R800HP-N12  Mentor II ExpressPak, 800hp, 480Vac Input, 1335 Amps output, NEMA 12, Regen
MNT4R900HP-N1  Mentor II ExpressPak, 900hp, 480Vac Input, 1496 Amps output, NEMA 1, Regen
MNT4R900HP-N12  Mentor II ExpressPak, 900hp, 480Vac Input, 1496 Amps output, NEMA 12, Regen
MP-1250-00-000  MDS Power Module, 12.5 kW @ 480Vac, 6.25 kW @ 240Vac, with Backplane
MP-2500-00-000  MDS Power Module, 25 kW @ 480Vac, 12.5 kW @ 240Vac, with Backplane
MP-5000-00-000  MDS Power Module, 50 kW @ 480Vac, 25 kW @ 240Vac, with Backplane
MPF  Motor Power Filter
MPF-002-00  Motor power filter for long lead lengths, Size 2 （CMDS, CMDF, CMMS, CMMF）
MPF-003-00  Motor power filter for long lead lengths, Size 3 （CMLS）
MVI46-MNET  Modbus TCP/IP Communications Card for SLC500
MVI56-MCM  Modbus Communication Module for ControLogix
MX-1300-CE  MX Series Servo Amplifier
MX-1600-CE  MX Series Servo Amplifier
MX-2600-CE  MX Series Servo Amplifier
MX-280-CE  MX Series Servo Amplifier
MX-3200-CE  No Longer Available - MX Series Servo Amplifier
MX-440-CE  MX Series Servo Amplifier
MX-4800-CE  No Longer Available - MX Series Servo Amplifier
MX-850-CE  MX Series Servo Amplifier
NMA-010  9 pin connector at PC, RS-232, PB-9F to DB-9F, 10 ft
NMA-xxx  9 pin connector at PC, RS-232, PB-9F to DB-9F, Custom Length - 1 ft increments
NMB-010  25 pin connector at PC, RS-232, PB-25F to DB-9F, 10 ft
NMB-xxx  25 pin connector at PC, RS-232, PB-25F to DB-9F, Custom Length - 1 ft increments
NTE-207-CBNS-0000  NT 2" Servo Motor, English Mounting Flange, 7.5 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed, 24VDC Brake
NTE-207-CONS-0000  NT 2" Servo Motor, English Mounting Flange, 7.5 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed
NTE-207-LBNS-0000  NT 2" Servo Motor, English Mounting Flange, 7.5 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 24VDC Brake
NTE-207-LONS-0000  NT 2" Servo Motor, English Mounting Flange, 7.5 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors
NTE-207-TBNS-0000  NT 2" Servo Motor, English Mounting Flange, 7.5 lb-in Cont. Torque, 240Vac, MS Connectors on 1 meter leads, 5000 RPM Max Speed, 24VDC Brake
NTE-207-TONS-0000  NT 2" Servo Motor, English Mounting Flange, 7.5 lb-in Cont. Torque, 240Vac, MS Connectors on 1 meter leads, 5000 RPM Max Speed
NTE-212-CBNS-0000  NT 2" Servo Motor, English Mounting Flange, 12.5 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed, 24VDC Brake
NTE-212-CONS-0000  NT 2" Servo Motor, English Mounting Flange, 12.5 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed
NTE-212-LBNS-0000  NT 2" Servo Motor, English Mounting Flange, 12.5 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 24VDC Brake, 5000 RPM Max Speed
NTE-212-LONS-0000  NT 2" Servo Motor, English Mounting Flange, 12.5 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 5000 RPM Max Speed
NTE-212-TBNS-0000  NT 2" Servo Motor, English Mounting Flange, 12.5 lb-in Cont. Torque, 240Vac, MS Connectors on 1 meter leads, 5000 RPM Max Speed, 24VDC Brake
NTE-212-TONS-0000  NT 2" Servo Motor, English Mounting Flange, 12.5 lb-in Cont. Torque, 240Vac, MS Connectors on 1 meter leads, 5000 RPM Max Speed
NTE-320-CBNS-0000  NT 3" Servo Motor, English Mounting Flange, 20 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed, 24DC Brake
NTE-320-CONS-0000  NT 3" Servo Motor, English Mounting Flange, 20 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed
NTE-320-LBNS-0000 NT 3" Servo Motor, English Mounting Flange, 20 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 4000 RPM Max Speed, 24VDC Brake
NTE-320-LONS-0000  NT 3" Servo Motor, English Mounting Flange, 20 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 4000 RPM Max Speed
NTE-320-TBNS-0000  NT 3" Servo Motor, English Mounting Flange, 20 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 4000 RPM Max Speed, 24VDC Brake
NTE-320-TONS-0000  NT 3" Servo Motor, English Mounting Flange, 20 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 4000 RPM Max Speed
NTE-330-CBNS-0000  NT 3" Servo Motor, English Mounting Flange, 32 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed, 24VDC Brake
NTE-330-CONS-0000  NT 3" Servo Motor, English Mounting Flange, 32 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed
NTE-330-LBNS-0000  NT 3" Servo Motor, English Mounting Flange, 32 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 4000 RPM Max Speed, 24VDC Brake
NTE-330-LONS-0000  NT 3" Servo Motor, English Mounting Flange, 32 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 4000 RPM Max Speed
NTE-330-TBNS-0000  NT 3" Servo Motor, English Mounting Flange, 32 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 4000 RPM Max Speed, 24VDC Brake
NTE-330-TONS-0000  NT 3" Servo Motor, English Mounting Flange, 32 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 4000 RPM Max Speed
NTE-345-CBNS-0000  NT 3" Servo Motor, English Mounting Flange, 47 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 24VDC Brake
NTE-345-CONS-0000  NT 3" Servo Motor, English Mounting Flange, 47 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
NTE-345-LBNS-0000  NT 3" Servo Motor, English Mounting Flange, 47 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 3000 RPM Max Speed, 24VDC Brake
NTE-345-LONS-0000  NT 3" Servo Motor, English Mounting Flange, 47 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 3000 RPM Max Speed
NTE-345-TBNS-0000  NT 3" Servo Motor, English Mounting Flange, 47 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 3000 RPM Max Speed, 24VDC Brake
NTE-345-TONS-0000  NT 3" Servo Motor, English Mounting Flange, 47 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 3000 RPM Max Speed
NTE-355-CBNS-0000 NT 3" Servo Motor, English Mounting Flange, 56 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 4000 RPM Max Speed, 24VDC Brake
NTE-355-CONS-0000  NT 3" Servo Motor, English Mounting Flange, 56 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
NTE-355-LBNS-0000  NT 3" Servo Motor, English Mounting Flange, 56 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 3000 RPM Max Speed, 24VDC Brake
NTE-355-LONS-0000  NT 3" Servo Motor, English Mounting Flange, 56 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 3000 RPM Max Speed
NTE-355-TBNS-0000  NT 3" Servo Motor, English Mounting Flange, 56 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 3000 RPM Max Speed, 24VDC Brake
NTE-355-TONS-0000  NT 3" Servo Motor, English Mounting Flange, 56 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 3000 RPM Max Speed
NTM-207-CBNS-0000  NT 2" Servo Motor, Metric Mounting Flange, 7.3 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed, 24VDC Brake
NTM-207-CONS-0000  NT 2" Servo Motor, Metric Mounting Flange, 7.5 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed
NTM-207-LBNS-0000  NT 2" Servo Motor, Metric Mounting Flange, 7.3 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 5000 RPM Max Speed, 24VDC Brake
NTM-207-LONS-0000  NT 2" Servo Motor, Metric Mounting Flange, 7.5 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 5000 RPM Max Speed
NTM-207-TBNS-0000  NT 2" Servo Motor, Metric Mounting Flange, 7.3 lb-in Cont. Torque, 240Vac, MS Connectors on 1 meter leads, 5000 RPM Max Speed, 24VDC Brake
NTM-207-TONS-0000  NT 2" Servo Motor, Metric Mounting Flange, 7.5 lb-in Cont. Torque, 240Vac, MS Connectors on 1 meter leads, 5000 RPM Max Speed
NTM-212-CBNS-0000  NT 2" Servo Motor, Metric Mounting Flange, 12 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed, 24VDC Brake
NTM-212-CONS-0000  NT 2" Servo Motor, Metric Mounting Flange, 12.5 lb-in Cont. Torque, 240Vac, MS Connectors, 5000 RPM Max Speed
NTM-212-LBNS-0000  NT 2" Servo Motor, Metric Mounting Flange, 12 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 5000 RPM Max Speed, 24VDC Brake
NTM-212-LONS-0000  NT 2" Servo Motor, Metric Mounting Flange, 12.5 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 5000 RPM Max Speed
NTM-212-TBNS-0000  NT 2" Servo Motor, Metric Mounting Flange, 12 lb-in Cont. Torque, 240Vac, MS Connectors on 1 meter leads, 5000 RPM Max Speed, 24VDC Brake
NTM-212-TONS-0000  NT 2" Servo Motor, Metric Mounting Flange, 12.5 lb-in Cont. Torque, 240Vac, MS Connectors on 1 meter leads, 5000 RPM Max Speed
NTM-320-CBNS-0000  NT 3" Servo Motor, Metric Mounting Flange, 20 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed, 24VDC Brake
NTM-320-CONS-0000  NT 3" Servo Motor, Metric Mounting Flange, 20 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed
NTM-320-LBNS-0000  NT 3" Servo Motor, Metric Mounting Flange, 20 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 4000 RPM Max Speed, 24VDC Brake
NTM-320-LONS-0000 NT 3" Servo Motor, Metric Mounting Flange, 20 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 4000 RPM Max Speed
NTM-320-TBNS-0000  NT 3" Servo Motor, Metric Mounting Flange, 20 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 4000 RPM Max Speed, 24VDC Brake
NTM-320-TONS-0000  NT 3" Servo Motor, Metric Mounting Flange, 20 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 4000 RPM Max Speed
NTM-330-CBNS-0000  NT 3" Servo Motor, Metric Mounting Flange, 32 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed, 24VDC Brake
NTM-330-CONS-0000  NT 3" Servo Motor, Metric Mounting Flange, 32 lb-in Cont. Torque, 240Vac, MS Connectors, 4000 RPM Max Speed
NTM-330-LBNS-0000  NT 3" Servo Motor, Metric Mounting Flange, 32 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 4000 RPM Max Speed, 24VDC Brake
NTM-330-LONS-0000  NT 3" Servo Motor, Metric Mounting Flange, 32 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 4000 RPM Max Speed
NTM-330-TBNS-0000  NT 3" Servo Motor, Metric Mounting Flange, 32 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 4000 RPM Max Speed, 24VDC Brake
NTM-330-TONS-0000  NT 3" Servo Motor, Metric Mounting Flange, 32 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 4000 RPM Max Speed
NTM-345-CBNS-0000  NT 3" Servo Motor, Metric Mounting Flange, 47 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 24VDC Brake
NTM-345-CONS-0000  NT 3" Servo Motor, Metric Mounting Flange, 47 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
NTM-345-LBNS-0000 NT 3" Servo Motor, Metric Mounting Flange, 47 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 3000 RPM Max Speed, 24VDC Brake
NTM-345-LONS-0000  NT 3" Servo Motor, Metric Mounting Flange, 47 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 3000 RPM Max Speed
NTM-345-TBNS-0000  NT 3" Servo Motor, Metric Mounting Flange, 47 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 3000 RPM Max Speed, 24VDC Brake
NTM-345-TONS-0000  NT 3" Servo Motor, Metric Mounting Flange, 47 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 3000 RPM Max Speed
NTM-355-CBNS-0000  NT 3" Servo Motor, Metric Mounting Flange, 56 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed, 24VDC Brake
NTM-355-CONS-0000  NT 3" Servo Motor, Metric Mounting Flange, 56 lb-in Cont. Torque, 240Vac, MS Connectors, 3000 RPM Max Speed
NTM-355-LBNS-0000  NT 3" Servo Motor, Metric Mounting Flange, 56 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 3000 RPM Max Speed, 24VDC Brake
NTM-355-LONS-0000  NT 3" Servo Motor, Metric Mounting Flange, 56 lb-in Cont. Torque, 240Vac, 1 Meter Leads without Connectors, 3000 RPM Max Speed
NTM-355-TBNS-0000  NT 3" Servo Motor, Metric Mounting Flange, 56 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 3000 RPM Max Speed, 24VDC Brake
NTM-355-TONS-0000 NT 3" Servo Motor, Metric Mounting Flange, 56 lb-in Cont. Torque, 240Vac, MS Connectors on 1 Meter Leads, 3000 RPM Max Speed
OAC-24-G4  AC input module for use w/ XIOR-32 （12-140 Vac, 3 amps）
ODC-24-G4  DC output module for use w/ XIOR-32 （5-60 VDC 3 amps）
OIT-3165-A00  Operator Interface Panel, 2 Line by 20 Character LCD Display, 24 key keypad
P200-00-000  Servo Encoder Daughter Board （with Registration input） for MC Controller
P210-00-000  Servo Resolver Daughter Board （with Registration input） for MC Controller
P220-00-000  Reference Encoder Daughter Board （2Meg max rate） for MC Controller
P230-00-000  Stepper Daughter Board （step/direction, boost, enable output） for MC Controller
P240-00-000 Stepper Encoder Daughter Board for MC Controller
P242-00-000  Hardware PSWITCH Daughter Board （4 x 1us output） for MC Controller
P260-00-000  Analog Output Daughter Board（12bit +/-10Vdc） for MC Controller
P270-00-000  SSI Servo Encoder Daughter Board for MC Controller
P280-00-000  Differential Stepper Daughter Board for MC Controller
P290-00-000  CAN Daughter Board for MC Controller
P291-00-000  SERCOS Daughter Board for MC Controller, 2 Axis Enabled
P292-00-000  3 Axes SLM Interface Daughter Board for MC Controller
P295-00-000  USB Daughter Board, for use between MC Controller ａnd PC fitted with USB port
P296-00-000  Ethernet Daughter Board for MC Controller
P297-00-000  Profibus Daughter Board for MC Controller
P300-00-000  MC224 Axis Expander
P315-00-000  16 channel, 24v digital I/O in a single DIN-rail unit. CANBus connection. CAN 16-I/O （bi-directional）
P325-00-000  8 channel, ±10v Analogue Input Channels in a single DIN-rail unit. CANBus Connection. CAN 8 Analogue Inputs （12bit single-ended）
P349-00-000  Serial to RS485 Adapter （MC202 port 1 only）
P350-00-000  RS232 Serial Cable from PC to MC Controller, 2 meter Length, 9 pin to mini-DIN
P351-00-000  USB 5m Serial Cable from PC to MC Controller
P354-00-000  Mini-Din to Flying Lead Serial Cable 10 ft
P355-00-000  2 Way System Ribbon, Required if one MC224 axis expansion are used （2 bays total）
P360-00-000  3 Way System Ribbon, Required if two MC224 axis expansion are used （3 bays total）
P365-00-000  4 Way System Ribbon, Required if three MC224 axis expansion are used （4 bays total）
P390-00-000  Enable Code for 1 additional MC206 Servo Axis. Serial number is required if this option is not purchased before shipment.
P393-00-000  Enable Code for 1 additional MC-206 Reference Encoder Axis. Serial number is required if this option is not purchased before shipment.
P395-00-000  Enable Code for 1 additional MC-206 Differential Stepper Axis. Serial number is required if this option is not purchased before shipment.
P398-00-000  Memory Stick （MC206 & MC224）
P399-00-000  MC206 Daughter Adapter Board, required when installing a daughter board in a MC206
PBCONN  Industry standard Profibus connector
PBC-xxx  Bulk Profibus 2 Wire - RS485 Cable, Cut flat on both ends, Custom Length - 1 ft increments
PCM-11 Programmable Motion Controller
PCM-14  Slip Compensation Controller
PCM-15  Ratio Controller
PCM-16  Phase Synchronization Controller
PCM-17  Random Infeed Controller
PCM-18  Web Speed Controller
PCM-19  Conveyor Controller
PCM-22  Rotary Knife Synchronization Controller
PCM-22Q  Phase Synchronization w/ Queuing Controller
PCM-23  Electronic Camming Controller
PCM-24  Press Feed Controller
PS5R-B24  24VDC Power Supply, 600 mA max output current, 100 to 240Vac input power
PX ENCODER  Encoder feedback module, Commander SX Series
PX I/O  I/O extension module, Commander SX Series
PX LCD  LCD hand-held key-pad, Commander SX Series
PX SECURE  Relay category 2-3, Commander SX Series
QUANTUM-UG Quantum III User Guide
RB-CTD-485-xxx  RS485 Cable, Connector on drive end, Dressed leads on I/O Box end, Custom Length - 1 ft increments （max 250 ft）
RB-MDP-485-xxx  RS485 Cable, Dressed leads on MD29 TB1 / SM-Applications, Dressed leads on I/O Box end, Custom Length - 1 ft increments （max 250 ft）
RC-015  Resolver Feedback Cable with cut ends, 15 ft Length （Can be used in both CE ａnd Non-CE applications）
RC-025  Resolver Feedback Cable with cut ends, 25 ft Length （Can be used in both CE ａnd Non-CE applications）
RC-050  Resolver Feedback Cable with cut ends, 50 ft Length （Can be used in both CE ａnd Non-CE applications）
RC-xxx  Resolver Feedback Cable with cut ends, Custom Length - 1 ft increments （Can be used in both CE ａnd Non-CE applications）
RJ45-5  RJ45 5 way splitter for use with RS485 multi-ｄrop networks （Commander SE ａnd Unidrive SP）
RJ45-5  RJ45 5 way splitter for use with RS485 multi-ｄrop networks （Commander SE ａnd Unidrive SP）
RJ45-5  RJ45 5 way splitter for use with RS485 multi-ｄrop networks （Commander SE ａnd Unidrive SP）
RJ45-5  RJ45 5 way splitter for use with RS485 multi-ｄrop networks （Commander SE ａnd Unidrive SP）
RMECFB-xxx  From Bulkhead to Motor, right angle @ motor
RMECF-xxx  From Drive to Motor, right angle @ motor
RMECLA-xxx  From Bulkhead to Bulkhead / Motor, right angle @ motor
RMECLB-xxx  From Bulkhead to Motor, right angle @ motor
RMECL-xxx From Drive to Motor, right angle @ motor
RMECMB-xxx  From Bulkhead to Motor, right angle @ motor
RMECM-xxx From Drive to Motor, right angle @ motor
RMECSB-xxx  From Bulkhead to Motor, right angle at motor
RMECS-xxx  From Drive to Motor , right angle at motor
RSR-2  2kW regeneration shunt regulator, 120-230 Vac, stackable, external shunt resistors sold separately （EN, Epsilon）
SCS-2  Synchronization Encoder, 1000 Line （4000 counts / rev）, Straight Connector （FX Drive Only）
SCS-2R  Synchronization Encoder, 1000 Line, （4000 counts / rev）, Right Angle Connector （FX Drive Only）
SCS-3  Synchronization Encoder, 2500 Line （10000 counts / rev）, Straight Connector （FX Drive Only）
SCS-4  Synchronization Encoder, 3000 Line （12000 counts / rev）, Straight Connector （FX Drive Only）
SCS-4R  Synchronization Encoder, 3000 Line （12000 counts / rev）, Right Angle Connector （FX Drive Only）
SCSLD-2  Synchronization Encoder, 1000 Line （4000 counts / rev）, Straight Connector （FX Drive Only）
SCSLD-2R Synchronization Encoder, 1000 Line （4000 counts / rev）, Right Angle Connector （FX Drive Only）
SCSLD-3  Synchronization Encoder, 2500 Line （10000 counts / rev）, Straight Connector （FX Drive Only）
SCSLD-3R  Synchronization Encoder, 2500 Line （10000 counts / rev）, Right Angle Connector （FX Drive Only）
SCSLD-4  Synchronization Encoder, 3000 Line （12000 counts / rev）, Straight Connector （SNCE）
SCSLD-4R Synchronization Encoder, 3000 Line （12000 counts / rev）, Right Angle Connector （SNCE）
SDC-15-1 1024 line sine wave, 4 channel complimentary quadrature with marker pulse. Standard housing with flying leads
SDC-25-1 1025 line sine wave, 4 channel complimentary quadrature with marker pulse. External housing with connector
SE11  Cable shield clamps for Commander SE - Size 1

該公司產品分類： dcs PLC

供應松下變頻器、伺服電機和驅動器

詳細信息
1、松下電工可編程控制器:FPΣ系列、Fpe系列、FP1系列、FP2系列、FP3系列 ；2、 松下電工變頻器:VF0系列、VF-7F系列、VF-8X系列、VF-8Z系列； 3、 松下電工觸摸屏: GT01系列 、GT10系列、GT30C系列、GT30M系列； 4、 松下電器變頻器:DV700T系列、DV707H系列、M1D系列、M1G系列、M1X系列、M2X系列； 5、 伺服電機和驅動器:MINAS A 系列小慣量、 MINAS A 系列中慣量、MINAS A 系列大慣量 ；6、 松下低噪音小型齒輪馬達:NEWG系列 、G系列 、配套專用馬達.

按訂單壓球機螺旋送料裝置由電磁調速電機驅動

 壓球機螺旋送料裝置由電磁調速電機驅動

壓球機兩壓輥之間進料過多或進入金屬塊時，液壓缸活塞桿受壓過載，液壓泵會停機、蓄能器對壓力變化起緩沖作用、溢流閥開啟回油、活塞桿移位使壓輥間縫隙加大從而使硬物通過壓輥，系統壓恢復正常，可以保護壓輥不損壞。當兩壓輥之間進料過多或進入金屬塊時，液壓缸活塞桿受壓過載，液壓泵會停機、蓄能器對壓力變化起緩沖作用、溢流閥開啟回油、活塞桿移位使壓輥間縫隙加大從而使硬物通過壓輥，系統壓恢復正常，可以保護壓輥不損壞。作為綠色地、可再生地資源，地熱被世界各國確定為維系社會可持續發展地新能源，在地熱資源豐碩地發達國家已得到較好地利用，壓球機開發地殼熱能資源和對固體廢料資源化處理為中亞機械拓展了服務行業。凡是粉狀物料，需壓球的都需型煤壓球機來完成。
    國家現代化建設的發展造就了壓球機與煤球機行業的蓬勃氣憤但愿，特別是在生意慘淡的需求，更加需要企業的研發與立異，煤粉、焦粉、錳礦粉、鋁灰粉、各種玄色有色金屬礦粉、氧化鐵皮及除塵灰、污泥、耐材等 .我公司還可以設計制造高壓力、高強度礦粉用型煤壓球機，型煤壓球機主要用于——有色和玄色金屬礦粉的制球造快，直接進爐冶煉，進步附加值。其應用極為廣泛，在型煤出產方面，壓球機可以對煤粉進行壓制成球，進步了燃燒值，利便了運輸。壓球機螺旋送料裝置由電磁調速電機驅動，經皮帶輪、蝸桿減速器滾動，將被 壓物料強制壓入主進料口。在冶金行業，壓球機可以對在出產中產生的產業廢氣物料進行壓制，已達到對這些廢氣物料的再利用，很大程度上增加了附加值。歡迎新老顧客前來瑞元實地考察指導，隨時恭迎您的大駕光臨
 通訊地址 河南省鄭州鞏義市孝南騰飛路3號
鄭州市瑞元機械制造有限公司
聯 系 人：宋繼軍
客服熱線：
手    機：13838106620/13592418966
固定電話：
破碎機               http://www.hnmanlin.com
球磨機               http://www.ryshashi.com
選礦設備               http://www.cnryjx.com
浮選機               http://www.ryfxj.com
磁選機               http://www.rycxj.com

最新產品

熱門儀器： 液相色譜儀 氣相色譜儀 原子熒光光譜儀 可見分光光度計 液質聯用儀 壓力試驗機 酸度計（PH計） 離心機 高速離心機 冷凍離心機 生物顯微鏡 金相顯微鏡 標準物質 生物試劑
